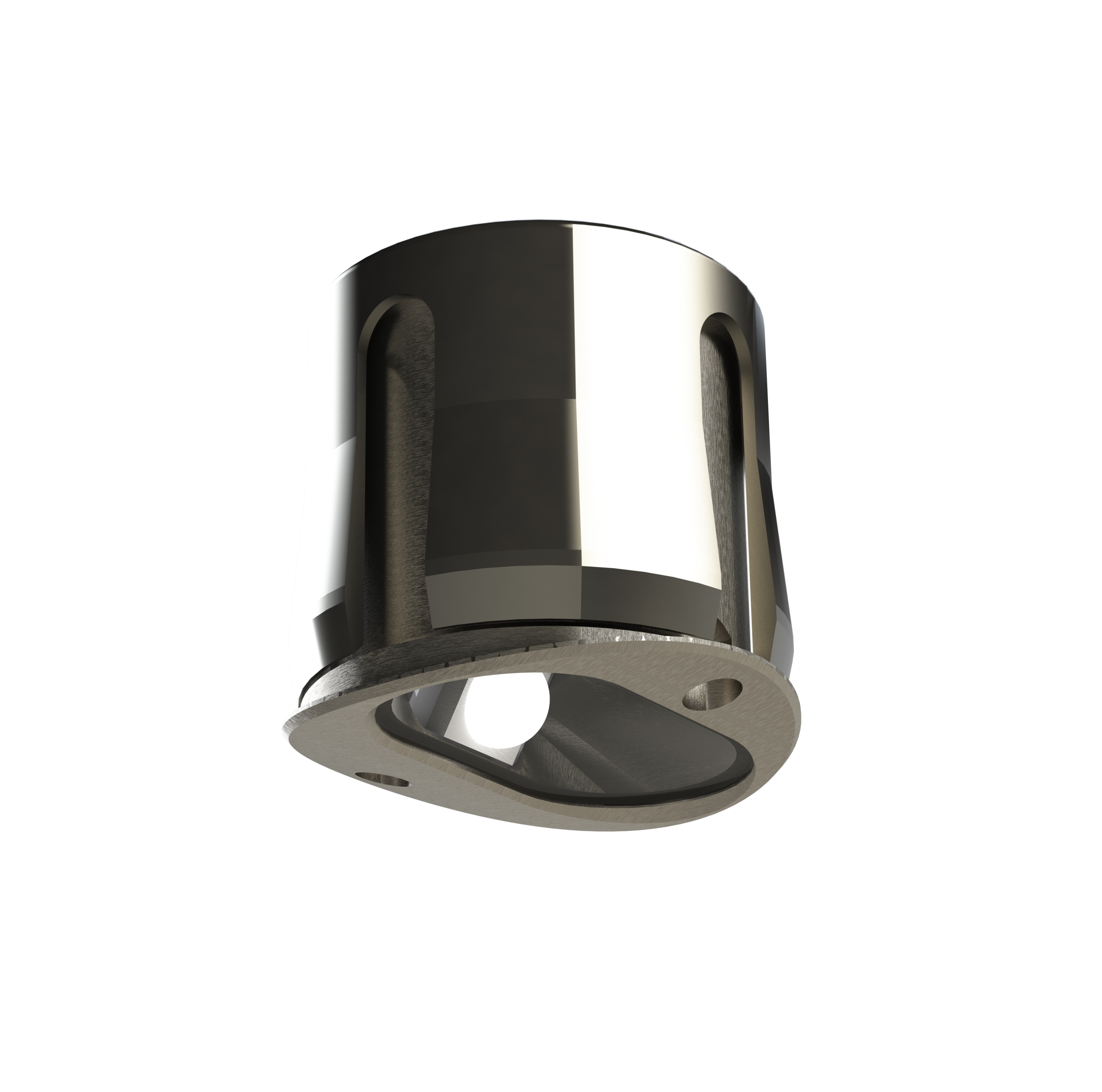

SNAP Uni 2.0
Overview
Planet LED Puck SNAP Uni 2.0 is the next revolution in integrated lighting, and uniformity performance is here. SNAP Uni is a completely redesigned and optimised SNAP luminaire for superior beam and glare control. Now providing up to double the performance in uniformity.
SNAP Uni 2.0 is the perfect balance of superior beam control and maximum uniformity.
It’s everything we believe handrail lighting should be, and more.
Specifications
TECHNICAL
1.4W / 500mA / 2.8Vf
Up to 35 Snaps per driver
L90 B10 >100,000 hours
3 STEP MACADAM ELLIPSE
LUMENS
4000K / 80CRI – 189lm
DISTRIBUTION
Elliptical Asymmetric 65°
MATERIAL
316 Stainless Steel
Electropolished / Raw Brass/ RAL Finishing
DIMENSIONS
16mm Ø x 15mm overall 0.016kg
INSTALLATION SURFACE
< min. 1.5mm Wall Thickness
< min. Ø35mm Rail (CURVED FACE ONLY)
AMBIENT OPERATING
CONDITIONS
min. -40° / max. 55°
PROTECTION CLASS
IK10 / IP65
(IP68 option)
ELECTRICAL
Coolsplice Connector

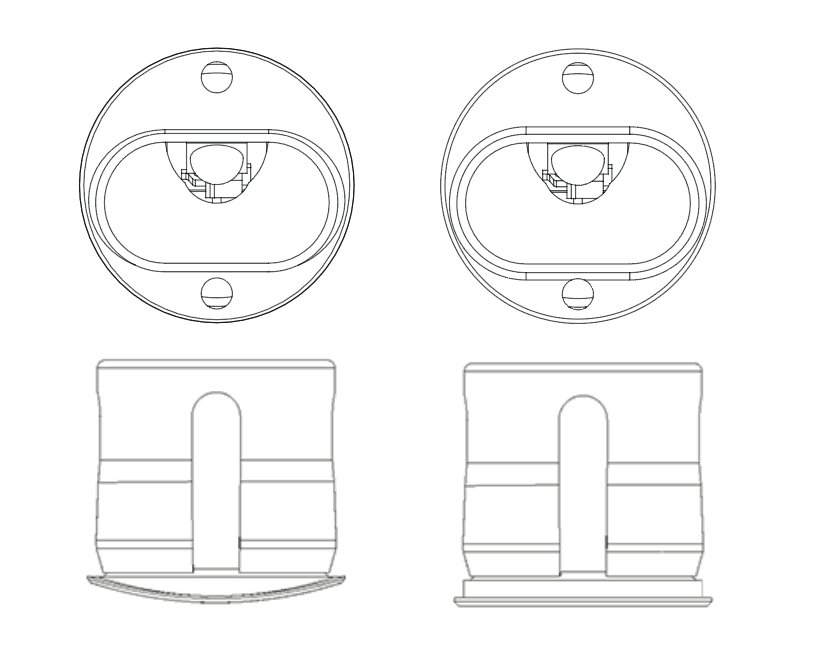

COUNTERBORE
(Counterbore is required for a flush finish)
< Ø16 mm x 0.5 mm (Flat Face)
< Ø16 mm x 1.6 mm (Curved Face)
< Drill Jig used to achieve a correctly prepared counterbore
HOLE SIZE
Ø15 mm (Counterbore is required for a flush finish)
CONTROL
1-10 v | DALI | DMX | Casambi | BasicDIM Wireless
Lighting Options
1800/2200K / 2700K / 3000K / 3500K / 4000K / 5000K / 6500K colour temperature
CRI 70+ / 80+ / 90+
Colours – Royal blue, blue, green, PC amber, amber, red-orange, red, photo red, far red.
> Borosilicate IP67 (Option)
> IP68
> Zero Glare Coating
*For more detailed information, download the product Datasheet
Ideal For

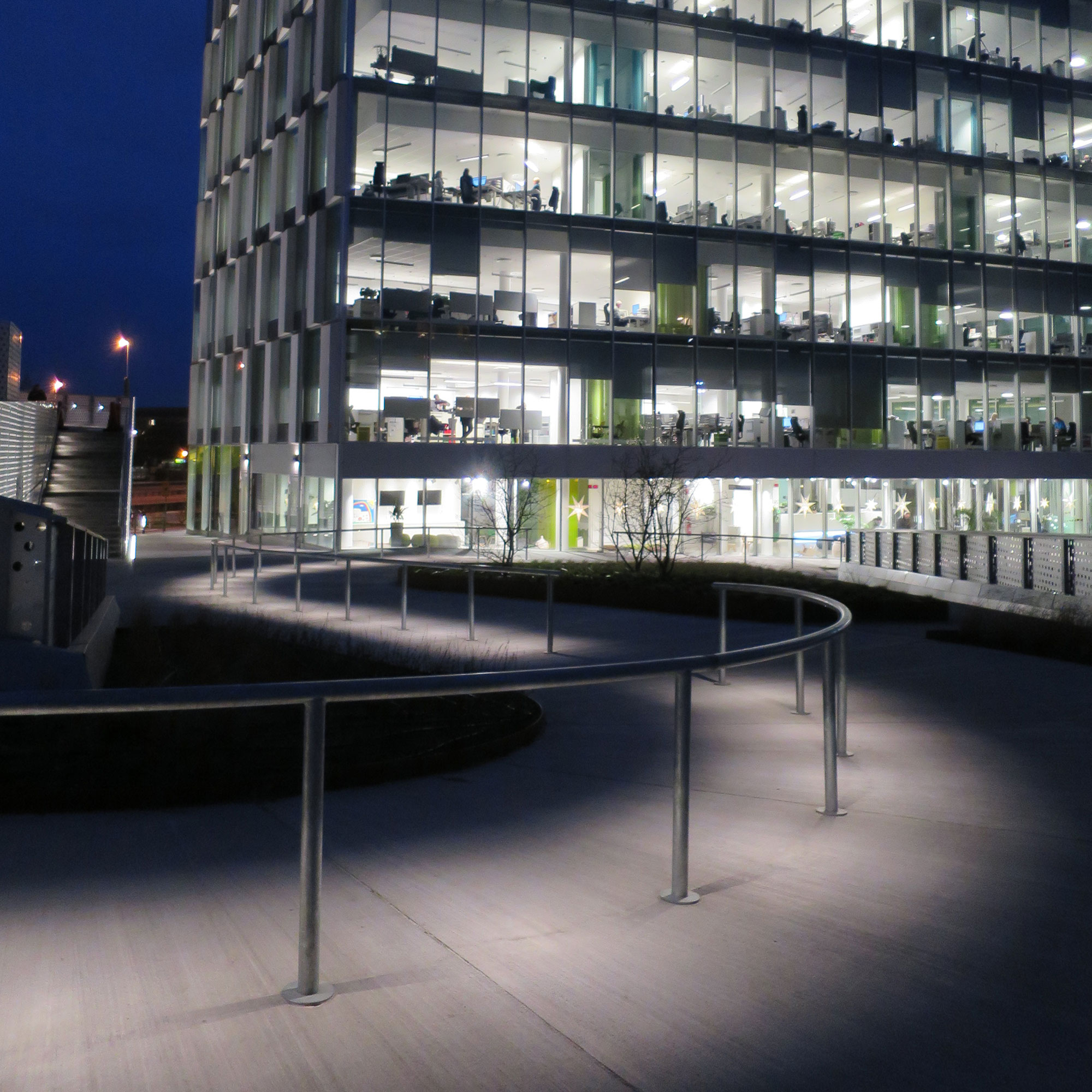

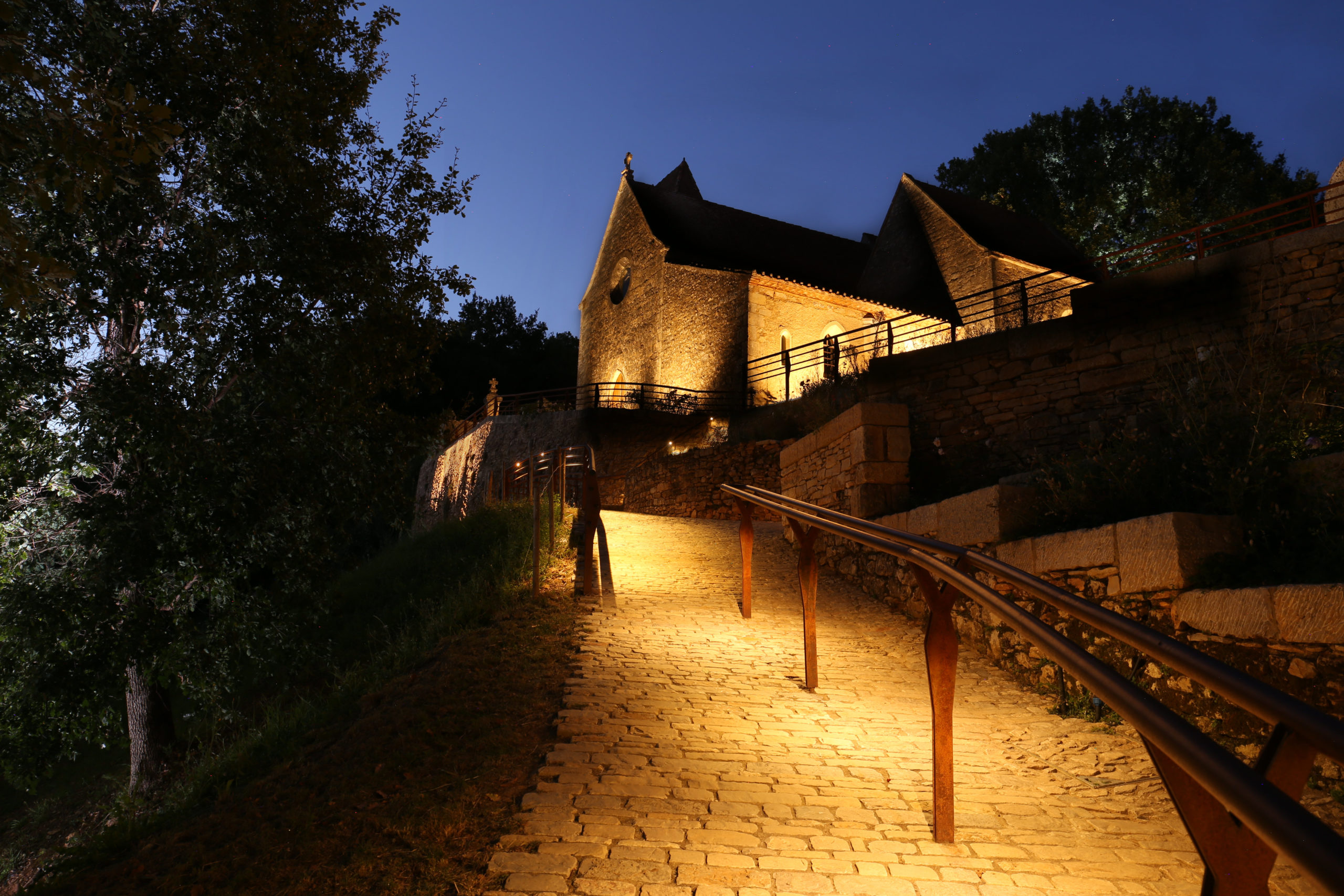

- Handrail Lighting
- Interior Lighting
- Retail
- Display Cases
- Galleries & Museums
