Overview

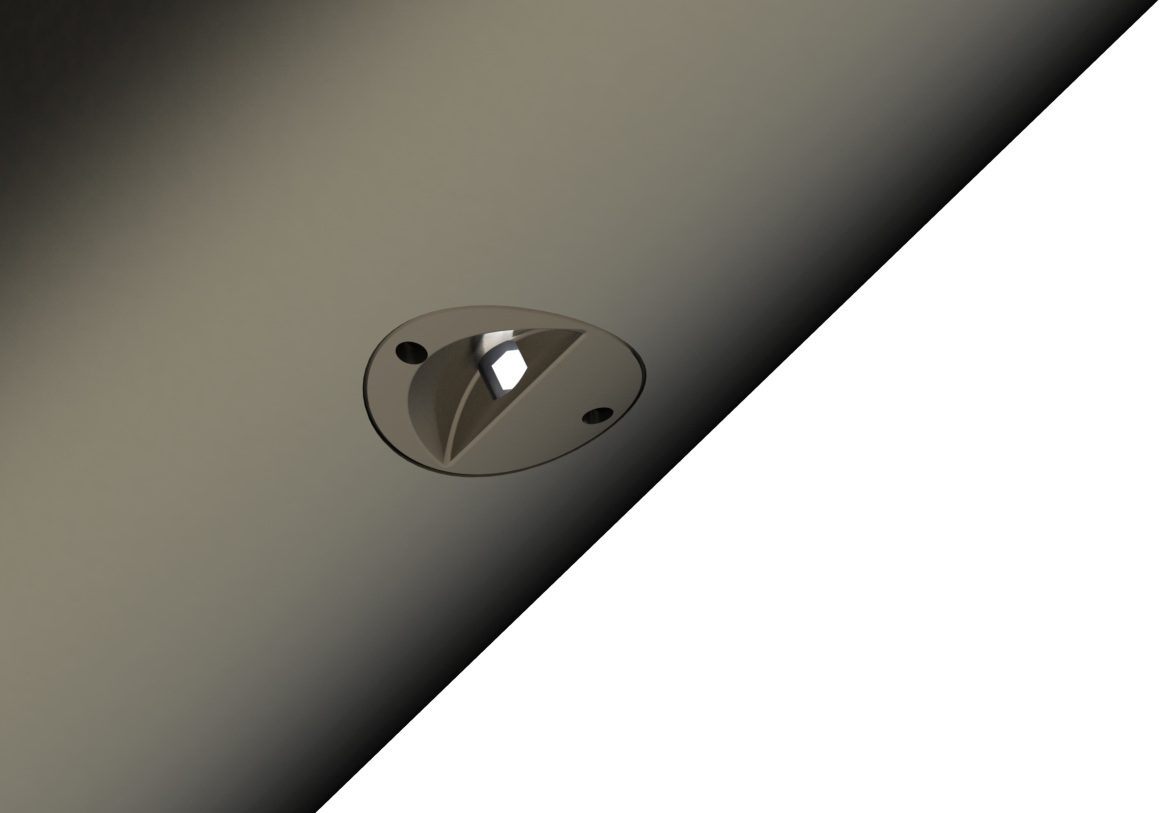

Planet LED Puck SNAP Uni is the next revolution in integrated lighting and uniformity performance is here. Snap UNI is a completely redesigned and optimised Snap luminaire for superior beam and glare control. Now providing up to double the performance in uniformity.
Snap UNI is the perfect balance of superior beam control and maximum uniformity.
It’s everything we believe handrail lighting should be, and more.
Specifications
TECHNICAL
1.4W / 500mA / 2.8Vf
Up to 35 Snaps per driver
L90 B10 >100,000 hours
3 STEP MACADAM ELLIPSE
LUMENS
135lm (3000k)
144lm (4000k)
DISTRIBUTION
Elliptical Asymmetric 75°
MATERIAL OPTIONS
316 Stainless Steel
Electropolished / Raw Brass/ RAL Finishing

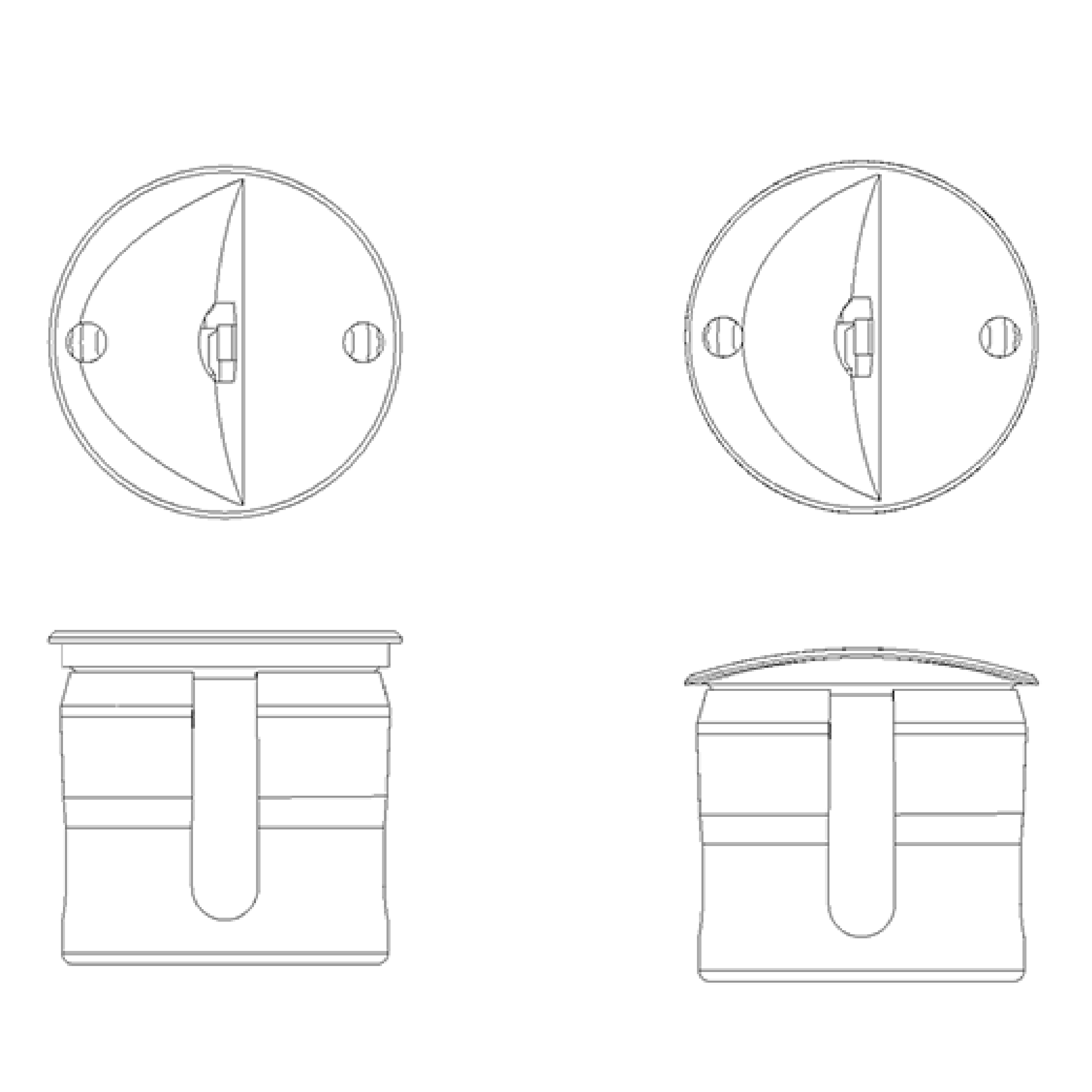

DIMENSIONS
SNAP: 16mm Ø x 15mm overall 0.016kg
SOLO: 16mm Ø x 28mm overall 0.032kg
INSTALLATION SURFACE
AMBIENT OPERATING
CONDITIONS
min. -40° / max. 55°
PROTECTION CLASS
IK10 / IP65
(IP68 option)
ELECTRICAL
Coolsplice Connector
COUNTERBORE
(Required for a flush finish)
Ø16 mm x 0.5 mm (Flat Face)
Ø16 mm x 1.6 mm (Curved Face)
Drill Jig used to achieve correctly prepared counterbore
HOLE SIZE
Ø15 mm
CONTROL
1-10 v | DALI | DMX | Casambi | BasicDIM Wireless
Lighting Options
2200K / 2700K / 3000K / 3500K / 4000K / 5000K / 6500K colour temperature
CRI 80+ / 90+
Violet, royal blue, blue, PC blue, cyan, PC cyan, green, PC lime, PC mint, PC yellow, amber, PC amber, red‑orange, PC red‑orange, red, PC red, and photo red.
*For more detailed information, download the product Datasheet
Ideal For
- Handrail Lighting
- Interior Lighting
- Retail
- Display Cases
- Galleries & Museums
