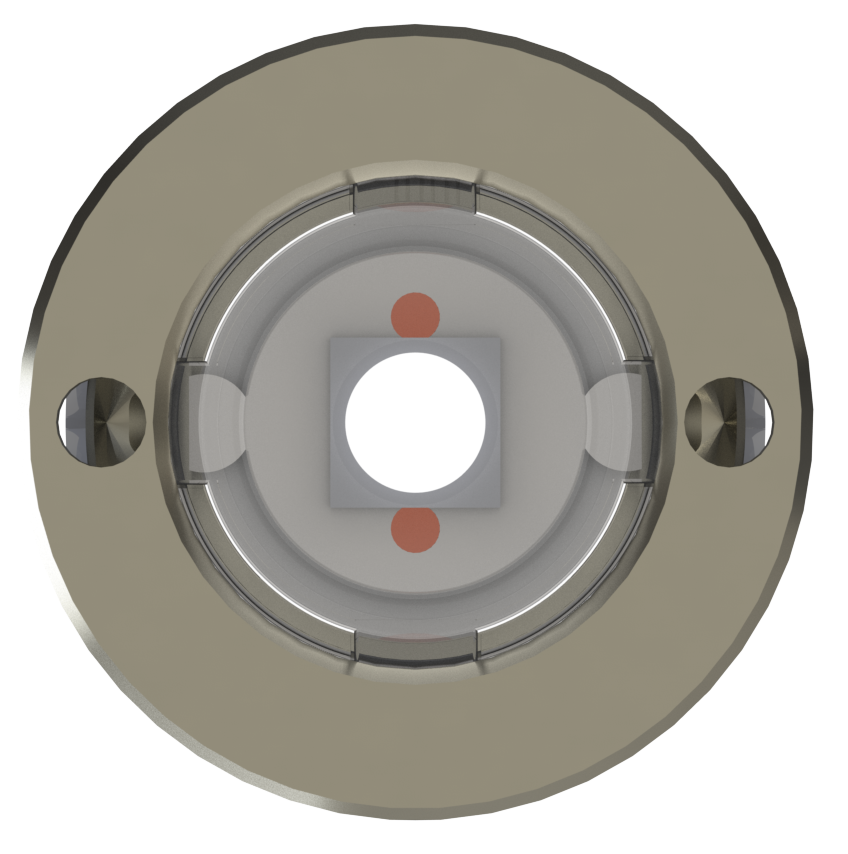

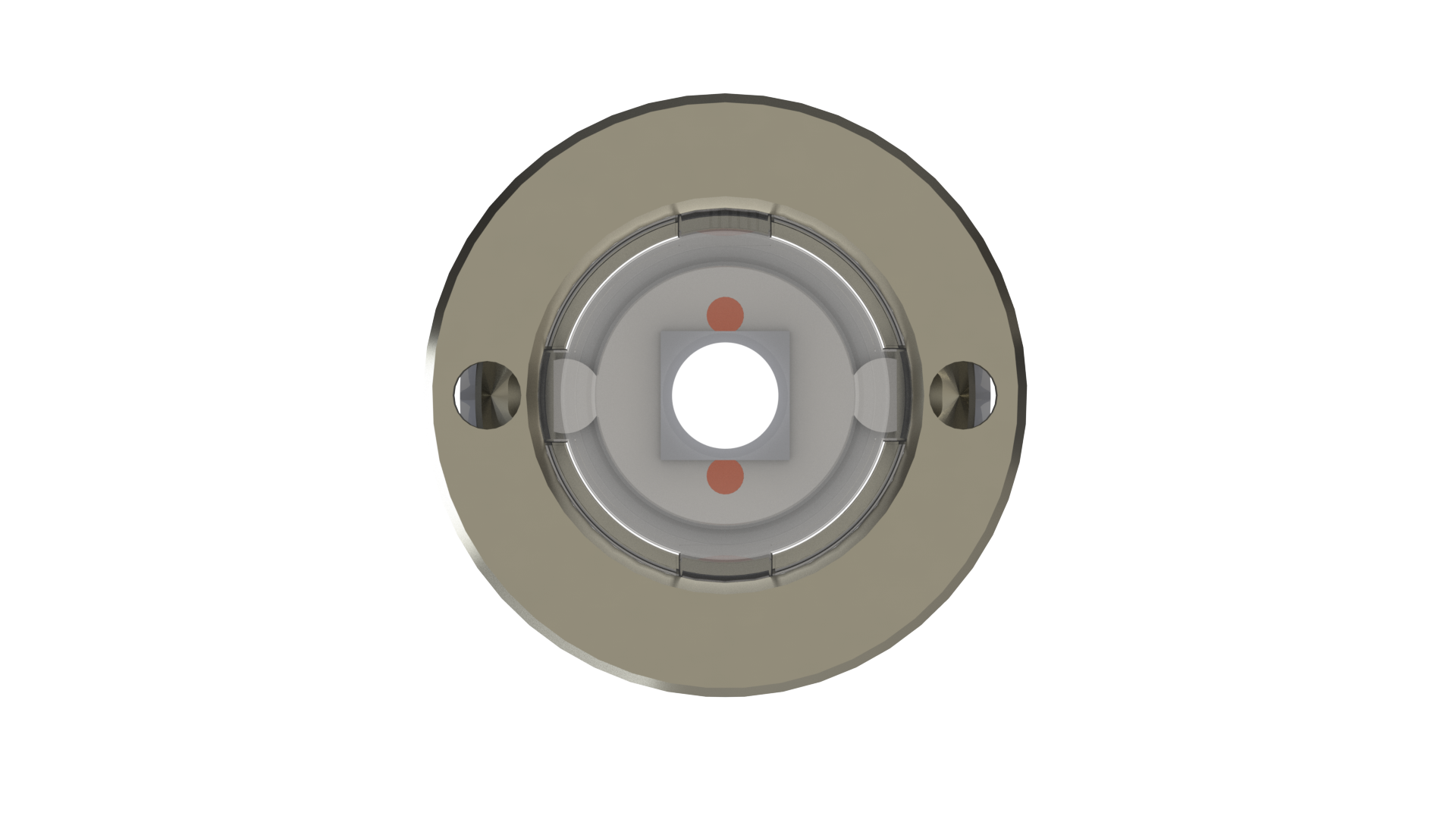

SNAP Lens
Overview
An integrated Planet LED Puck SNAP Lens with a circular beam is available in a range of angles. SNAP Lens is small, discreet, and its exceptionally smooth cut-off / roll-off is perfect for highlighting architectural features and controlling atmospheric lighting. Applications include jewellery, hotels, artwork, and architecture.
SNAP Lens has a circular distribution with an exceptionally smooth roll-off, perfect for highlighting features and controlling atmospheric lighting. SNAP Lens is available across our range of LED Puck luminaires and is available in a narrow, medium, or wide beam.
Specifications
POWER
1.4 W / 500 mA / 2.8 Vf
Up to 35 Snaps per driver
L90 B10 >100,000 hours
3 STEP MACADAM ELLIPSE
LUMENS
Lens Narrow (4000K): 170lm
Lens Medium (4000K): 176lm
Lens Wide (4000K): 152lm
DISTRIBUTION
Circular
MATERIAL OPTIONS
316 Stainless Steel
Electropolished / Raw Brass/ RAL Finishing
DIMENSIONS
SNAP: 16mm Ø x 15mm overall 0.016kg
SOLO: 16mm Ø x 28mm overall 0.032kg
INSTALLATION SURFACE
min. 1.5 mm Wall Thickness
AMBIENT OPERATING
CONDITIONS
min. -40° / max. 55°
PROTECTION CLASS
IP67 / IK10
IP68 from rear
ELECTRICAL
Coolsplice Connector
HOLE SIZE
Ø15 mm
COUNTERBORE
(Required for a flush finish)
Ø16 mm x 0.5 mm
min. 2mm wall thickness
Drill Jig used to achieve correctly prepared counterbore
CONTROL
PMMA | 1-10 v | DALI | DMX | Casambi | BasicDIM Wireless
Beam Angles
Lighting Options
2200K / 2700K / 3000K / 3500K / 4000K / 5000K / 6500K colour temperature
CRI 80+ / 90+
Photo Red / Violet / Royal Blue / Blue / Cyan / Green / Amber / Red-Orange / Red / Phosphor Blue / Phosphor Cyan / Phosphor Lime / Phosphor Amber / Phosphor Red-Orange / Phosphor Red / Phosphor Mint / Phosphor Yellow saturated colours
23° (Narrow) / 42° (Medium) / 80° (Wide) optics
3 Macadam steps
*For more detailed information, download the product Datasheet
Ideal For
- Display Cases

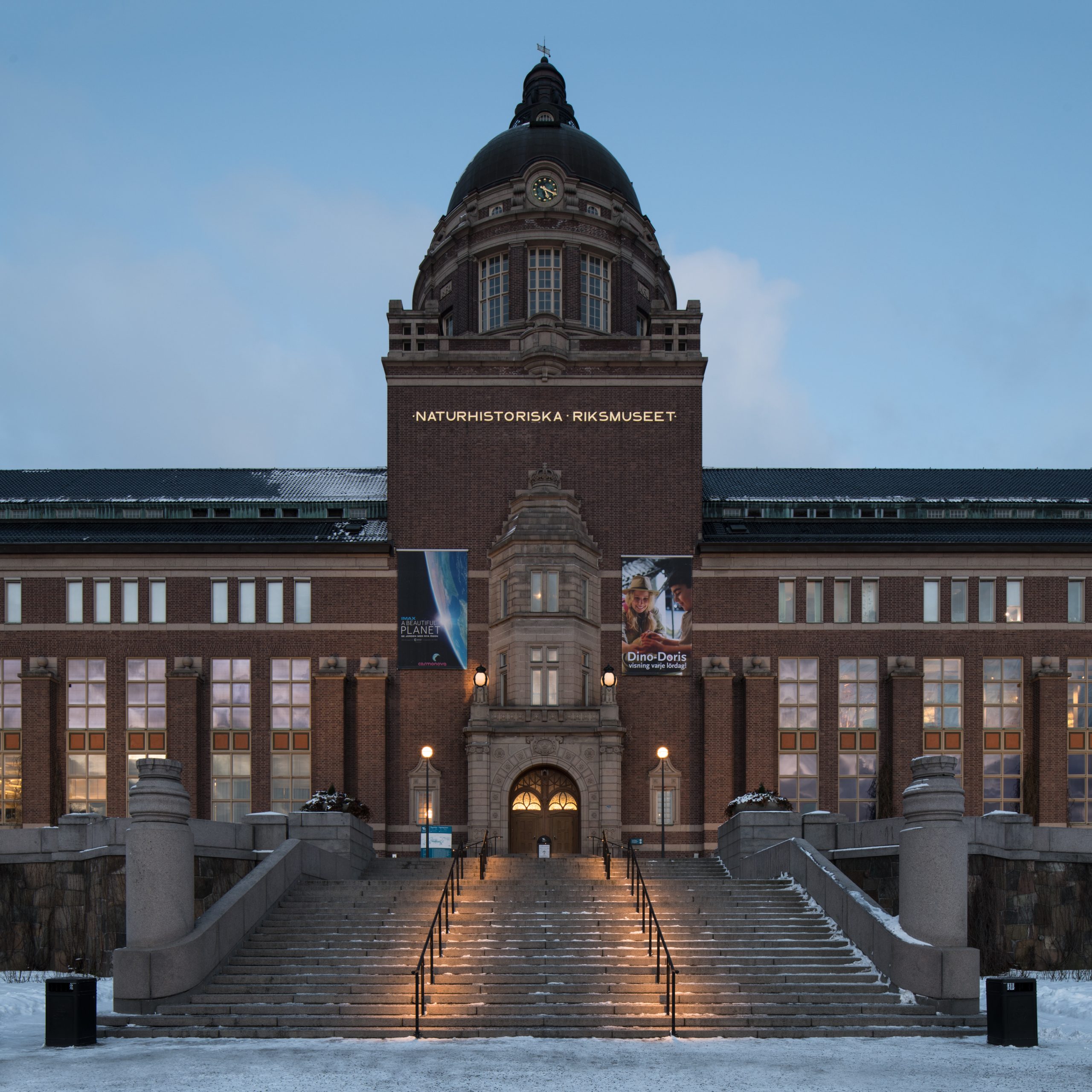

- Galleries & Museums
- Retail
- Interior Lighting

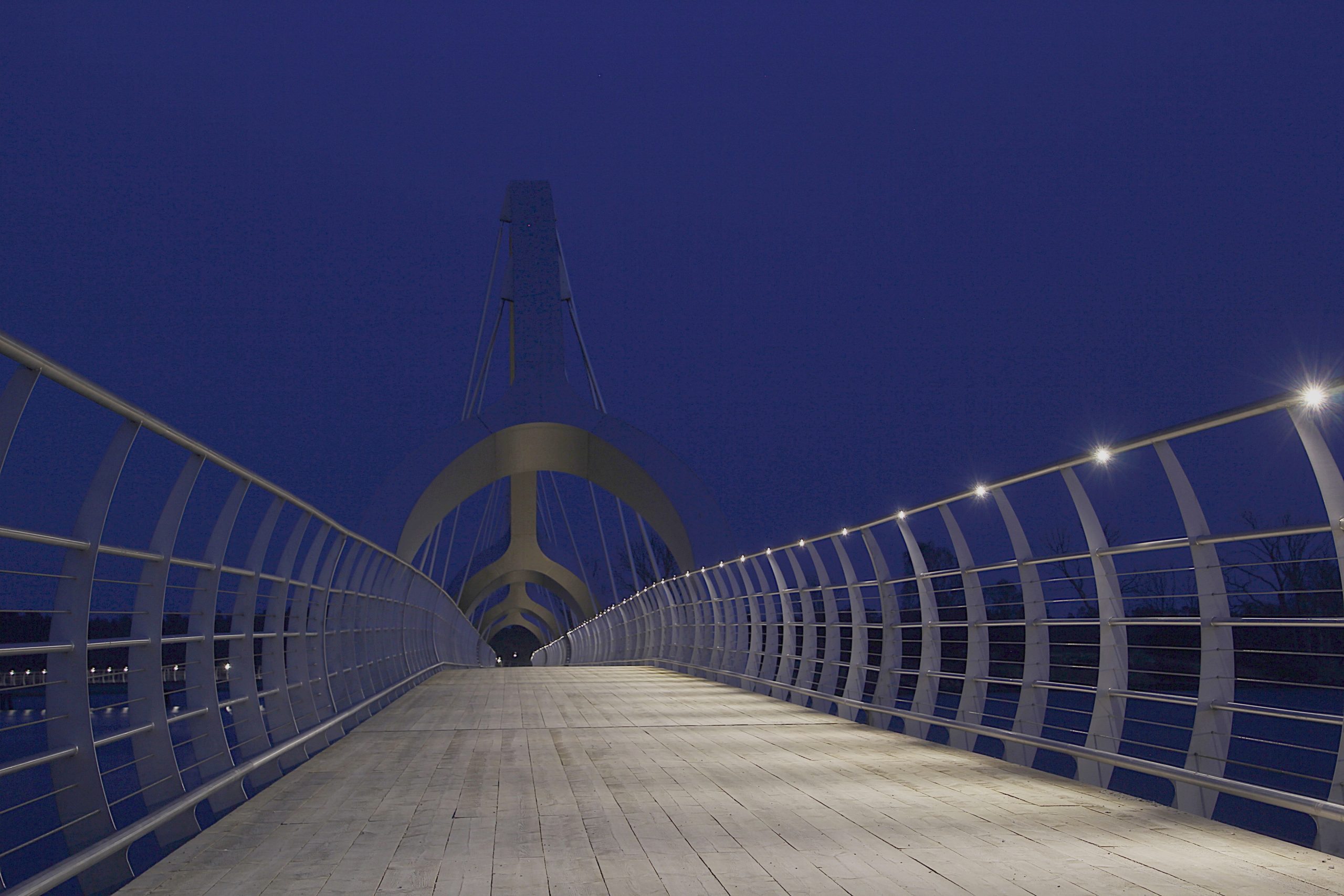

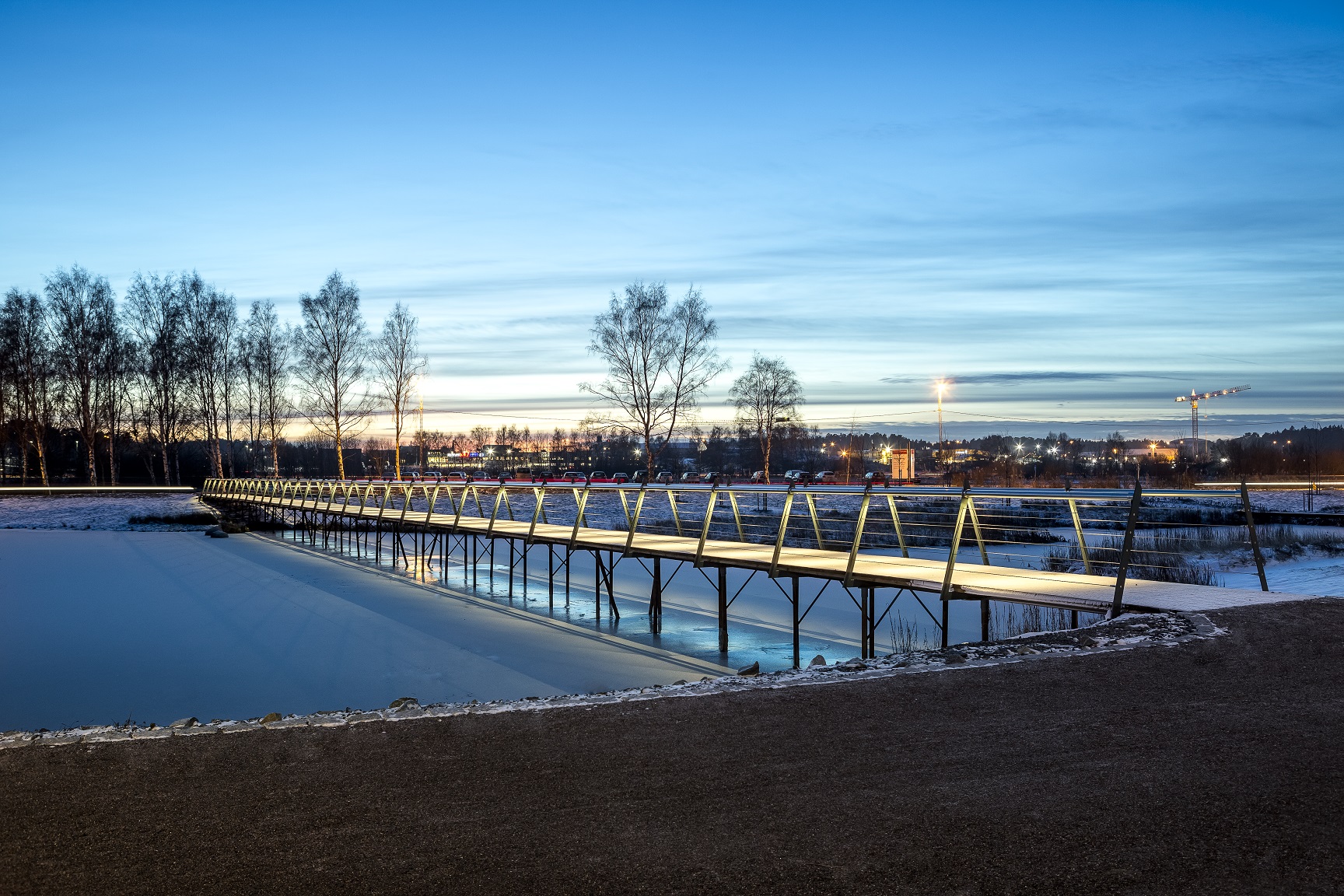

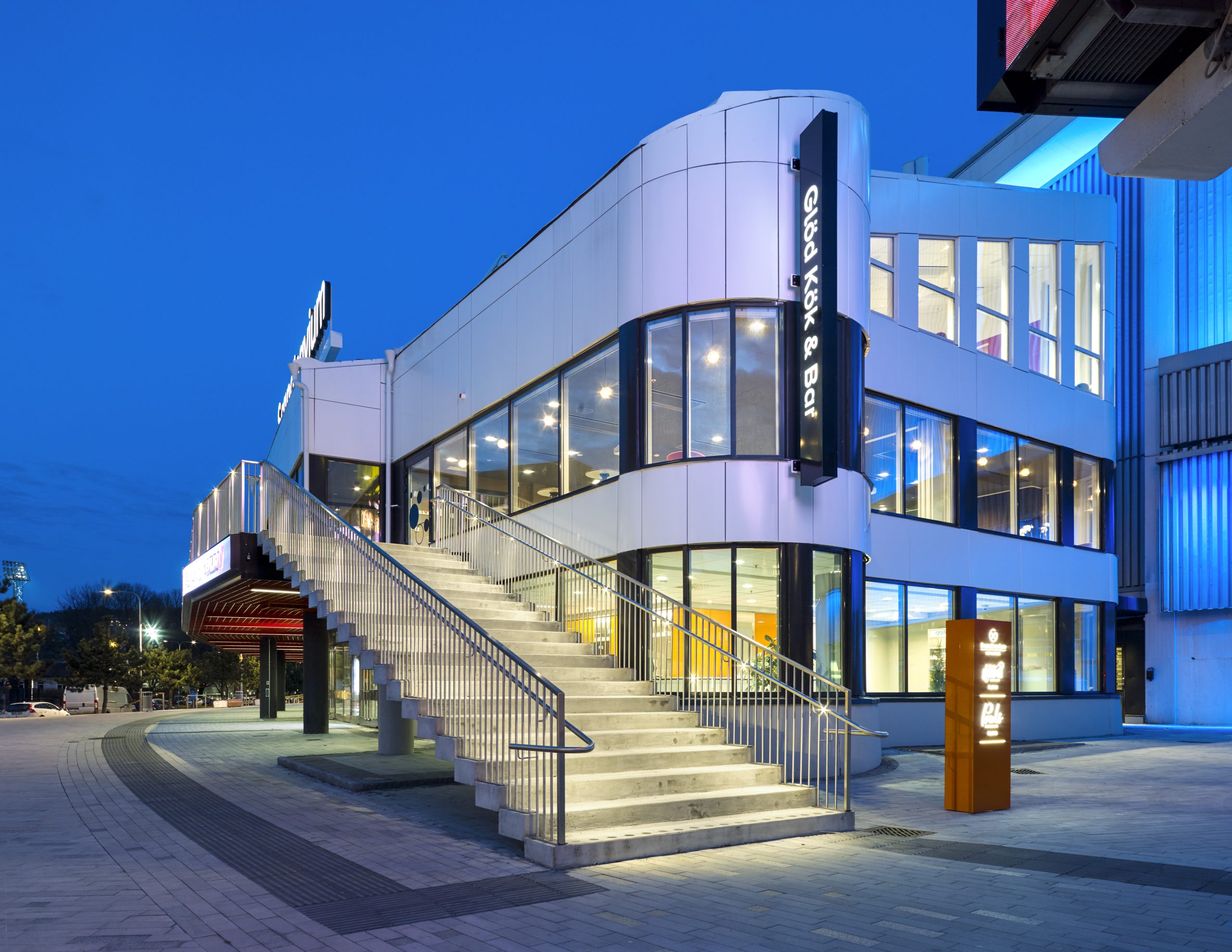

- Handrail Lighting
