Planet LED Puck SNAP Aperture is handrail lighting without any unwanted back spill or glare. The ultimate in asymmetric beam control, SNAP Aperture’s sharp cut off and high performance makes it perfect for positioning discreetly beneath the handrail while providing maximum reach and minimum spill. Ideal for maximum control of uniformity.

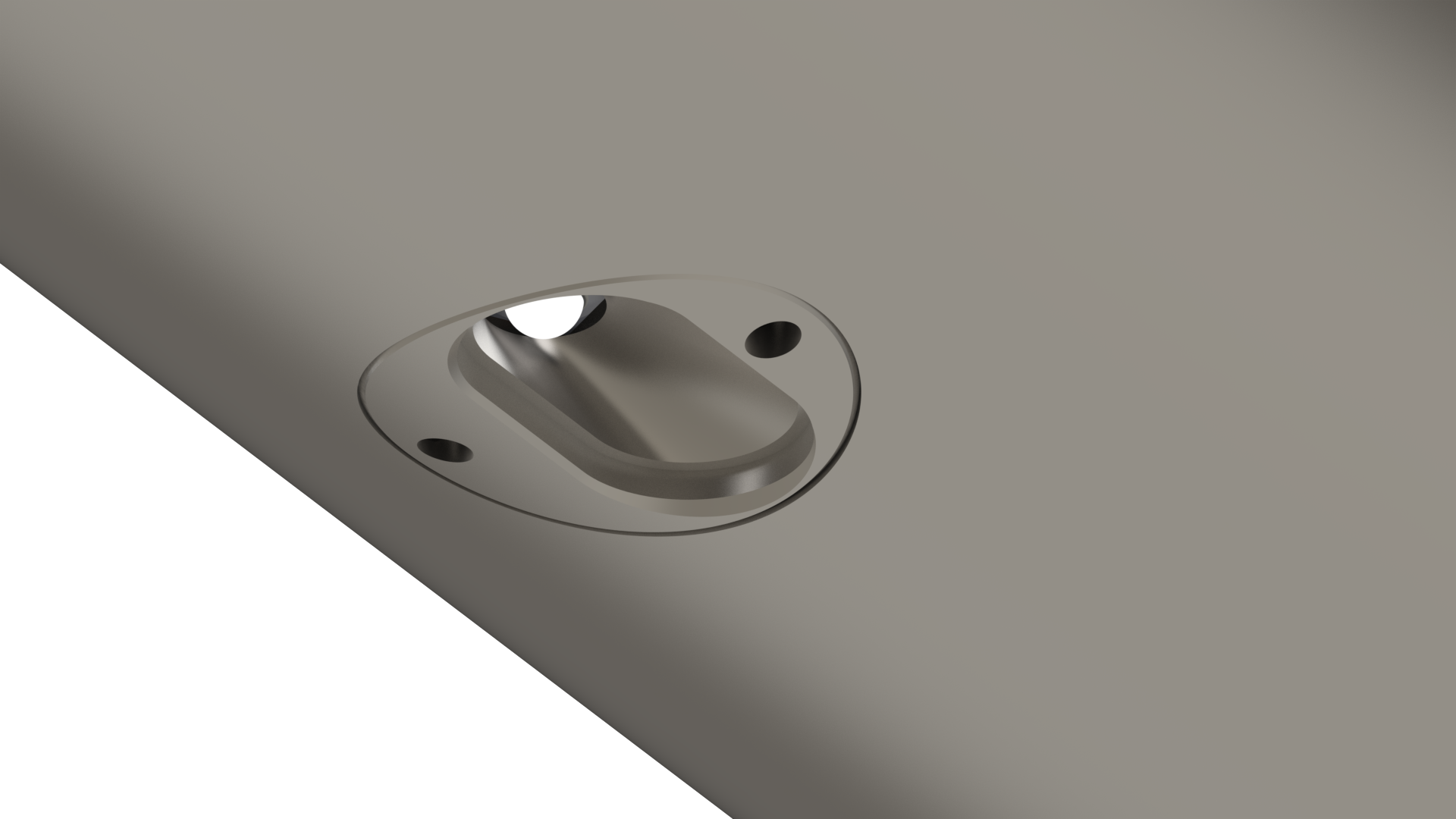

SNAP Aperture has an elliptical asymmetric distribution. Designed for insertion at 0-10 degrees from the vertical axis of the handrail underside. The asymmetric beam illuminates the path but keeps the light source out of sight. SNAP Aperture is available in a range of standard distributions and special angles on request.
Specifications
TECHNICAL
1.4W / 500mA / 2.8Vf
Up to 35 Snaps per driver
L90 B10 >100,000 hours
3 STEP MACADAM ELLIPSE
LUMENS
4000K – 144lm
DISTRIBUTION
Elliptical Asymmetric 70°
MATERIAL OPTIONS
316 Stainless Steel
Electropolished / Raw Brass/ RAL Finishing
DIMENSIONS
SNAP: 16mm Ø x 15mm overall 0.016kg
SOLO: 16mm Ø x 28mm overall 0.032kg
INSTALLATION SURFACE
AMBIENT OPERATING
CONDITIONS
min. -40° / max. 55°
PROTECTION CLASS
IK10 / IP65
(IP68 option)
ELECTRICAL
Coolsplice Connector
COUNTERBORE
(Required for a flush finish)
Ø16 mm x 0.5 mm (Flat Face)
Ø16 mm x 1.6 mm (Curved Face)
Drill Jig used to achieve correctly prepared counterbore
HOLE SIZE
Ø15 mm
CONTROL
1-10 v | DALI | DMX | Casambi | BasicDIM Wireless
Lighting Options
2200K / 2700K / 3000K / 3500K / 4000K / 5000K / 6500K colour temperature
CRI 80+ / 90+
Violet, royal blue, blue, PC blue, cyan, PC cyan, green, PC lime, PC mint, PC yellow, amber, PC amber, red‑orange, PC red‑orange, red, PC red, and photo red.
*For more detailed information, download the product Datasheet
Ideal For
- Handrail Lighting
- Interior Lighting
- Retail
- Display Cases
- Galleries & Museums
