SNAP Wide
Architectural / Products / LED Puck / Snap
SNAP Wide
Overview

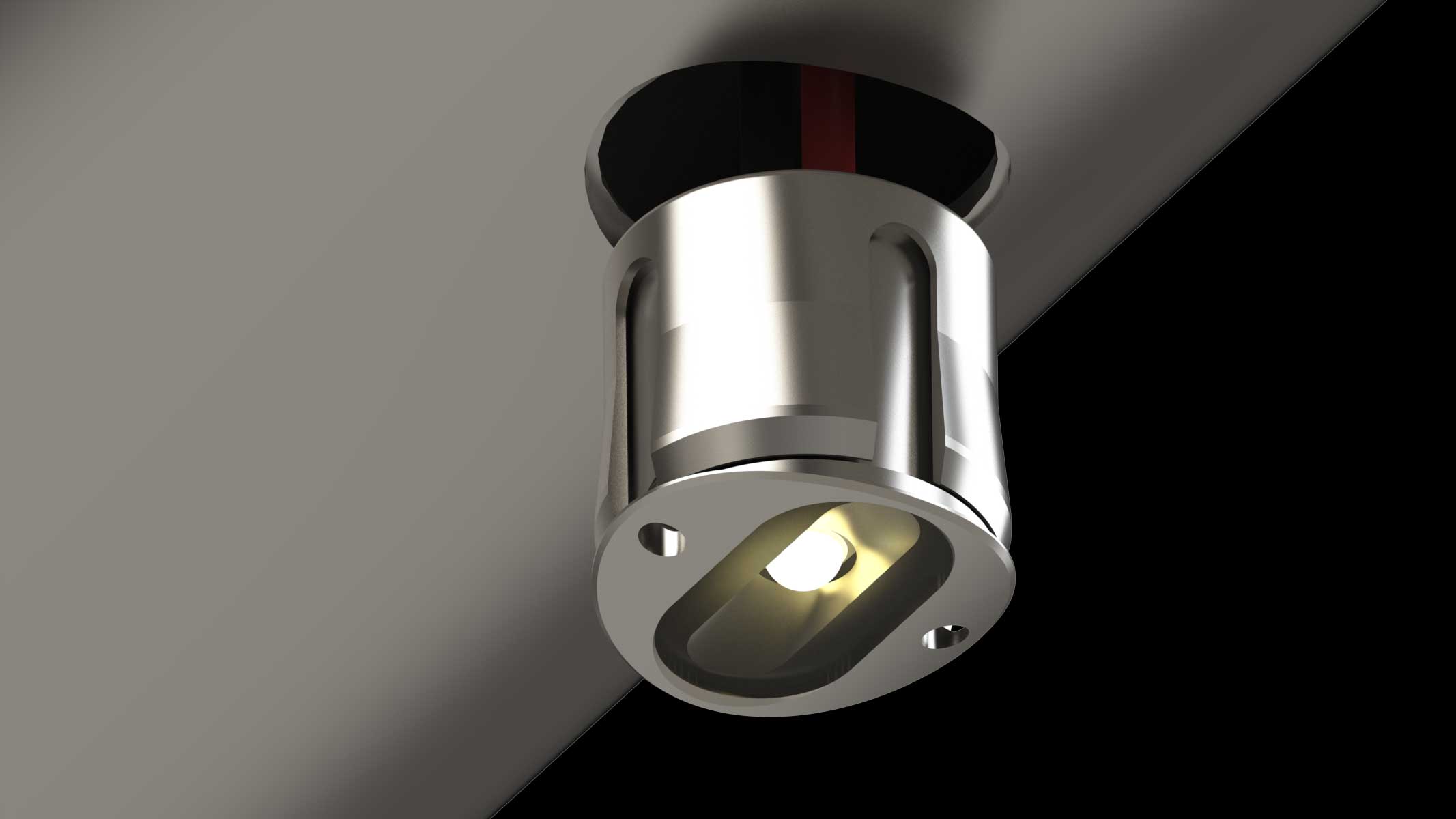

Planet LED Puck SNAP Wide available in a range of circular beam angles listed below. SNAP Wide has an exceptionally smooth roll-off and is perfect for highlighting architectural features and controlling atmospheric lighting.
SNAP Wide has a beam pattern optimised for mid-rail and widely spaced lights. With a suitable driver, SNAP Wide is perfect for cost-effective emergency lighting and long-distance applications such as metro and rail. Originally developed for long-distance and emergency lighting applications such as road or rail tunnels, SNAP Wide has a beam pattern (very wide beam) that is optimised for the widest spacing between light points — up to 5 metres — without compromising uniformity.
Specifications
TECHNICAL
1.4W / 500mA / 2.8Vf Up to 35 Snaps per driver
L90 B10 >100,000 hours
LUMENS
3000K – 172m / 4000K – 182lm
DISTRIBUTION
Wide Elliptical 105°
MATERIAL OPTIONS
316 Stainless Steel
Electropolished / Raw Brass/ RAL Finishing
DIMENSIONS
SNAP: 16mm Ø x 15mm overall 0.016kg
SOLO: 16mm Ø x 28mm overall 0.032kg
INSTALLATION SURFACE
AMBIENT OPERATING
CONDITIONS
min. -40° / max. 55°
PROTECTION CLASS
IK10 / IP67
(IP68 option)
ELECTRICAL
Coolsplice Connector
COUNTERBORE
(Required for a flush finish)
Ø16 mm x 0.5 mm (Flat Face)
Ø16 mm x 1.6 mm (Curved Face)
Drill Jig used to achieve correctly prepared counterbore
HOLE SIZE
Ø15 mm
CONTROL
1-10 v | DALI | DMX | Casambi | BasicDIM Wireless
Lighting Options
2200K / 2700K / 3000K / 3500K / 4000K / 5000K / 6500K colour temperature
CRI 80+ / 90+
Violet, royal blue, blue, PC blue, cyan, PC cyan, green, PC lime, PC mint, PC yellow, amber, PC amber, red‑orange, PC red‑orange, red, PC red, and photo red.
*For more detailed information, adownload the product Datasheet
Ideal For

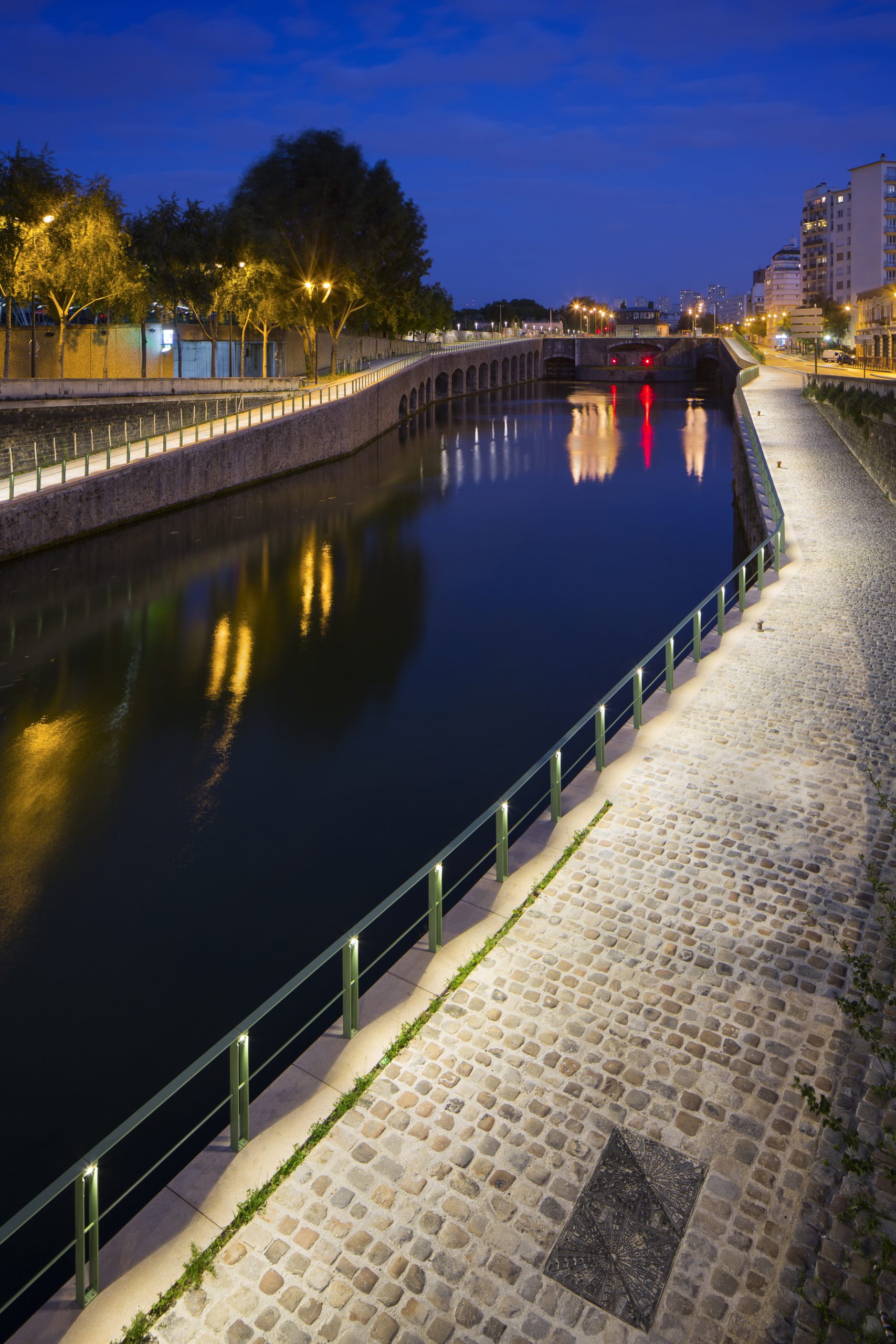

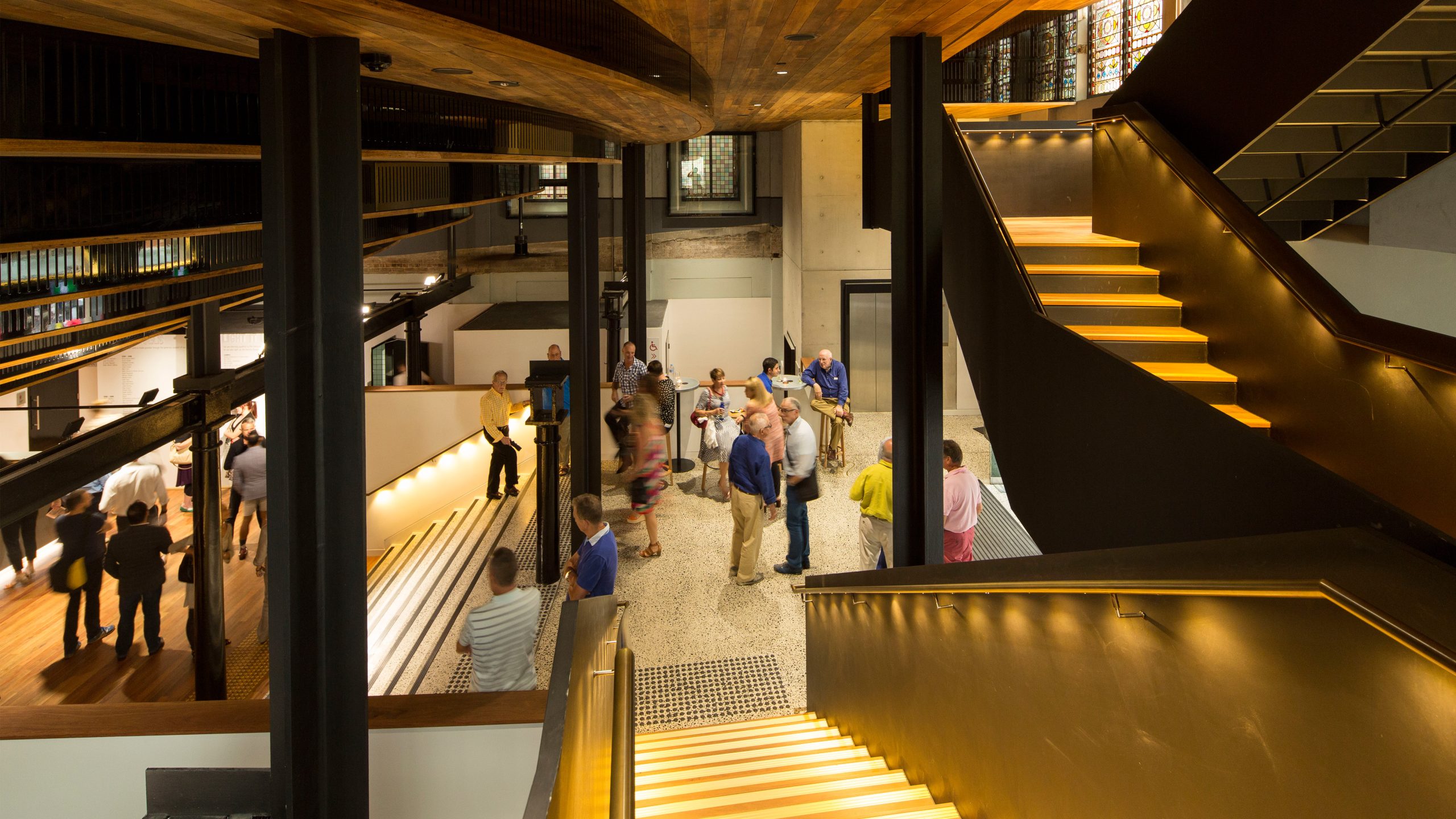

- Handrail Lighting
- Interior Lighting
- Retail
- Display Cases
- Galleries & Museums
