SNAP Standard
Architectural / Products / LED Puck / Snap
SNAP Standard
Overview

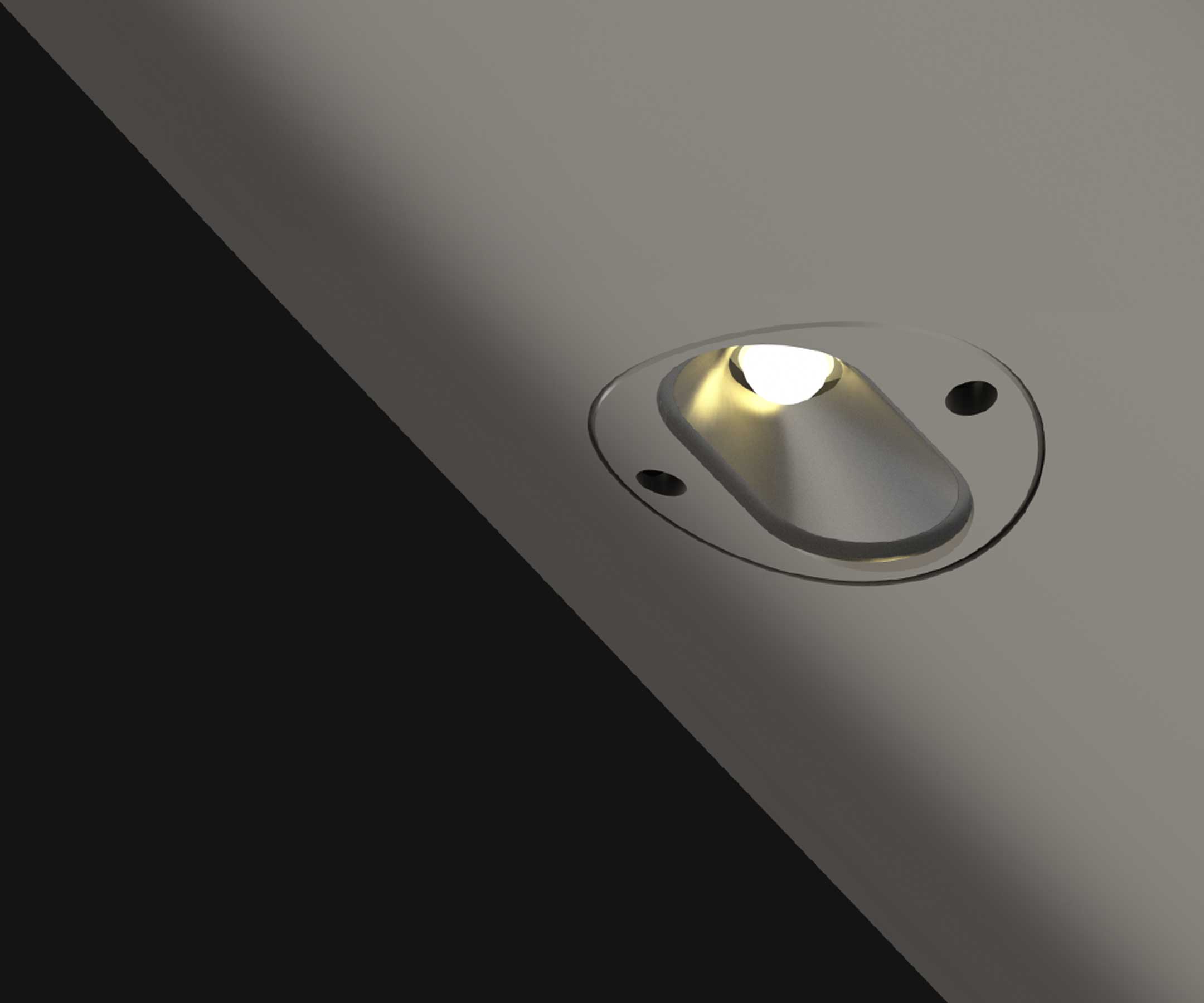

Planet LED Puck SNAP Standard is the leading series of integrated LED modules designed specifically for handrails. Engineered for exceptional efficiency, durability, and photometric performance, Snap Standard is both compact and impact resistant. It features a patented collapsible shell design that allows for a quick and easy snap-in installation, resulting in a secure and discreetly flush finish. This solution offers versatile and elegant handrail lighting — all in a snap.
Specifications
TECHNICAL
1.4W / 500mA / 2.8Vf
L90 B10 >100,000 hours
3 STEP MACADAM ELLIPSE
LUMENS
3000K – 170lm / 4000K – 180lm
DISTRIBUTION
Elliptical Symmetric 70°
MATERIAL OPTIONS
316 Stainless Steel
Electropolished / Raw Brass/ RAL Finishing
DIMENSIONS
SNAP: 16mm Ø x 15mm overall 0.016kg
SOLO: 16mm Ø x 28mm overall 0.032kg
INSTALLATION SURFACE
AMBIENT OPERATING
CONDITIONS
min. -40° / max. 55°
PROTECTION CLASS
IK10 / IP65
(IP68 option)
ELECTRICAL
Coolsplice Connector
COUNTERBORE
(Required for a flush finish)
Ø16 mm x 0.5 mm (Flat Face)
Ø16 mm x 1.6 mm (Curved Face)
Drill Jig used to achieve correctly prepared counterbore
HOLE SIZE
Ø15 mm
CONTROL
1-10 v | DALI | DMX | Casambi | BasicDIM Wireless
Lighting Options
2200K / 2700K / 3000K / 3500K / 4000K / 5000K / 6500K colour temperature
CRI 80+ / 90+
Violet, royal blue, blue, PC blue, cyan, PC cyan, green, PC lime, PC mint, PC yellow, amber, PC amber, red‑orange, PC red‑orange, red, PC red, and photo red.
*For more detailed information, download the product Datasheet
Ideal For
- Handrail Lighting
- Interior Lighting
- Retail
- Display Cases
- Galleries & Museums
