SNAP Asymmetric
Overview

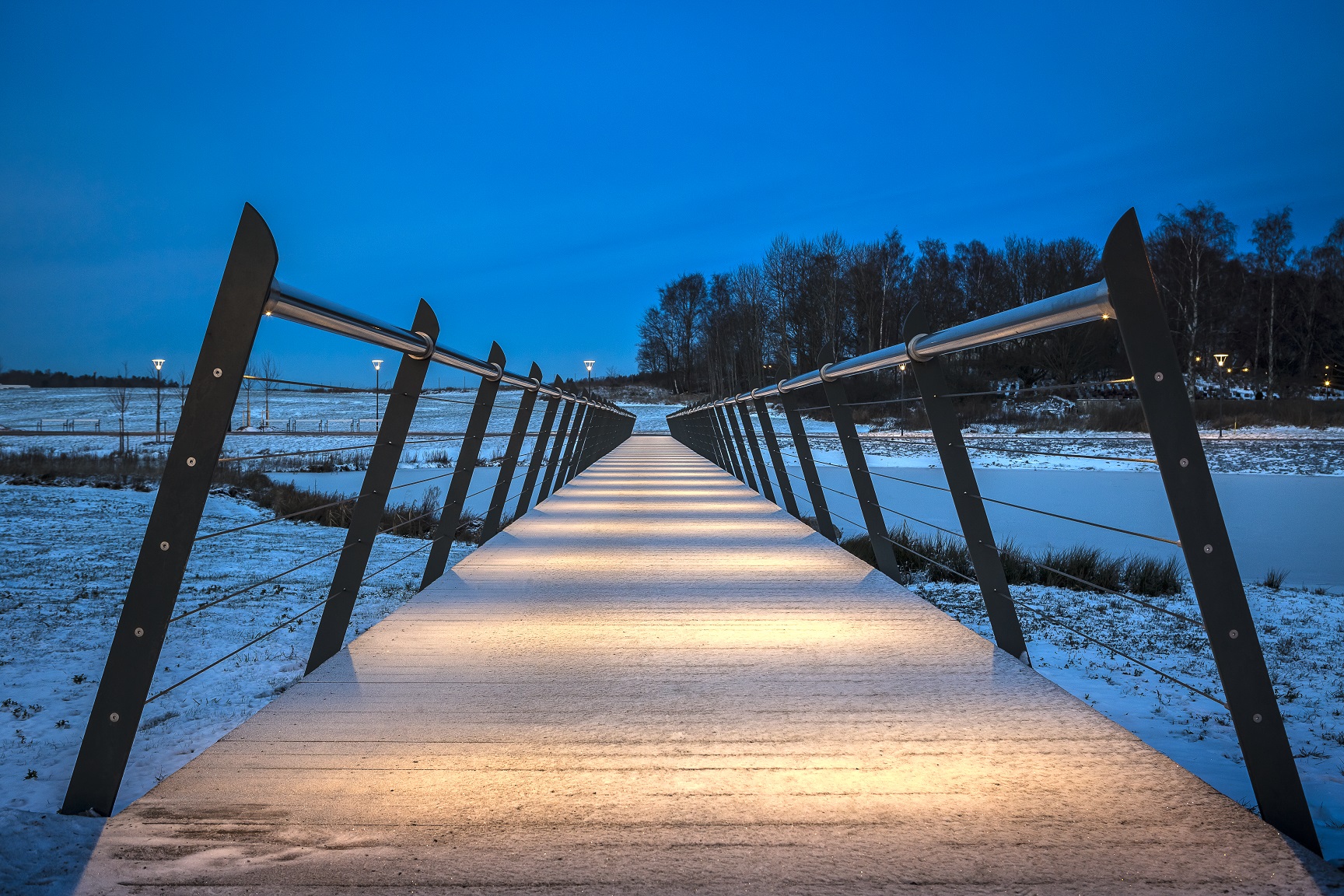

Planet LED Puck SNAP Asymmetric. Its unique beam illuminates the path, but keeps the light source out of sight.
Snap Asymmetric is the world-leading series of integrated LED modules for handrail. Designed for exceptional efficiency, durability and photometric performance. Compact and impact resistant, Snap also features a patented collapsible shell design for a quick, snap-in install. The result is a secure and discreetly flush finish. It’s versatile and elegant handrail lighting — in a snap.
Specifications
TECHNICAL
1.4W / 500mA / 2.8Vf Up to 35 Snaps per driver
L90 B10 >100,000 hours
3 STEP MACADAM ELLIPSE
DISTRIBUTION
Elliptical Asymmetric 75°
MATERIAL OPTIONS
316 Stainless Steel
Electropolished / Raw Brass/ RAL Finishing
DIMENSIONS
SNAP: 16mm Ø x 15mm overall 0.016kg
SOLO: 16mm Ø x 28mm overall 0.032kg
INSTALLATION SURFACE
AMBIENT OPERATING
CONDITIONS
min. -40° / max. 55°
PROTECTION CLASS
IK10 / IP65
(IP68 option)
ELECTRICAL
Coolsplice Connector
COUNTERBORE
(Required for a flush finish)
Ø16 mm x 0.5 mm (Flat Face)
Ø16 mm x 1.6 mm (Curved Face)
Drill Jig used to achieve correctly prepared counterbore
HOLE SIZE
Ø15 mm
CONTROL
1-10 v | DALI | DMX | Casambi | BasicDIM Wireless
Lighting Options
2200K / 2700K / 3000K / 3500K / 4000K / 5000K / 6500K colour temperature
CRI 80+ / 90+
Violet, royal blue, blue, PC blue, cyan, PC cyan, green, PC lime, PC mint, PC yellow, amber, PC amber, red‑orange, PC red‑orange, red, PC red, and photo red.
*For more detailed information, download the product Datasheet
Ideal For

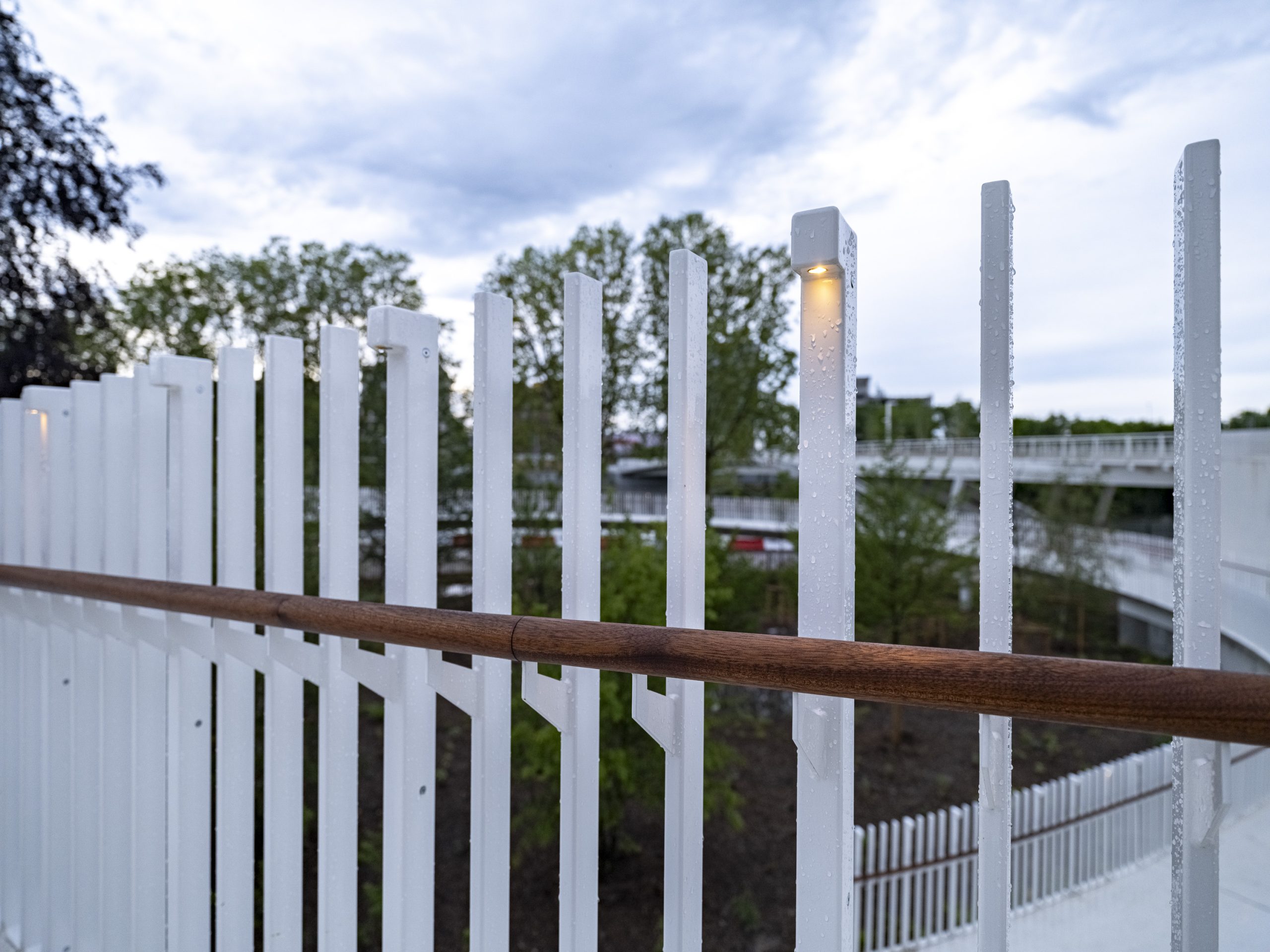

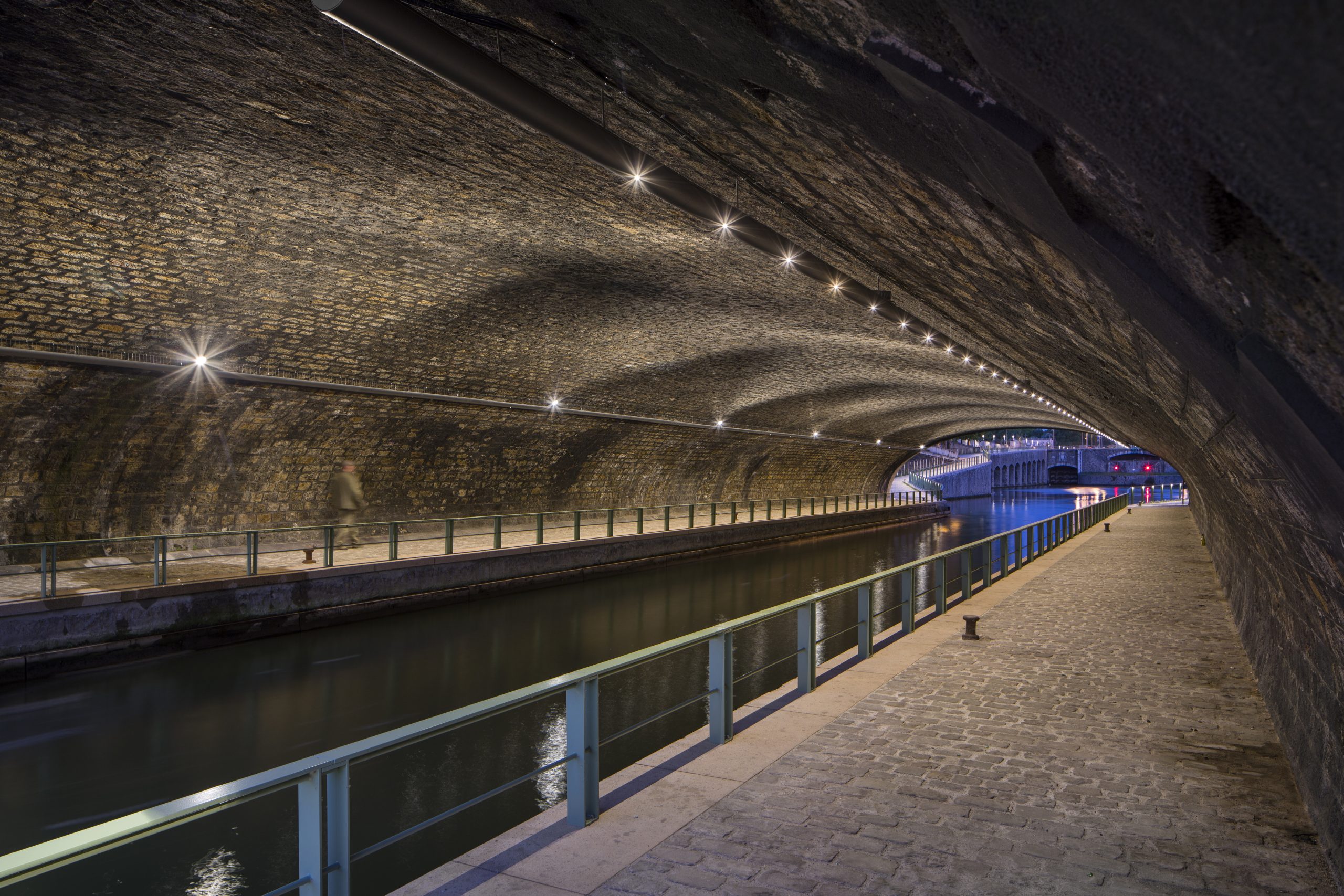

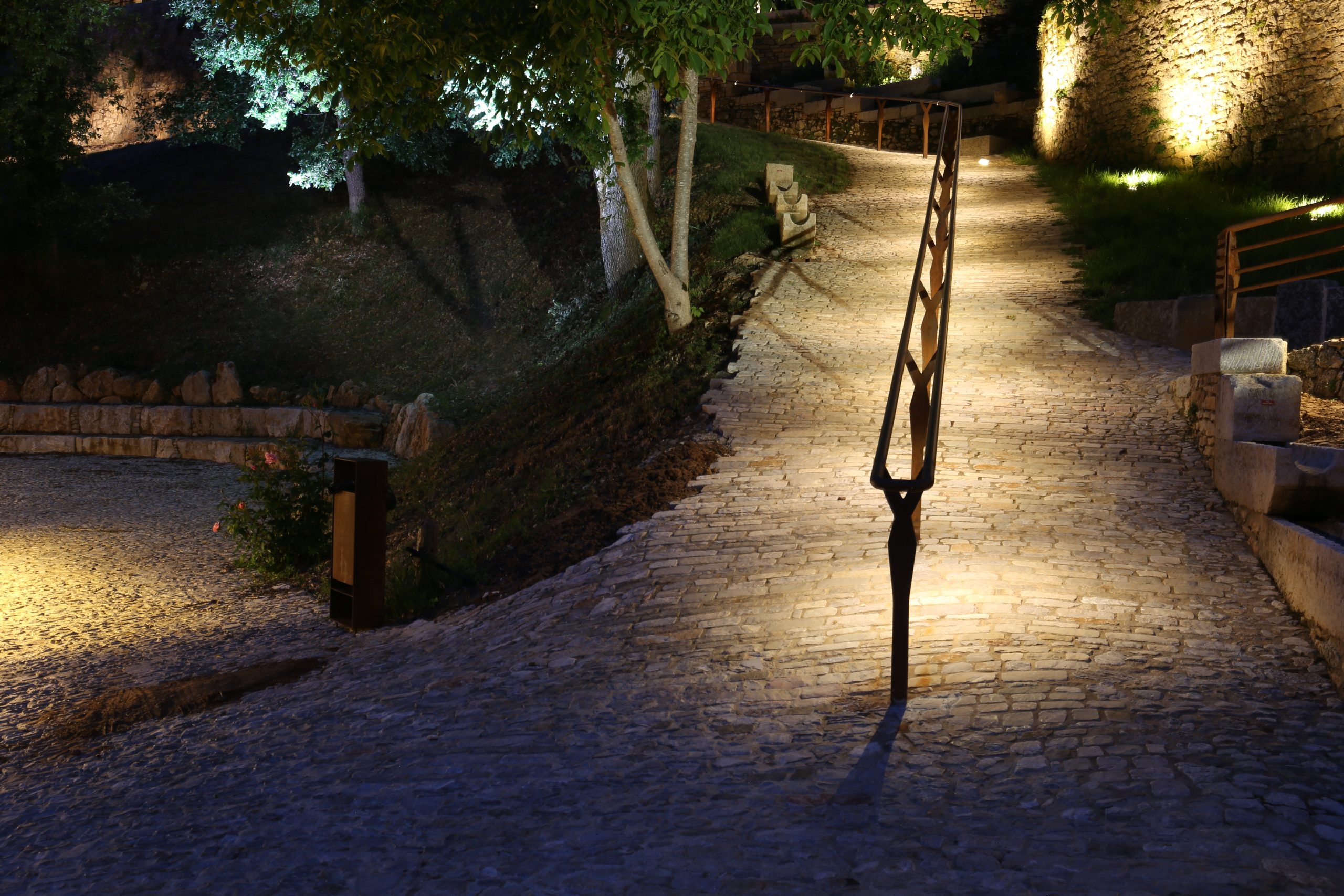

- Handrail Lighting
- Interior Lighting
- Retail
- Display Cases
- Galleries & Museums
