Overview

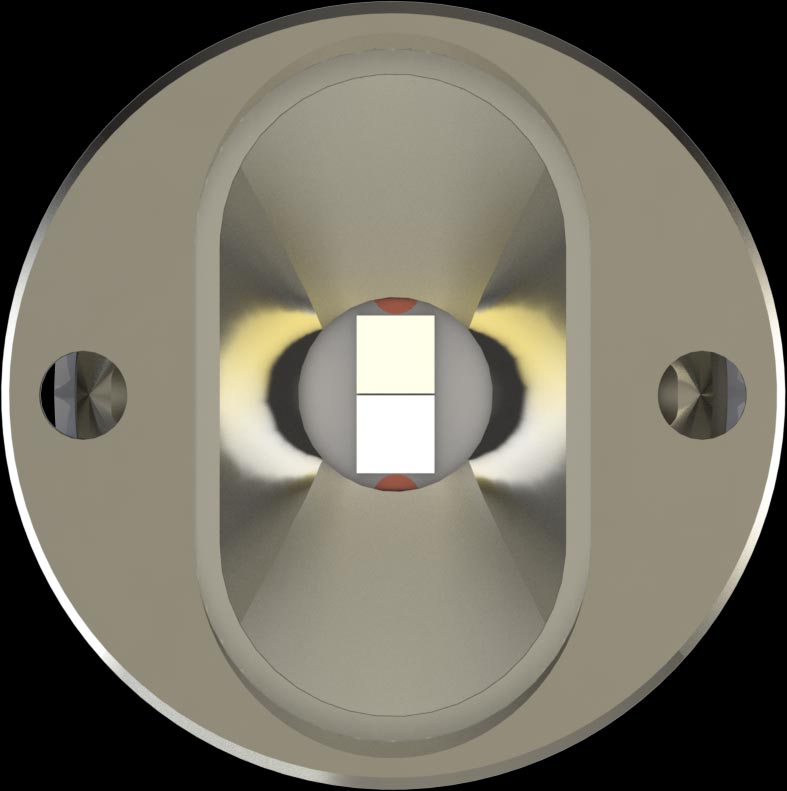

Make lighting design easy with Planet LED Puck SOLO Tunable White. Enjoy exceptional design versatility with dynamic colour temperature and brightness control, all without sacrificing discretion.
5 years warranty is just the beginning. We design and manufacture entirely in our purpose built Australian facility. Snap is vandal resistant and impact rated to IK10, and each and every Snap mini puck is burned in to ensure the light you receive performs as it should.
Specifications
POWER
1.4 W / 500 mA / 2.8 Vf
Up to 35 Snaps per driver
L90 B10 >100,000 hours
LUMENS
3000K – 170lm / 4000K – 180lm
DISTRIBUTION
AS: Elliptical Symmetric 75°
ST: Elliptical Symmetric 70°
MATERIAL OPTIONS
316 Stainless Steel
Electropolished / Raw Brass/ RAL Finishing
DIMENSIONS
SNAP: 16mm Ø x 15mm overall 0.016kg
SOLO: 16mm Ø x 28mm overall 0.032kg
INSTALLATION SURFACE
min. 1.5 mm Wall Thickness
AMBIENT OPERATING
CONDITIONS
min. -40° / max. +55°
PROTECTION CLASS
IP67 / IK10
IP68 from rear
ELECTRICAL
Coolsplice Connector
COUNTERBORE
(Required for a flush finish)
Ø16 mm x 0.5 mm
min. 2mm wall thickness
Drill Jig used to achieve correctly prepared counterbore
CONTROL
DALI2 | DT8| Custom
HOLE SIZE
Ø15 mm
Lighting Options
2200K / 2700K / 3000K / 3500K / 4000K / 5000K / 6500K colour temperature
CRI 80+ / 90+
Photo Red / Violet / Royal Blue / Blue / Cyan / Green / Amber / Red-Orange / Red / Phosphor Blue / Phosphor Cyan / Phosphor Lime / Phosphor Amber / Phosphor Red-Orange / Phosphor Red / Phosphor Mint / Phosphor Yellow saturated colours
3 Macadam steps
*For more detailed information, download the product Datasheet

Ideal For

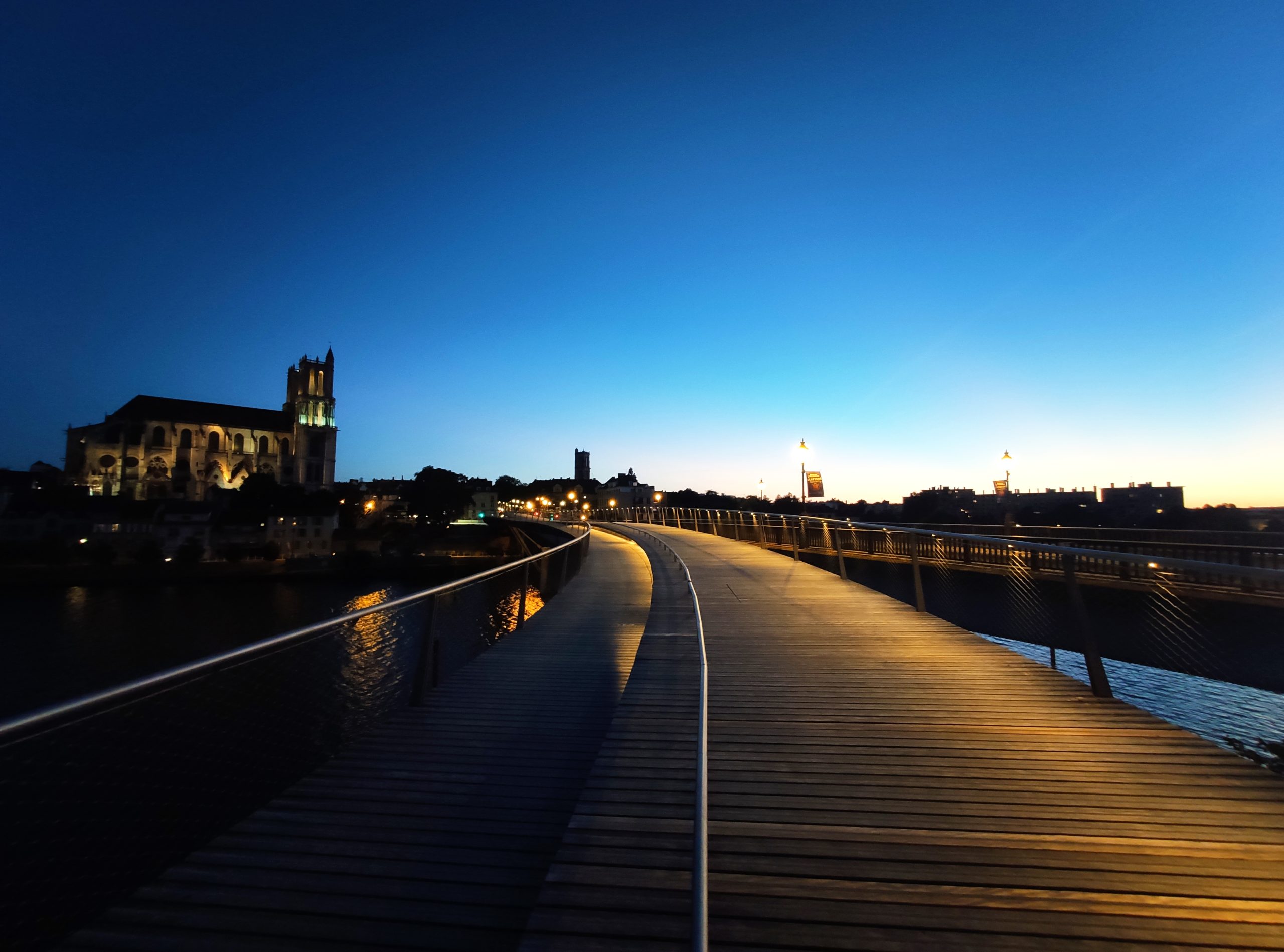

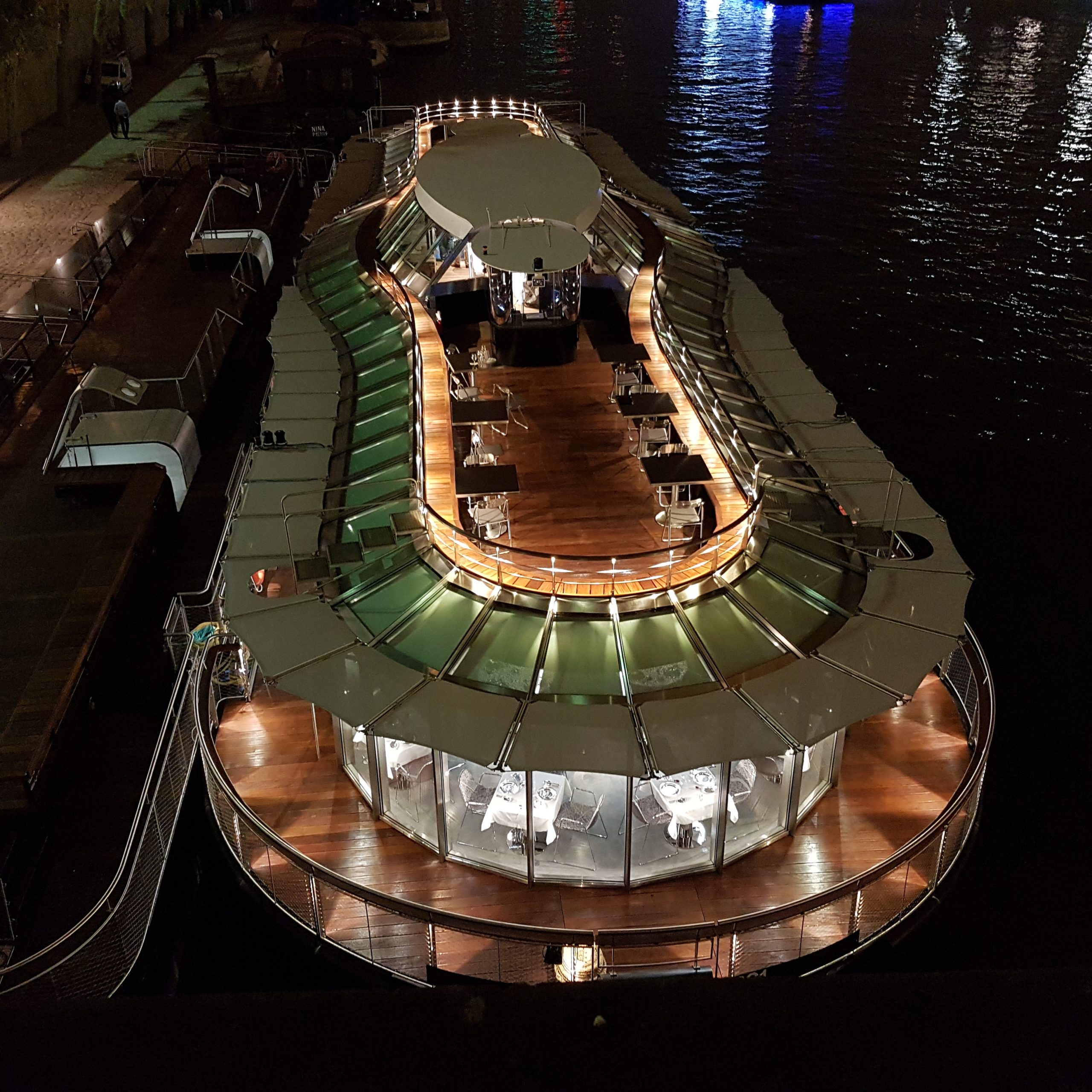

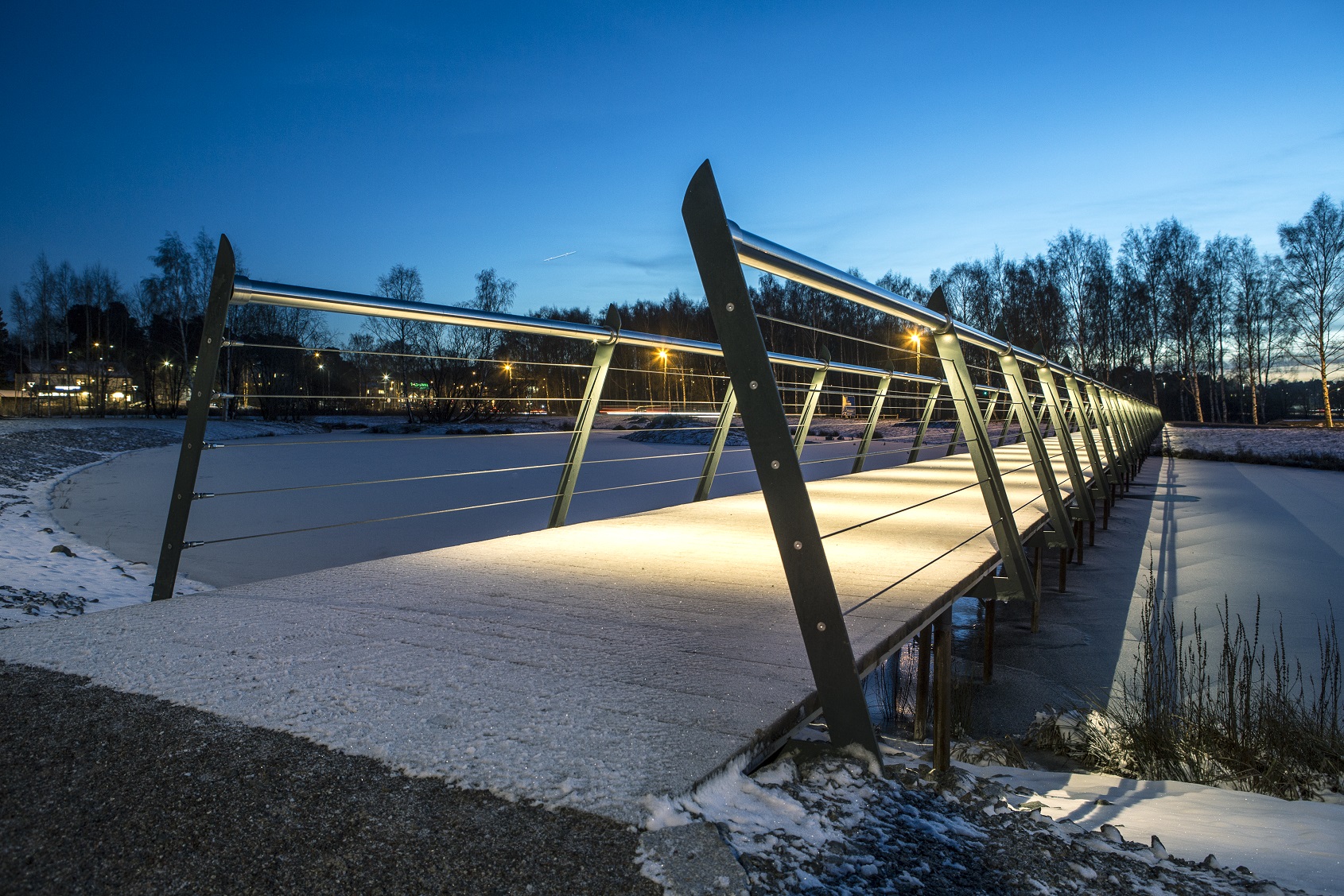

- Handrail Lighting
- Interior Lighting
- Retail
- Display Cases
- Galleries & Museums
