SOLO RGBW

Architectural / Products / LED Puck / Snap

SOLO RGBW

Overview

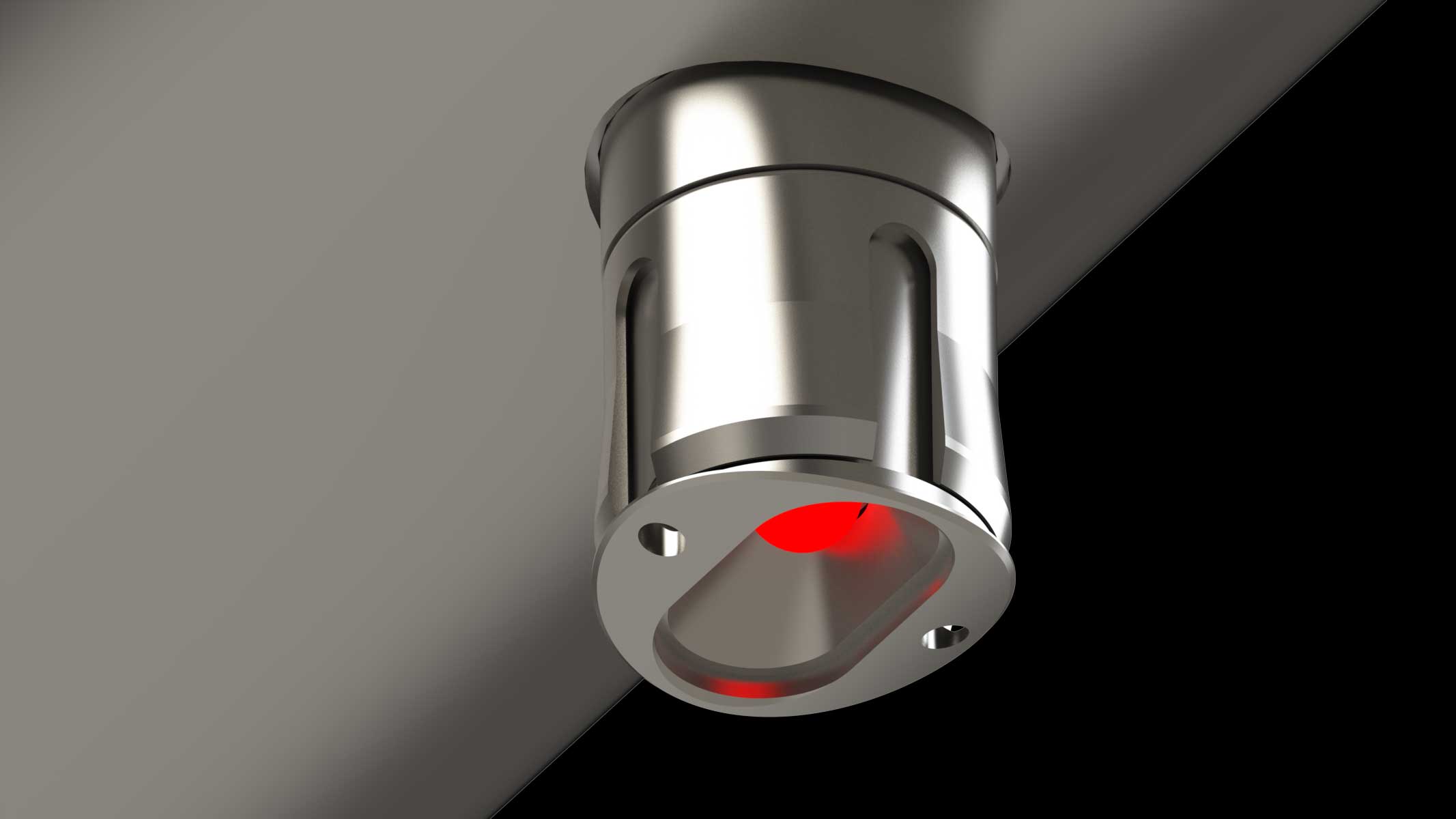

Let free your imagination with Planet LED Puck SOLO RGBW. Infuse vibrant, emotive colour into any lighting project simply and efficiently. SOLO RGBW has a plug and play design and patented collapsible shell module making installation quicker and easier than ever. And with thermal control built-in, installation is possible in a range of material types including metal, wood, plaster and masonry.

Specifications

TECHNICAL
1.4W / 500mA / 2.8Vf
Up to 15 SOLOs per driver
L90 B10 >100,000 hours
3 STEP MACADAM ELLIPSE

LUMENS
Standard: 4000K – 180lm
Asymmetric: 3000K – 165lm / 4000K – 175lm
Lens: 4000K – 180lm

DISTRIBUTION
Asymmetric: Elliptical Asymmetric 75°
Standard: Elliptical Symmetric 70°
Lens: Circular

MATERIAL OPTIONS
316 Stainless Steel
Electropolished / Raw Brass/ RAL Finishing

DIMENSIONS
SOLO: 16mm Ø x 28mm overall 0.032kg

INSTALLATION SURFACE

min. 1.5mm Wall Thickness
min. Ø45mm Rail (CURVED FACE ONLY)

AMBIENT OPERATING
CONDITIONS
min. -40° / max. 55°

PROTECTION CLASS
IP65 / IK10
IP68 from rear

ELECTRICAL
Coolsplice Connector

COUNTERBORE
(Required for a flush finish)
Ø16 mm x 0.5 mm in flat surface

Ø16 mm x 1.6 mm in curved surface

Drill Jig used to achieve correctly prepared counterbore

CONTROL
DALI | DMX

INSTALLATION SURFACE

min. 1.5 mm Flat Thickness

min. Ø45mm Curved thickness

Lighting Options

RGBW (3000k) / RGBW (4000k)

CIE Ra 80+ (White)

70° x 90° asymmetric / 70° x 90° standard / 105° x 120° wide / 23° (Narrow) / 42° (Medium) / 80° (Wide) optics

Available in

Asymmetric > Standard > Lens

*For more detailed information, download the product Datasheet

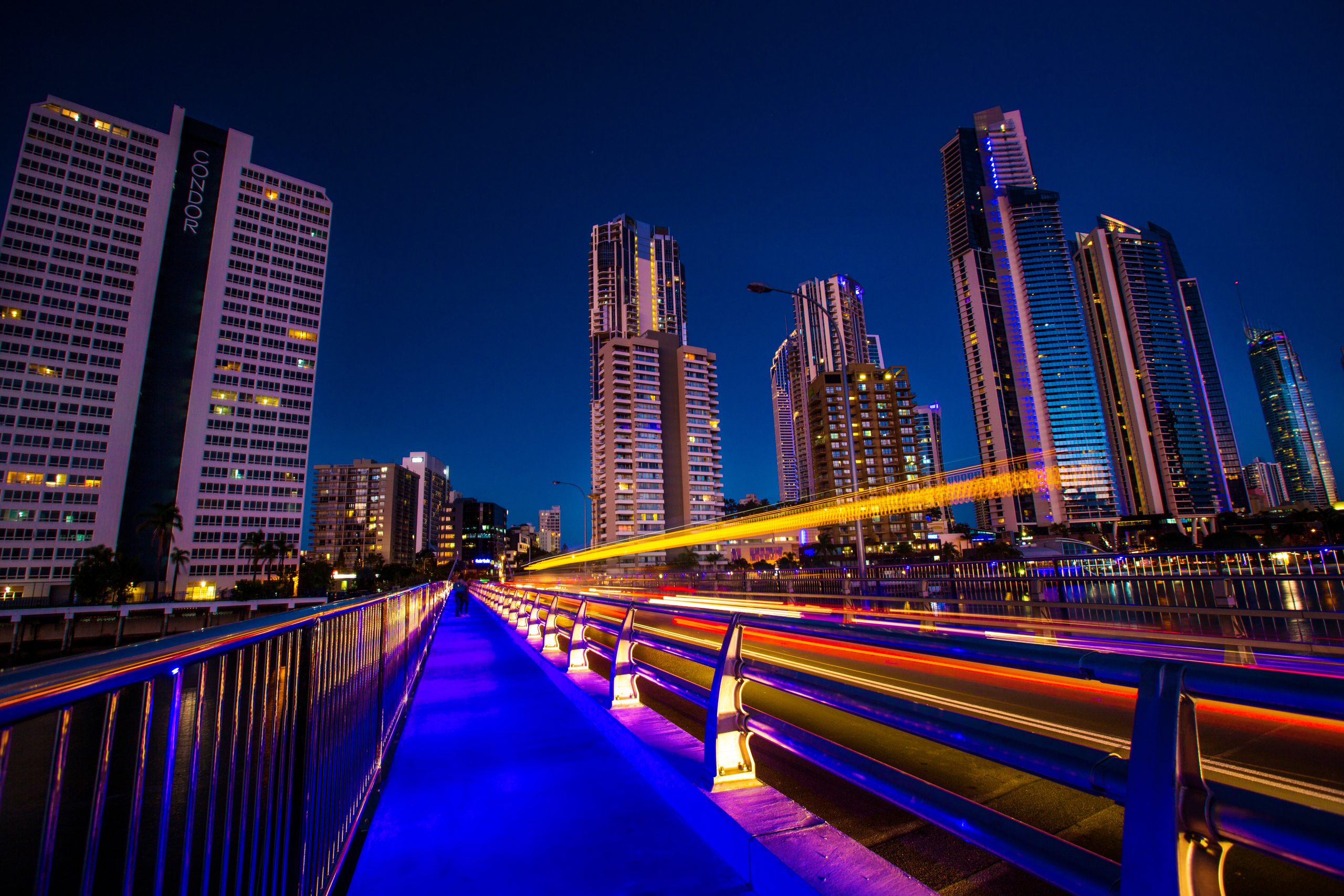

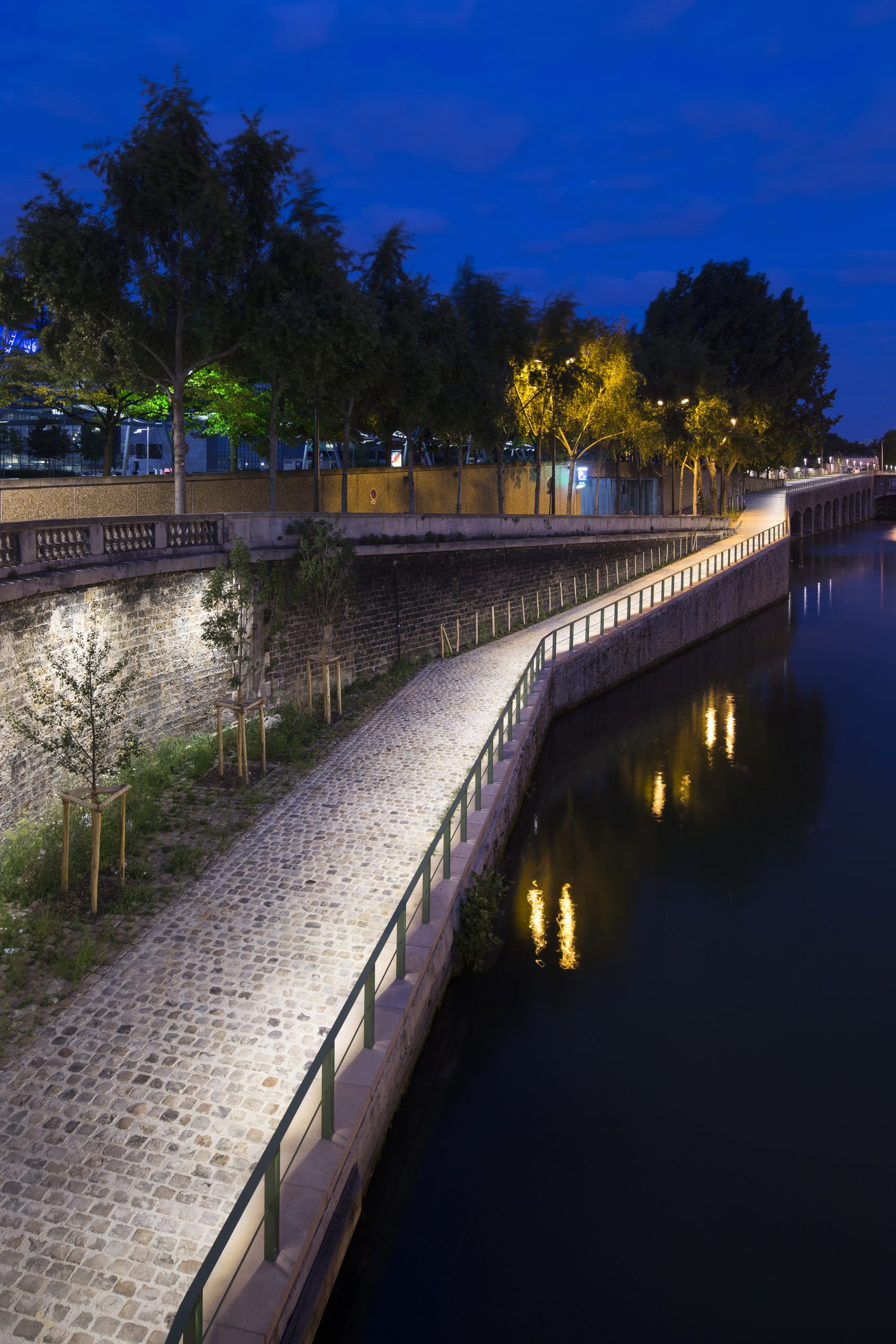

Ideal For
