Perfect for Minor Veterinary Surgery
The Pentaled 30E Veterinary is a LED surgical light specifically designed for small animal surgery. Its compact size makes it ideal for operating rooms where ceiling-mounted equipment leaves limited space. Easy to handle and clean, it ensures maximum functionality and hygiene.

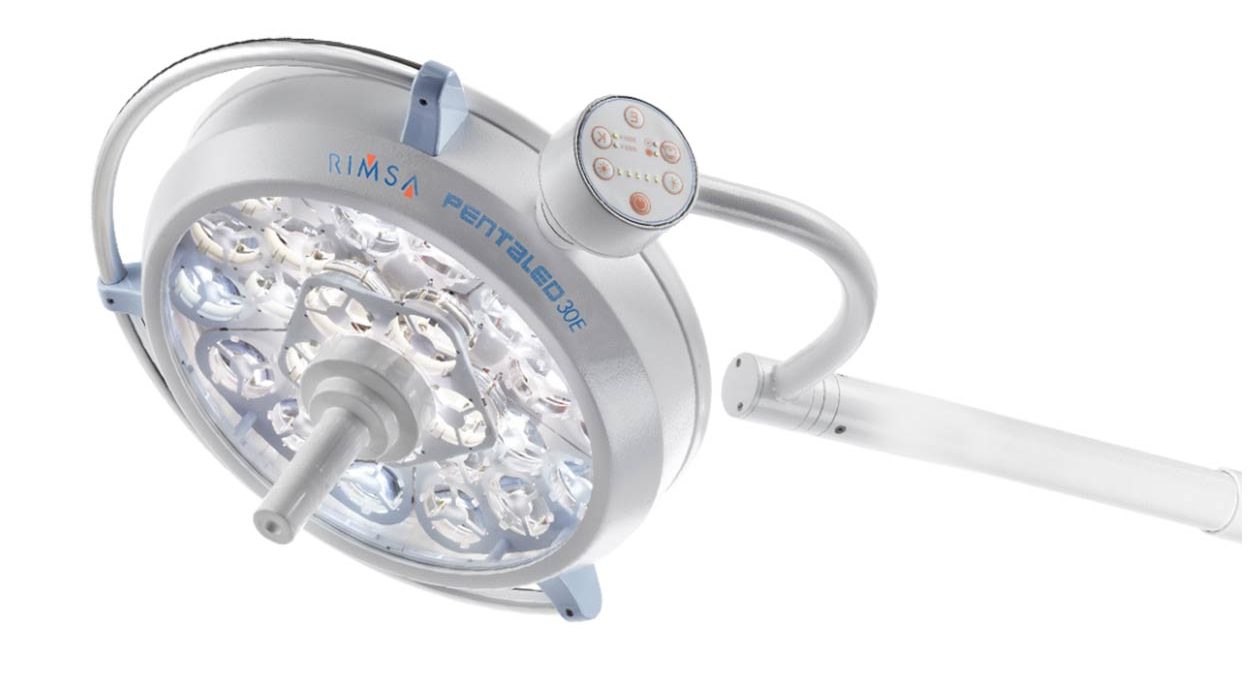

This surgical light is composed of 30 elliptical reflectors arranged in 6 modules of 5 LEDs each, delivering a luminous intensity of 160.000 lux. An aluminium ring surrounds the dome to facilitate easy positioning. The lamp’s optics are designed to ensure consistent focus, eliminating the need to refocus each time the dome is moved.
Optional features include a Back-up/UPS battery with automatic charger, SD TVCC camera, HD TVCC camera, IR remote control, wall control panel, arm and TFT video.

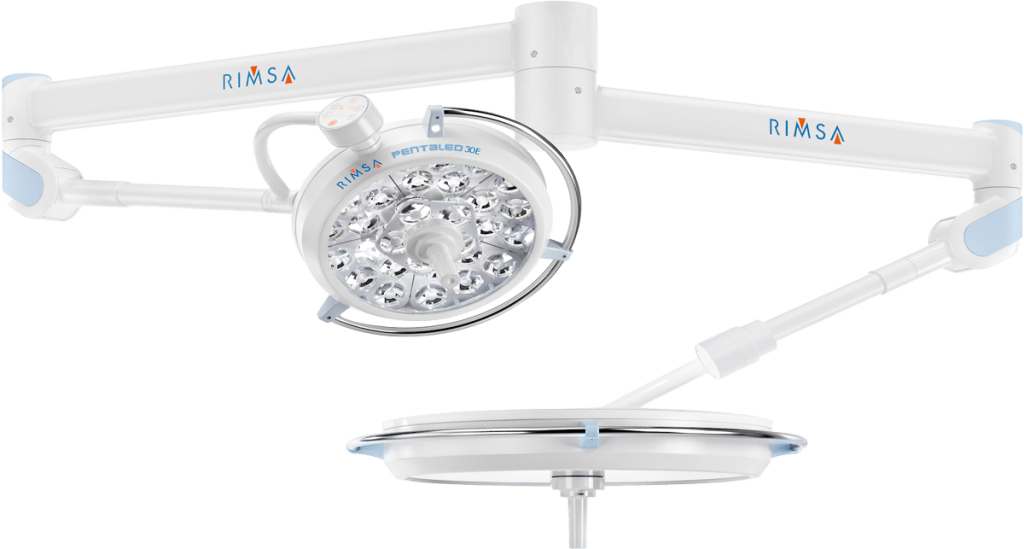

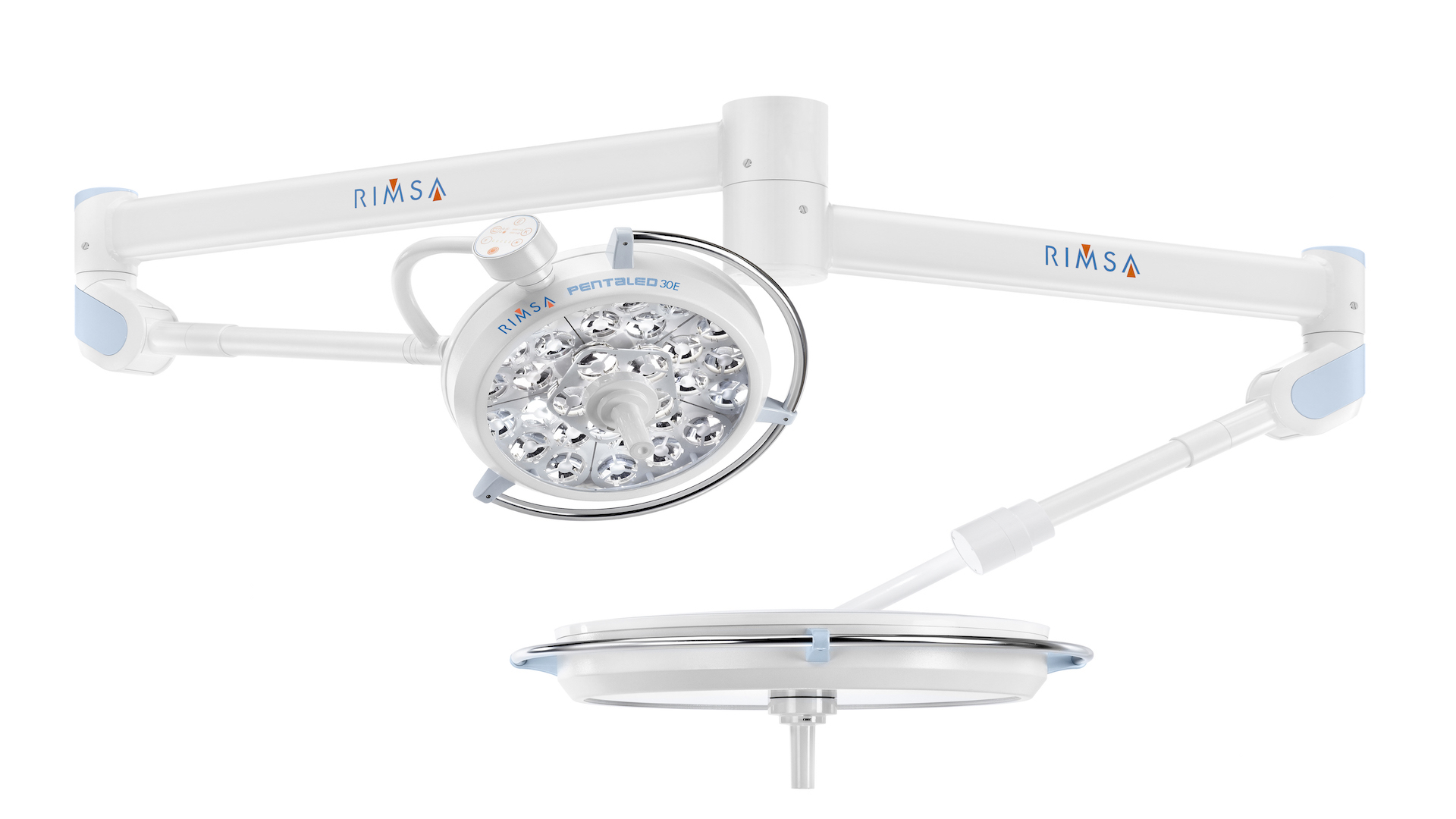

Available as dual head versions: Pentaled 30E + Pentaled 30E; Pentaled 30E + Pentaled 81; Pentaled 30E + Pentaled 105.
Ideal For
- Day Procedures
- Aesthetic Surgeries
- Gynaecology
- ENT/Ophthalmology
Downloads
Features
- 160,000 lux at 1m
- electronic diameter adjustment via the E-View system (compensation area), based on the type of light required by the surgical specialty
- endoled function can be activated to provide ambient lighting during endoscopic procedures
- selection between 2 different colour temperatures (4.500 K – 5.000 K)
- CRI 96
- electronic Diameter adjustment
- adjustable light field diameter 140mm-280mm
- individually wired boards and modules ensure uninterrupted operation
- 50,000h LED lifetime
- autoclaveable handle
- total wattage consumption 70W
- 3-year warranty
- Powerful and cool-to-touch LED light
- High visibility: CRI 95+; and 4000K
- Cyanosis Compliant
- 40.000-50.000 lux @ 1m available
- Low power consumption at only 14 Watts Total
- Low-profile, easy-clean head with
- ON/OFF and dimming control, plus twist to release for easy removal and maintenance
- Affordable, retrofit kit option* for easy change to LED
- Durable all metal construction
High Performance in Small Size
The PentaLED 30E is a Operating Room light for small surgery. It is part of the PentaLED E Series, and is particularly suitable in Operating Rooms where the lamp must be small in size in order not to interfere with other equipment hanging from the ceiling. It is ideal for animal surgery, maxillofacial or plastic surgery.
Lighting
Always on Focus
This Operation Room light consists of 30 elliptical reflectors divided into 6 modules of 5 LEDs each for a light intensity of 160, 000 lux.
An aluminium ring surrounds the dome to facilitate handling operations. The optics of the lamp have been designed to ensure a lighting is always on focus, without the need to focus every time the dome is moved.
Advanced E-View System

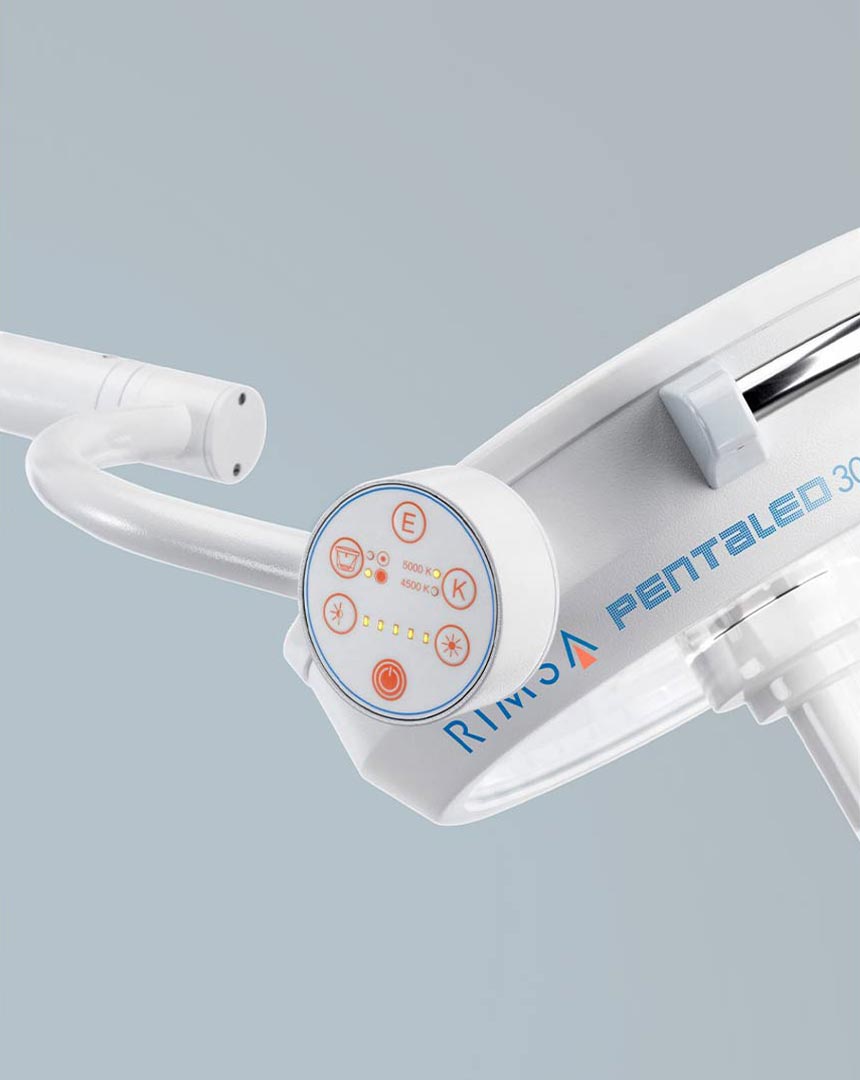

With a slimline profile and E-view system, this is an innovative system allowing the surgeon to expand/narrow the illuminated operating field electronically, without altering the intensity of the light at the centre of the field.
The Pentaled 30E has 30 elliptical reflectors split into 6 modules, each containing 5 LEDs, providing up to 160,00 lux. Like all Rimsa surgical lights, it utilises an indirect beam, ensuring a shadow-free operating field.

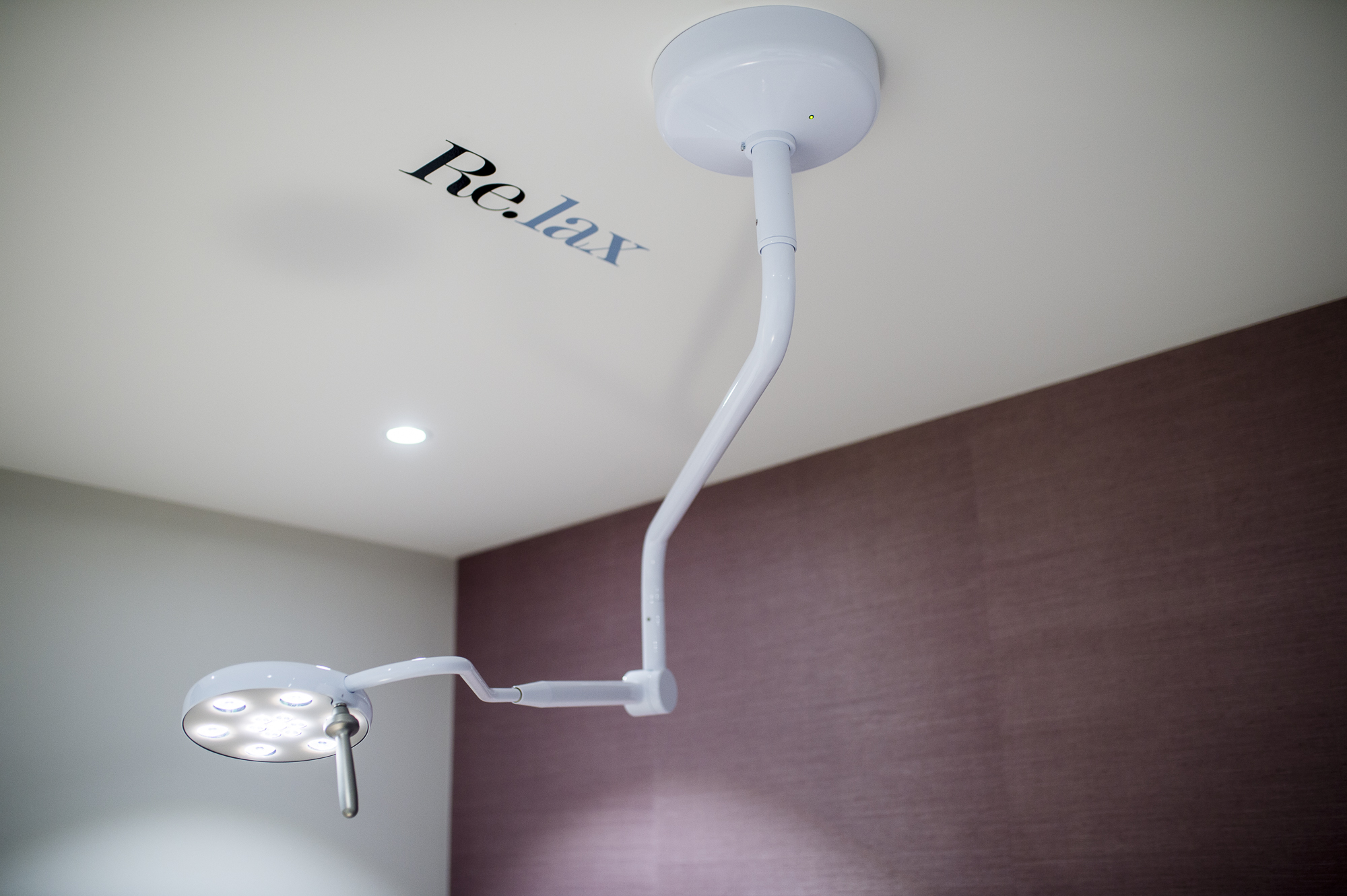

Versatile Mounting and Extension Options
Every hospital and practice is different. We offer a complete range of mounting options, extensions and supports for multiple structural types.
Rest assured we’ve got your requirements covered. Get in touch to find out more.
Technical Specifications
Illuminance at 1 Meter (Ec) _______________________________________________________________________ 160.000 Lux
Lamp Head Diameter _______________________________________________________________________________ 40 cm
Color Temperature ___________________________________________________________________________ 4.500-5.000K
Light Field Diameter ___________________________________________________________________________ 140-260 mm
LED Lifespan ______________________________________________________________________________ > 60.000 hours
Light Intensity Control ____________________________________________________________________________ 5-100%
