MegaPuck Aperture
Overview

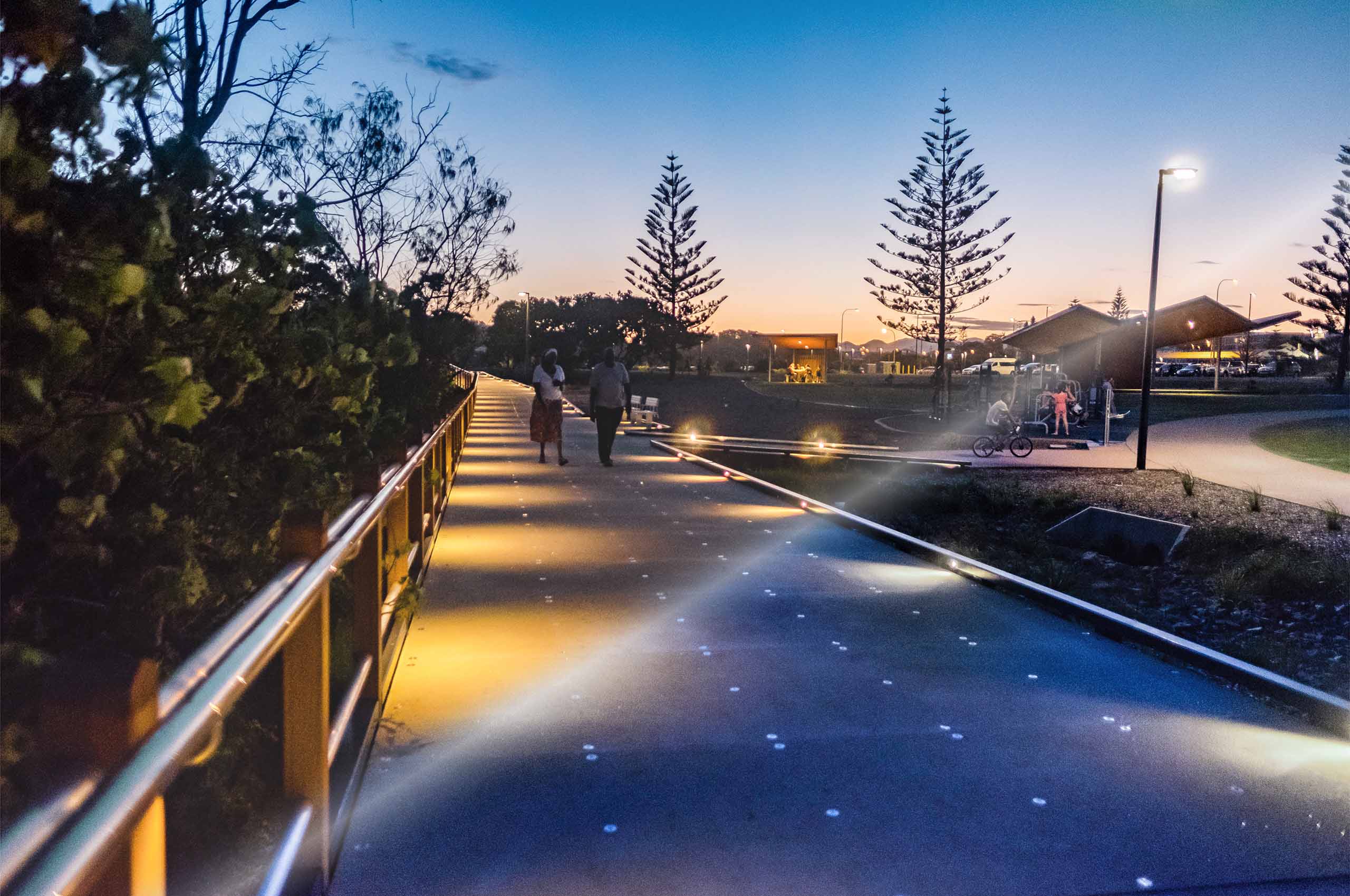

With a Unified Glare Rating (UGR) of less than 1%, MegaPuck Aperture is an excellent choice for illuminating pathways while minimizing light pollution. Its advanced asymmetric technology, combined with superior glare and uplight control, ensures that light is directed precisely where it is needed, without any spill or waste. This versatile lighting solution is ideal for applications such as wall washing, pathway lighting, and more.
Specifications
TECHNICAL
8W/700mA Max (in metallic substrate)
6W/500mA Max (in non-metallic substrate)
3 Step MacAdam Ellipse
L90 B10 >100,000 hours
CRI 80+ (CRI 90+ option)
PERFORMANCE
Up to 500lm (in metallic substrate)
Up to 300lm (in non-metallic substrate)
OPTICS
Polycarbonate / PMMA
DISTRIBUTION
Only available in asymmetric
EMITTER OPTIONS
BINNING: 3-step bins, 2700 K—4000 K CCT
Tunable White, RGBW, and 17 colour options
MATERIAL
Anodised Aluminium
FINISHES
Anodised Black
Anodised Bright
Powdercoat (RAL colour) optional
AMBIENT OPERATING CONDITIONS
min. -40° / max. +55°
PROTECTION CLASS
IP67 / IK10
ELECTRICAL
• Series: Can be wired in series:
Up to 8 MegaPucks in series from a TCI MAXI JOLLY HV constant current LED driver set to 500mA; or, Up to 6 MegaPucks in series from a TCI MAXI JOLLY HV constant current LED driver set to 700mA
• Parallel: Can be wired in parallel using 24VDC (with 1 x inline DC-DC driver per MegaPuck)

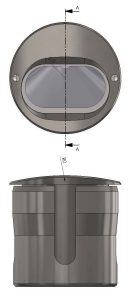

INSTALLATION
Can be integrated into flat or curved surfaces with a minimum thickness of 2mm. Flush or 1mm proud finish:
• Flush Finish:
» Flat Surfaces: Ø30mm hole with Ø32mm x 1mm rebate (requires >3mm material thickness)
» Curved Surfaces: Ø30mm hole with Ø32mm x 2.75mm rebate
• Proud Finish (1mm): Ø30mm hole
CONTROL
1-10 v | DALI | DMX | ZigBee | Casambi | Blue Light Link | basicDim wireless
HOLE SIZE
Ø30mm
Lighting Options
Available in 17 colours and a range of white options. Also available in Tunable White and RGBW
2700K / 3000K / 3500K / 4000K colour temperature
Photo Red / Violet / Royal Blue / Blue / Cyan / Green / Amber / Red-Orange / Red / Phosphor Blue / Phosphor Cyan / Phosphor Lime / Phosphor Amber / Phosphor Red-Orange / Phosphor Red / Phosphor Mint / Phosphor Yellow saturated colours
*For more detailed information, download the product Datasheet
Ideal For

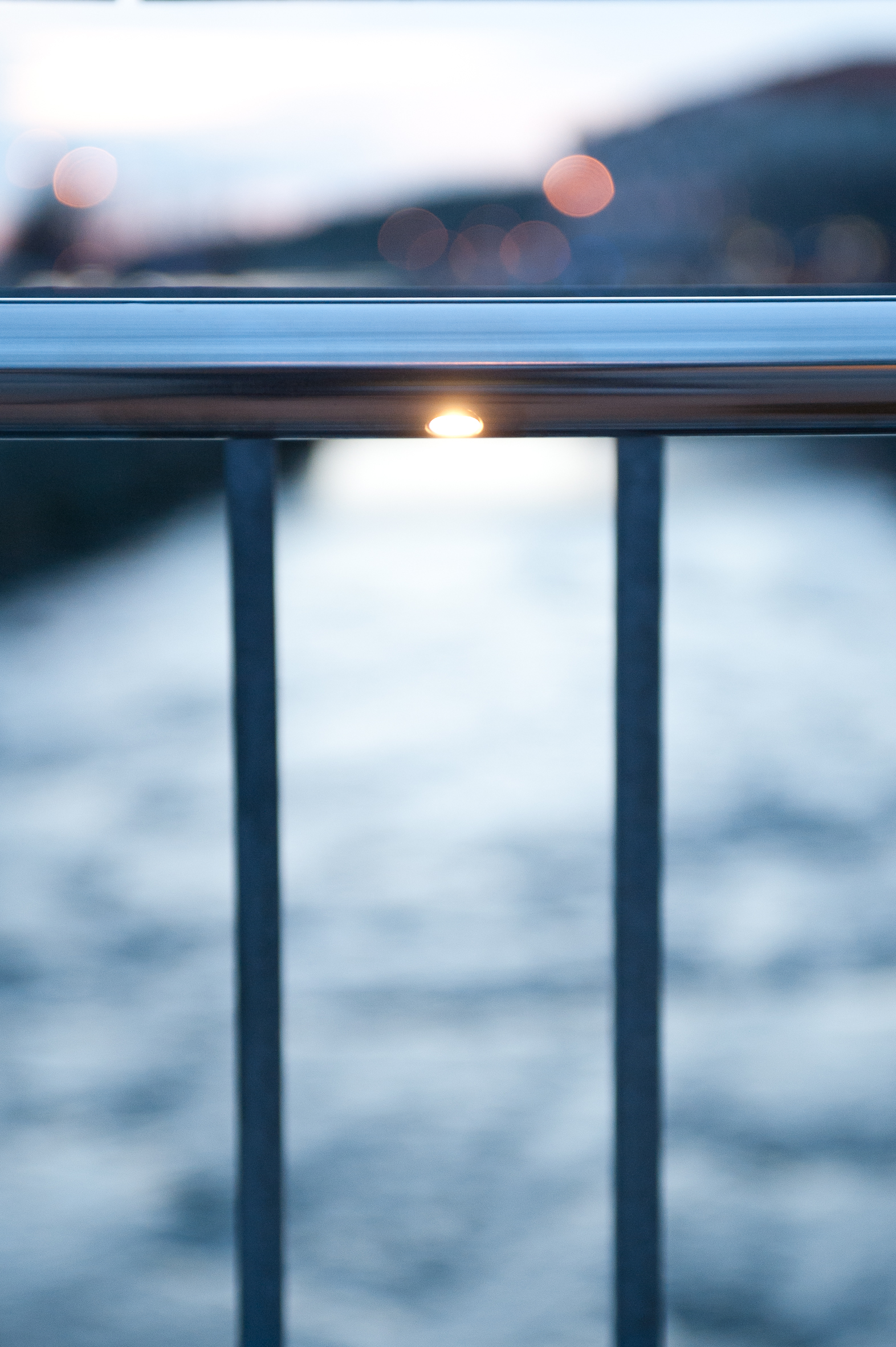

- Handrail Lighting
- Interior Lighting
- Retail
- Display Cases
- Galleries & Museums
