Product Overview
The U29 expands on the renowned Pentaled series, now in an especially slimline, compact and affordable package.
The U29 inherits Rimsa’s E-view system, allowing the surgeon to electronically expand/narrow the illuminated operating field, without altering the intensity of the light at the centre of the field (Ec). Its high-performance, indirect beam reduces glare and ensures a shadow-free operating field.
Light intensity and colour temperature are adjustable using a membrane keyboard with selections of 4500K and 5000K.
Optional features include a Back-up/UPS battery with automatic charger, SD TVCC camera, HD TVCC camera, IR remote control, wall control panel, arm and TFT video.

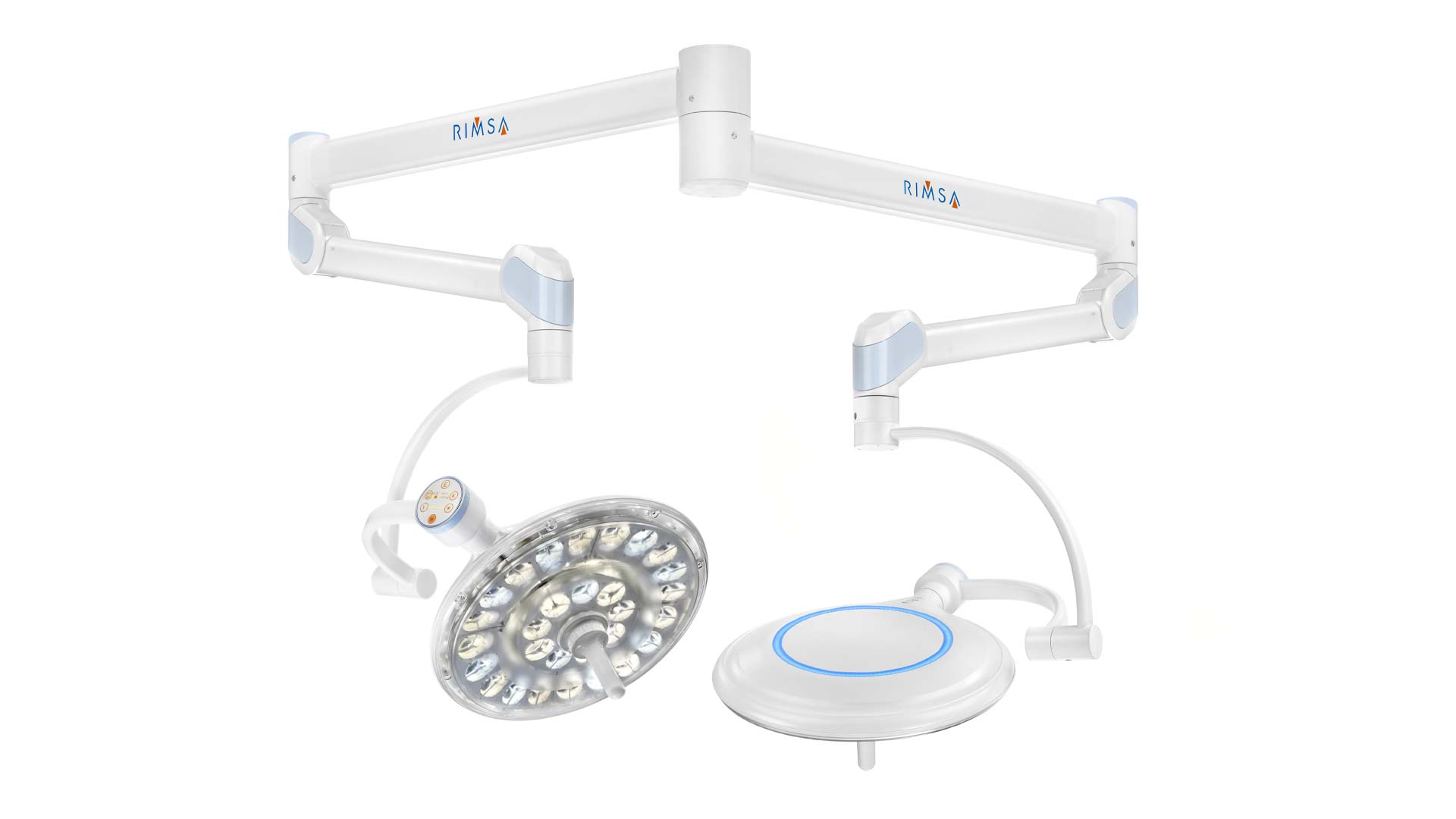

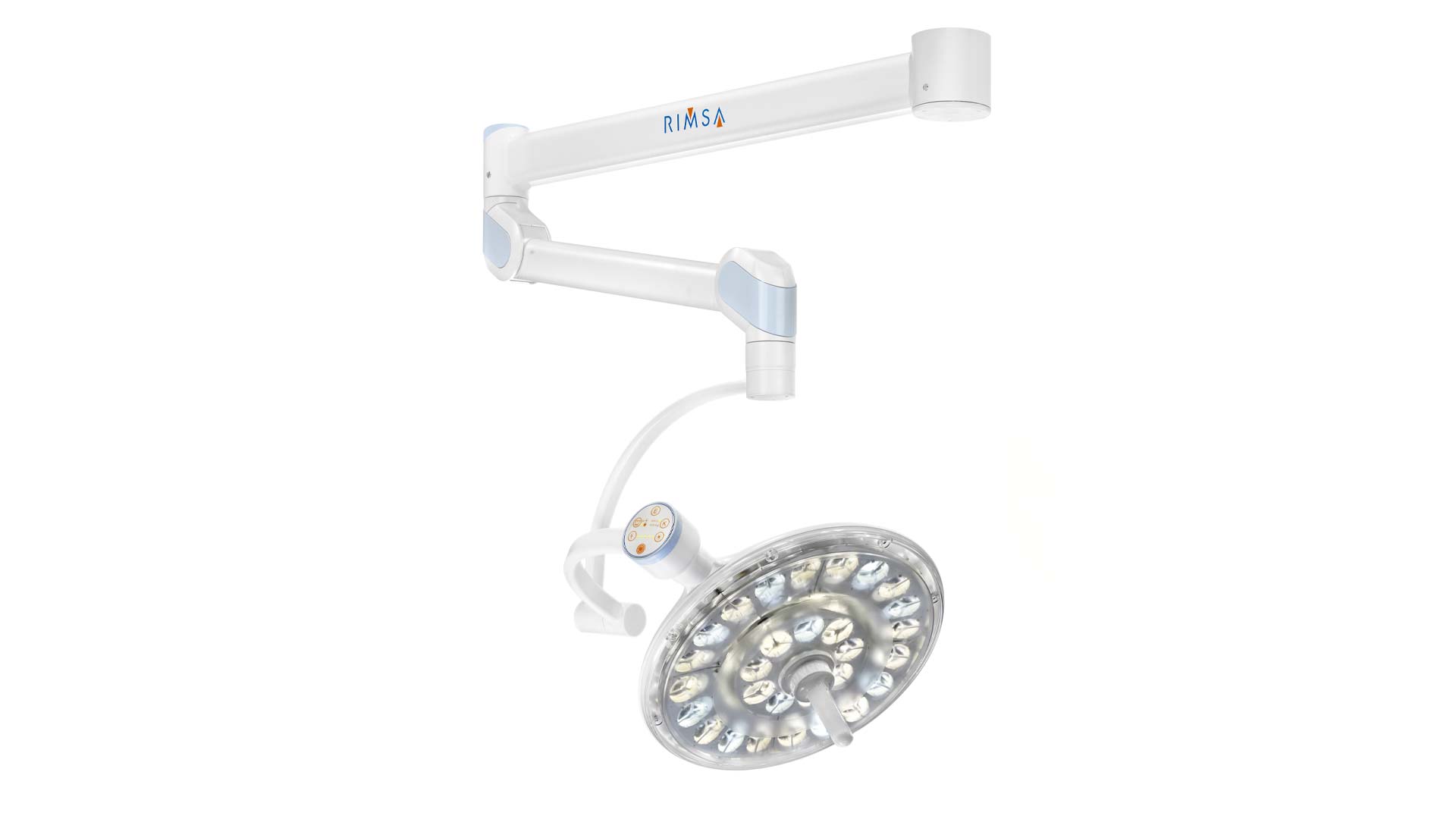

Available as dual-head or single versions, with or without a double yolk arm.
Ideal For
- Day Procedures
- Emergency
- Operations
- Gynaecology
Downloads
Features
- 160,000 lux at 1m
- selection of 4500K and 5000K
- CRI 96
- electronic Diameter adjustment
- adjustable light field diameter 140mm-280mm
- individually wired boards and modules ensure uninterrupted operation
- 60,000H LED lifetime
- total wattage consumption 50W
- 3-year warranty
- Powerful and cool-to-touch LED light
- High visibility: CRI 95+; and 4000K
- Cyanosis Compliant
- 40.000-50.000 lux @ 1m available
- Low power consumption at only 14 Watts Total
- Low-profile, easy-clean head with
- ON/OFF and dimming control, plus twist to release for easy removal and maintenance
- Affordable, retrofit kit option* for easy change to LED
- Durable all metal construction
Slimline
Compact
Affordable
The U29 expands on the renowned Pentaled series, now in an especially slimline, compact and affordable package.
The Operating Room light U29 has been designed to offer a comfortable light without any dazzling effect for the surgeon or assistants. The indirect light, a fundamental characteristic of the U29 OR light, guarantees the surgeon a cold, deep and bright light.
High Performance Full Featured
The U29 inherits Rimsa’s E-view system, allowing the surgeon to electronically expand/narrow the illuminated operating field, without altering the intensity of the light at the centre of the field (Ec).
Its high-performance, indirect beam reduces glare and ensures a shadow-free operating field
Comfortable Light
for any Surgeon
The Operating Room light U29 combines the successful indirect technology of the Pentaled series with Unica’s sleek and compact design. It is a high-performance, highly engineered and comfortably accessible lamp; therefore, any surgeon can benefit from it.
Versatile Mounting and Extension Options
Every hospital and practice is different. We offer a complete range of mounting options, extensions and supports for multiple structural types.
Rest assured we’ve got your requirements covered. Get in touch to find out more.
Technical Specifications
Illuminance at 1 Meter (Ec) _______________________________________________________________________ 160.000 Lux
Lamp Head Diameter _______________________________________________________________________________ 52 cm
Color Temperature ___________________________________________________________________________ 4.500-5.000K
Light Field Diameter ___________________________________________________________________________ 140-230 mm
LED Lifespan ______________________________________________________________________________ > 60.000 hours
Light Intensity Control ____________________________________________________________________________ 5-100%
