Crescent
Overview
Planet LED Puck Crescent is the ideal wall-mounted downlight solution. Crescent not only integrates easily and securely with its IK10 impact-resistant design, but also delivers high light output and zero uplight, and is available in an impressive range of colour options. Eliminate spill and glare and expand your project possibilities with Planet LED Puck Crescent.
Specifications
TECHNICAL
8W/700mA max. (in metallic substrate)
6W/500mA max. (in non-metallic substrate)
3 Step MacAdam Ellipse
L90 B10 >100,000h
CRI 80+ (CRI 90+ option)
PERFORMANCE
Up to 500lm (in metallic substrate)
Up to 300lm (in non-metallic substrate)
OPTICS
Polycarbonate / PMMA
DISTRIBUTION
Available in a range of symmetric
distribution options
EMITTER OPTIONS
BINNING: 3-step bins, 2700 K—4000 K CCT
Tunable White, RGBW and 17 colour options
MATERIAL
Anodised Aluminium
AMBIENT OPERATING CONDITIONS
min. -40° / max. 55°
PROTECTION CLASS
IP67 / IK10
ELECTRICAL
• Series: Can be wired in series:
Up to 8 luminaires in series from a TCI
MAXI JOLLY HV constant current LED
driver set to 500mA; or,
Up to 6 luminaires in series from a TCI
MAXI JOLLY HV constant current LED
driver set to 700mA.
• Parallel: Can be wired in parallel using
24VDC (with 1 x inline DC-DC driver per
luminaire).

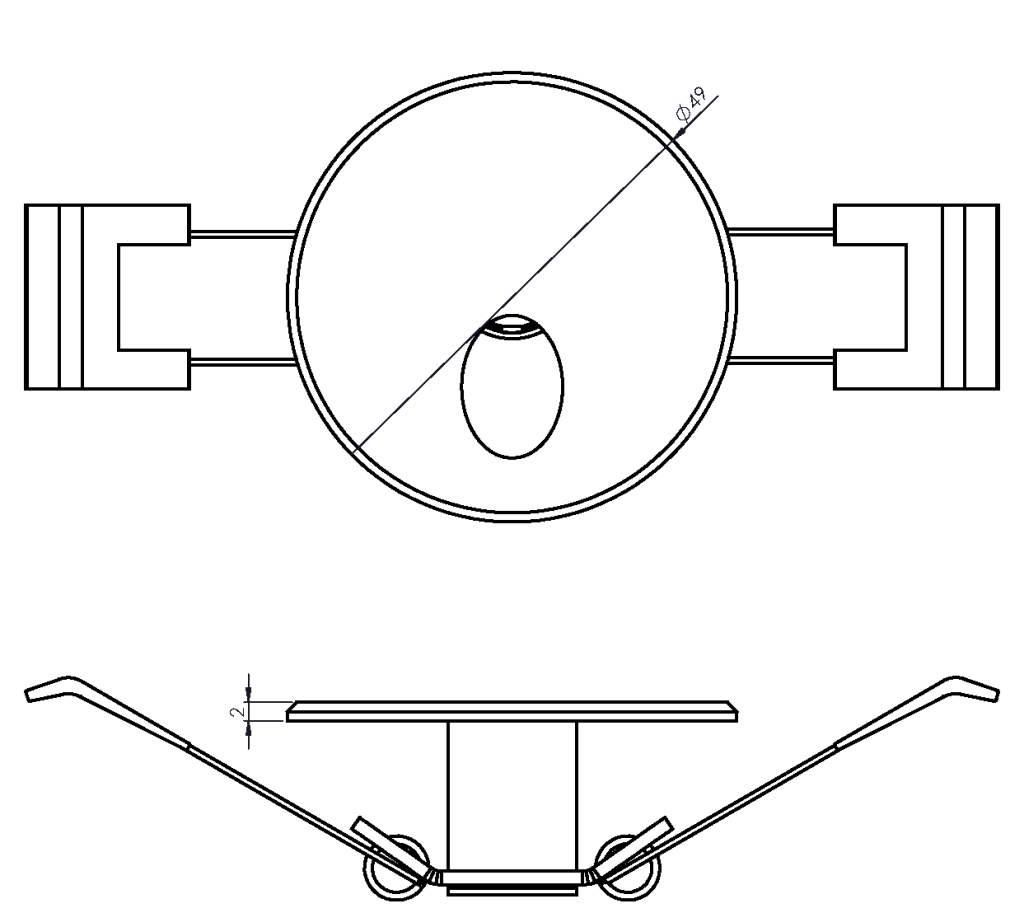

INSTALLATION SURFACE
Can be integrated into flat surfaces with a
minimum thickness of 2mm. Hole cutout
size: 35mm
CONTROL
1-10 v | DALI | DMX | ZigBee | Casambi Blue
Light Link | BasicDIM Wireless
Lighting Options
2700K / 3000K / 3500K / 4000K colour temperature
CRI 80+ / 90+
Photo Red / Violet / Royal Blue / Blue / Cyan / Green / Amber / Red-Orange / Red / Phosphor Blue / Phosphor Cyan / Phosphor Lime / Phosphor Amber / Phosphor Red-Orange / Phosphor Red / Phosphor Mint / Phosphor Yellow saturated colours
*For more detailed information, download the product Datasheet
Ideal For
- Wall Lighting
- Interior Lighting
- Retail
- Display Cases
- Galleries & Museums
