pentaled 28

Minor Procedure

Contact Us

Please drop us a line below and a member of our team will be in contact shortly.

CONTACT US

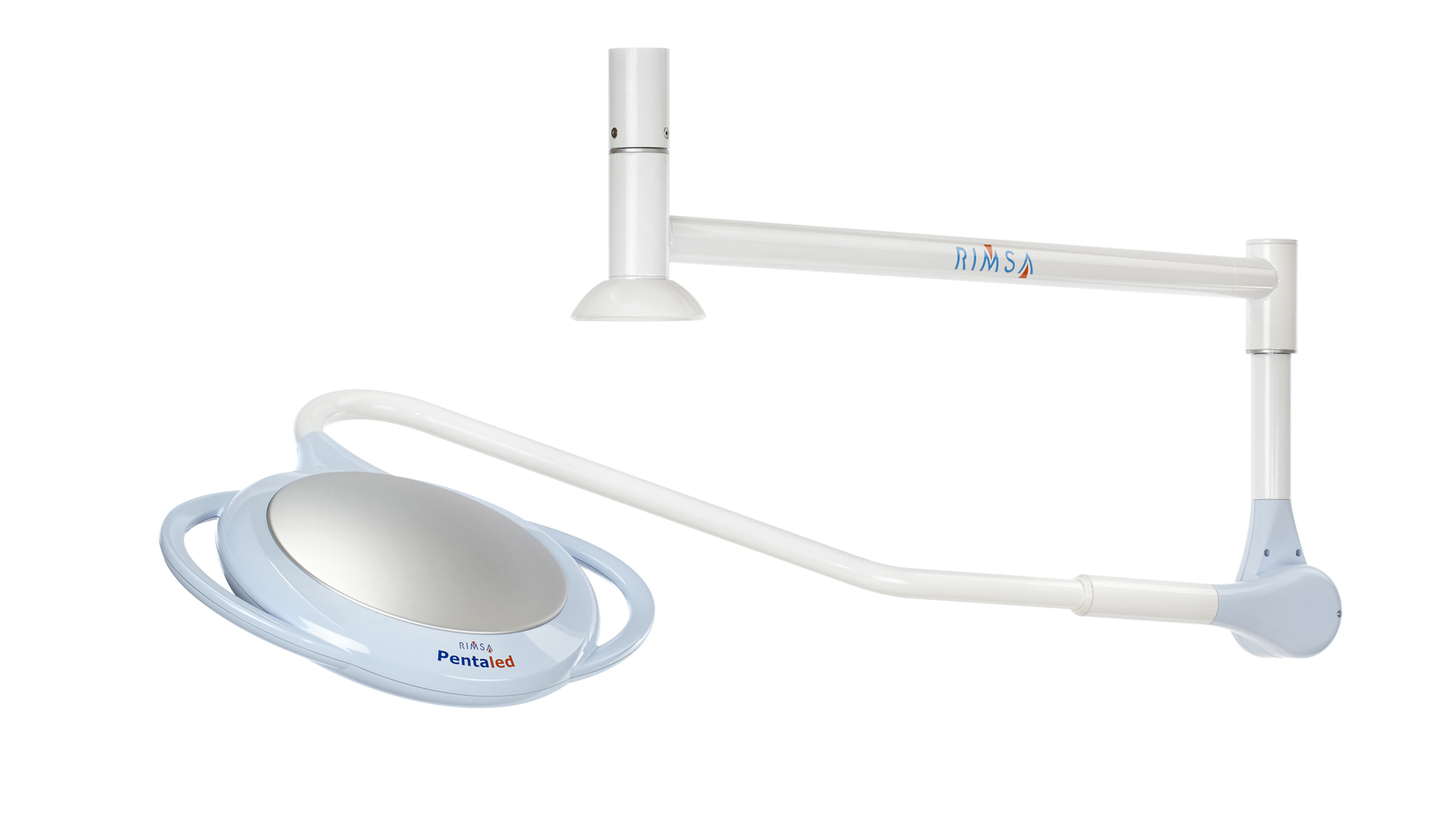

  • Mounting :

PRODUCT SUMMARY

The Pentaled 28 offers exceptional technical performance and great operating versatility. It is particularly suitable for minor surgery, gynaecology and emergency rooms.

RELATED PRODUCTS:

PRODUCT DETAILS

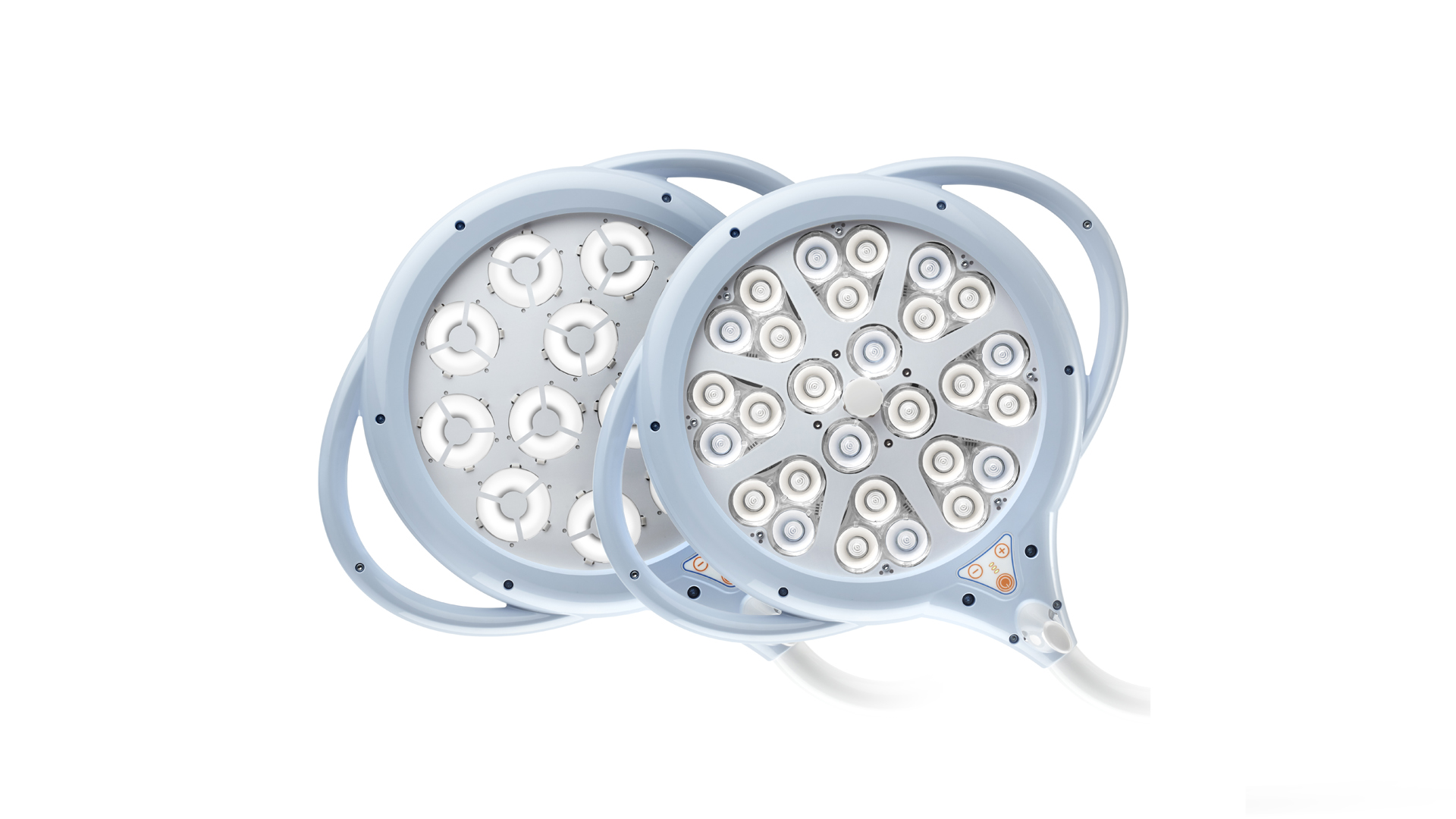

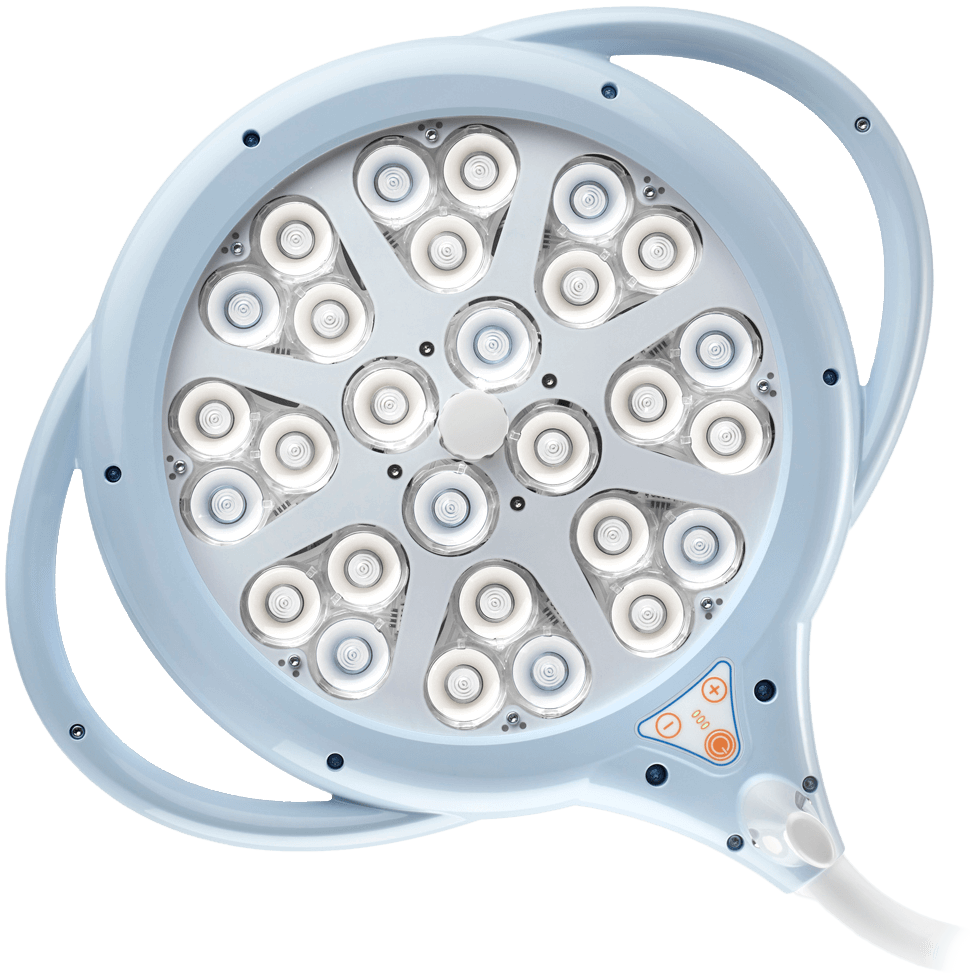

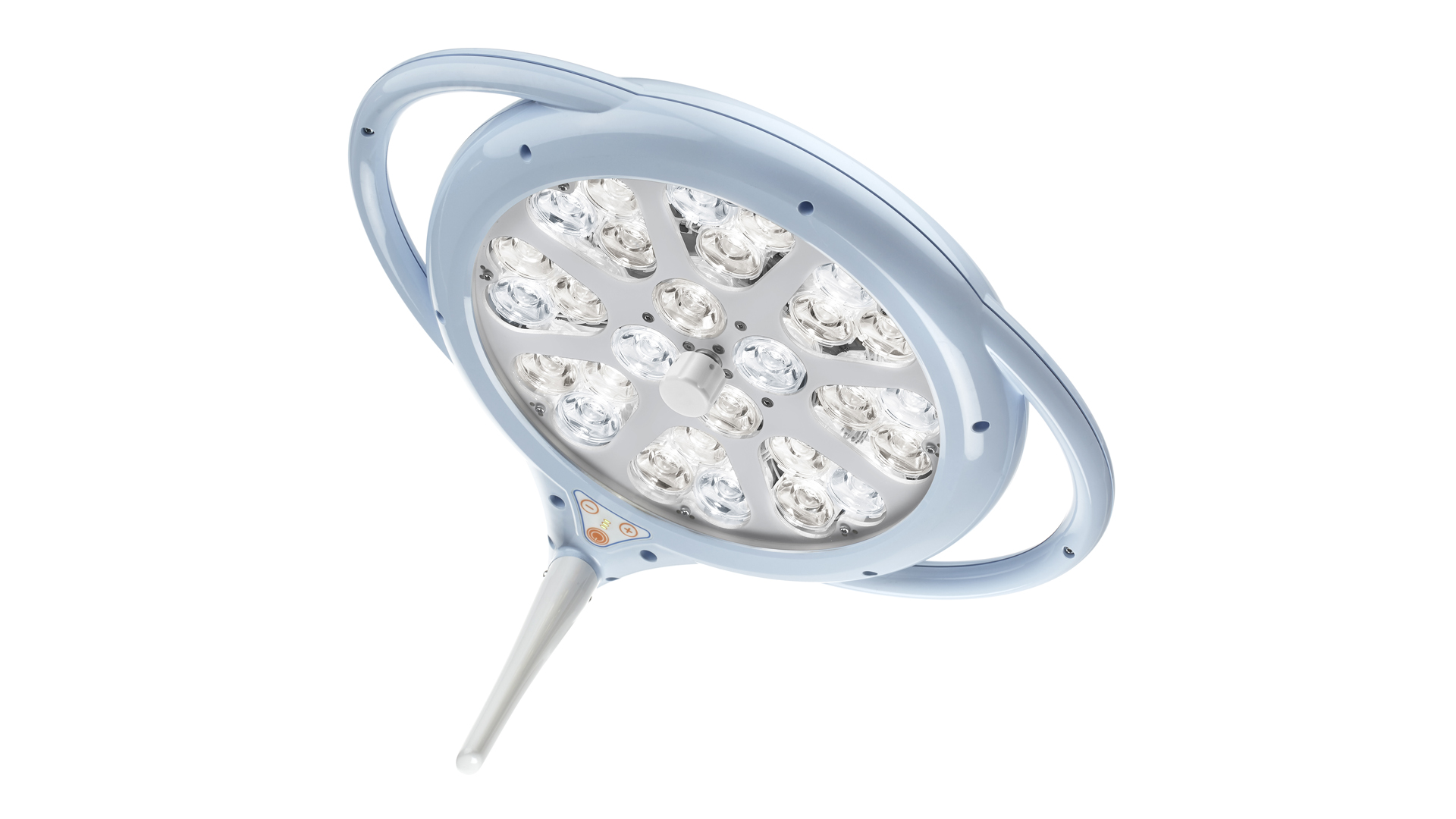

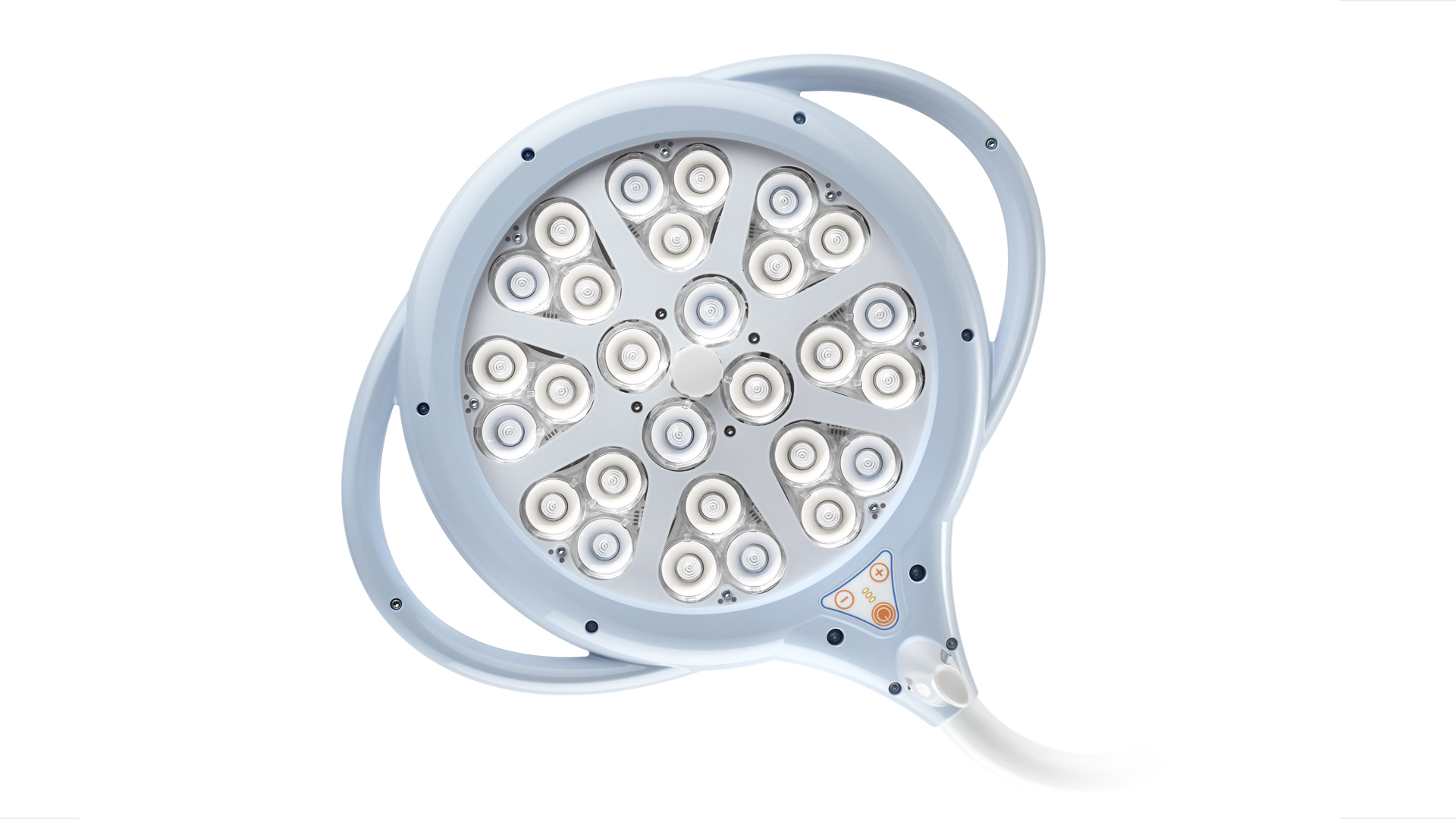

The Pentaled 28 offers exceptional technical performance and great operating versatility. The P28 differs from the P12 by having 28 LEDs with lens arranged in a radial pattern to reduce shadowing and ensure three-dimensional lighting.

The high efficiency of the LED sources and the low current absorption permit obtaining very low IR emissions and a cold light in the operating field.

Focusing and light field adjustment are achieved by turning the central knob. Through a digital membrane, the switch-on and switch-off functions can be accessed, the light intensity can be adjusted and the colour temperature can be changed 4500-5000ºK

FEATURES & BENEFITS

NOT SURE WHAT YOU'RE AFTER?

Give our Sales team a call on 02 6659 5600 or click compare below to view all our medical products side by side.

FEATURES

  • 120,000 lux at 1m
  • adjustable light intensity
  • adjustable Colour Temperature (4500/5000)
  • low-temperature operation
  • autoclaveable handle
  • ergonomic and modern design
  • 360 degree continuous movement
  • ultra-light structure
  • manual focus adjustment
  • CRI 92 (5000K) CRI 96 (4500K)
  • 50,000H + LED life time
  • total power consumption 100VA
  • IEC 60601-2-41

PERFECTLY SUITED TO:

  • Pre and post-operative areas
  • Emergency areas
  • Intensive care
  • Minor day surgeries
  • Women’s health
  • Treatment rooms
