Product Overview

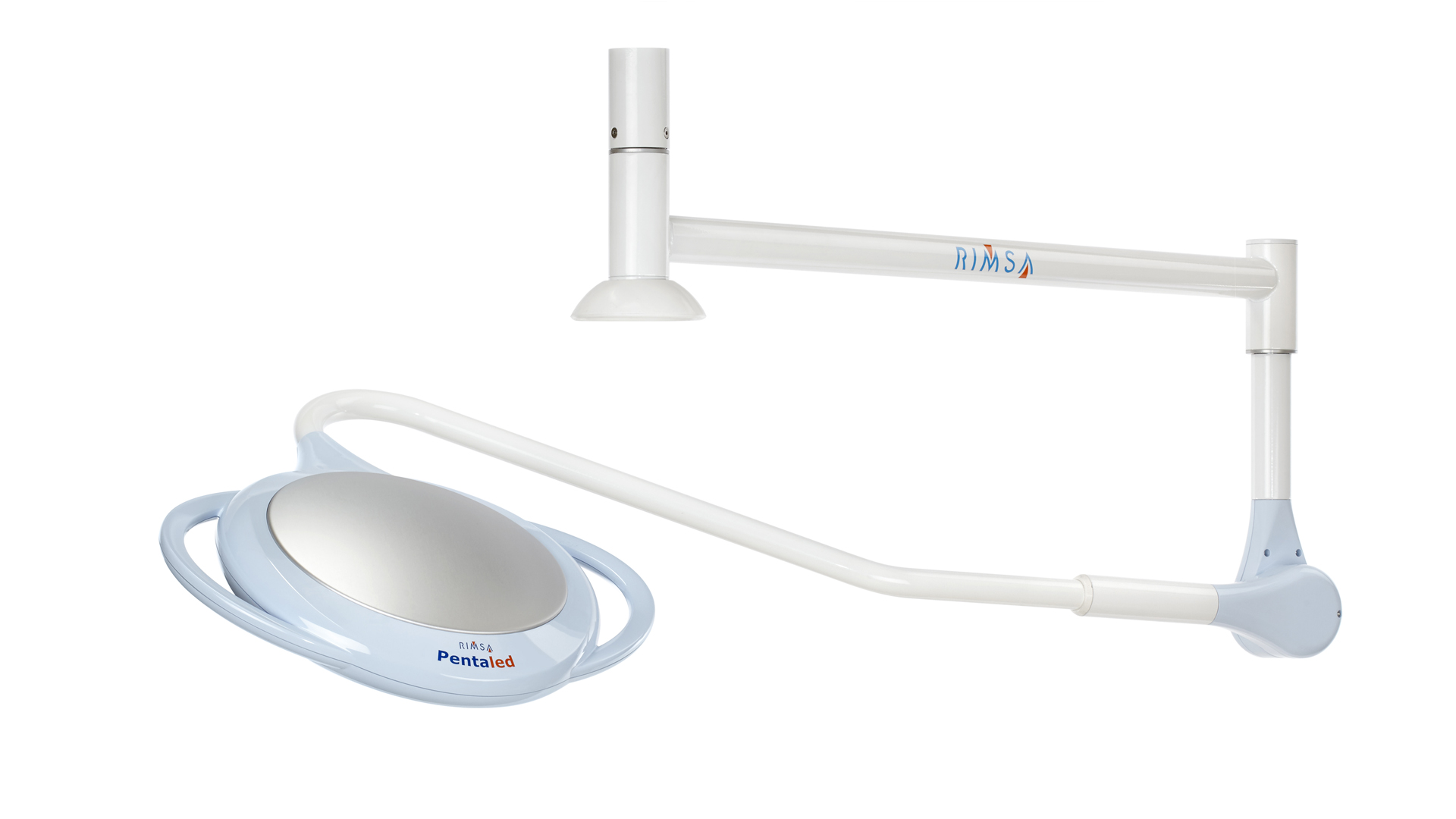

The Pentaled 12 can be easily positioned thanks to its rotation on 4 axes. The structure has a side full-circle handling without any stops. The arm moves vertically, and the reflector can be rotated on the vertical and horizontal axes.

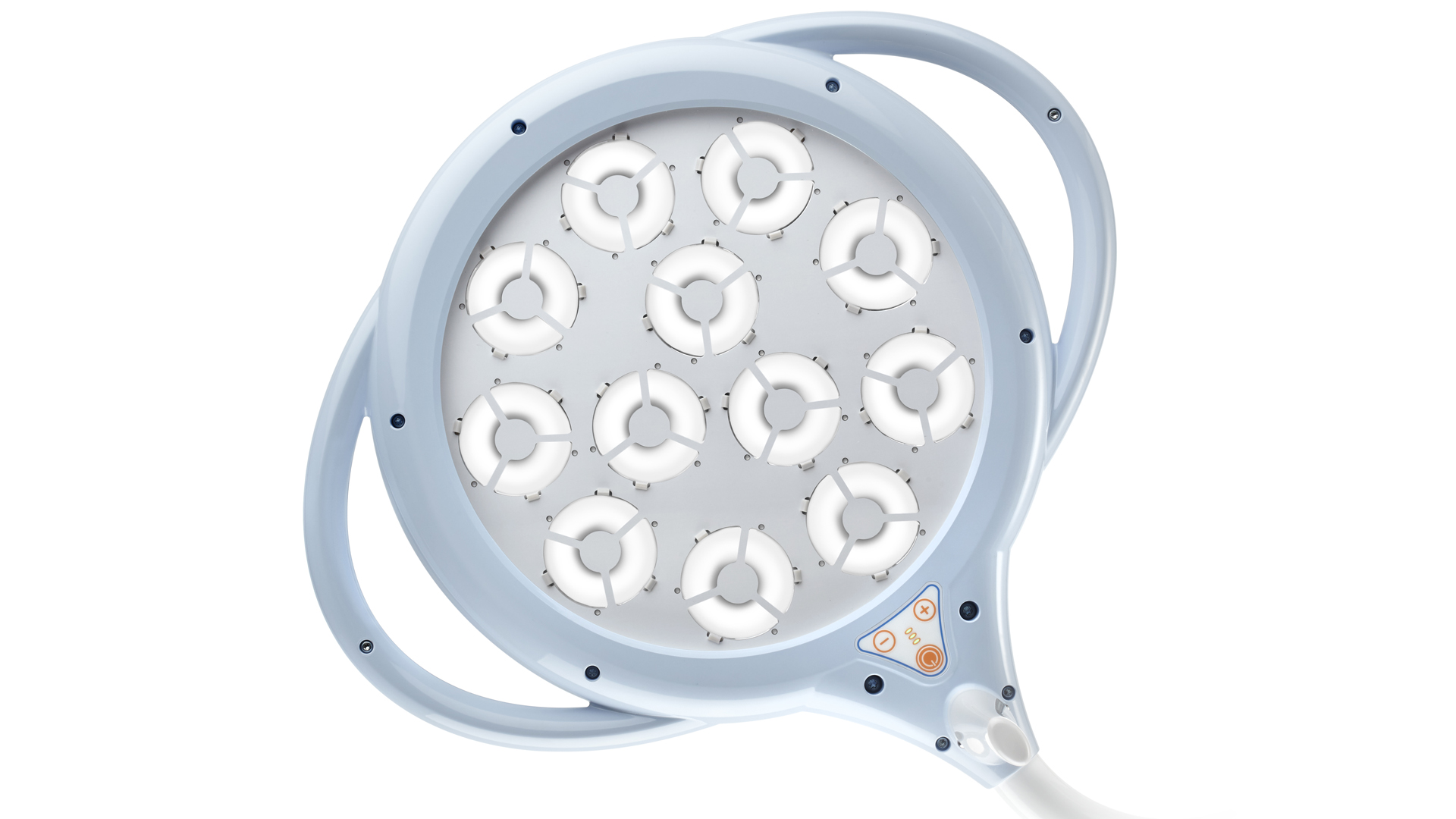

The revolutionary Pentaled 12 is a procedure surgery light with fixed focus technology consisting of 12 elliptical parabolas uniformly reflecting the lights of the LEDs to eliminate any shadow formation from the operating field. Ergonomically designed with no glare for the surgeons. The Pentaled 12 has a low-temperature operation and 360-degree rotation, ensuring that it is suitable for a broad range of surgical procedures.

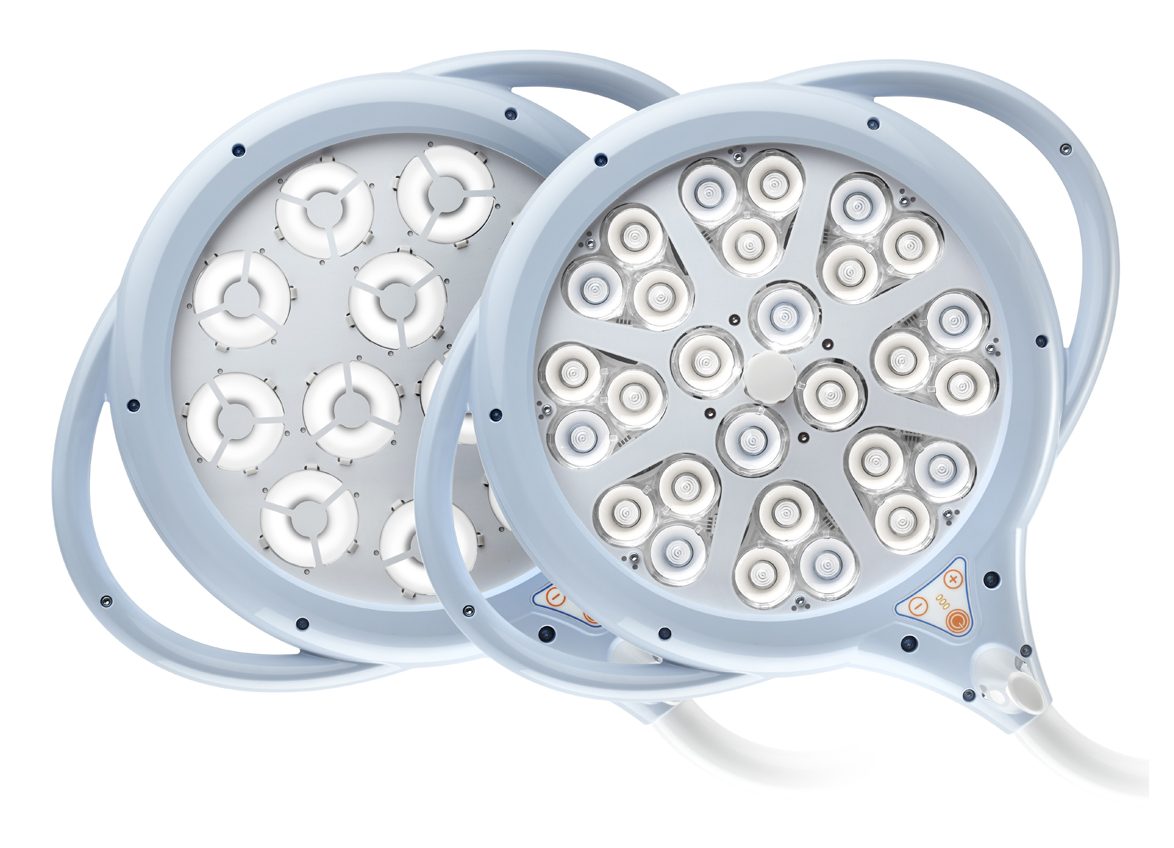

Available as a Pentaled 12 + Pentaled 12 dual light head. This Version is recommended to eliminate the additional shadows in the operating area during micro-surgical operations carried out by a team.
Ideal For
- Day Surgeries
- Pre & Post Operative Areas
- Intensive Care
- Emergency Areas
Downloads
Features
- 100,000 lux at 1m
- adjustable light intensity
- low-temperature operation
- autoclaveable handle
- ergonomic design
- 360 degree continuous movement
- ultra-light structure,
- fixed focus technology
- CRI 92 +
- 50,000H + LED life time
- total power consumption 40W
- IEC 60601-2-41
A Technology
Without Equal
The Operating Room light PentaLED 12 represents a perfect union between technological progress, innovative and ergonomic design and typical Italian quality.

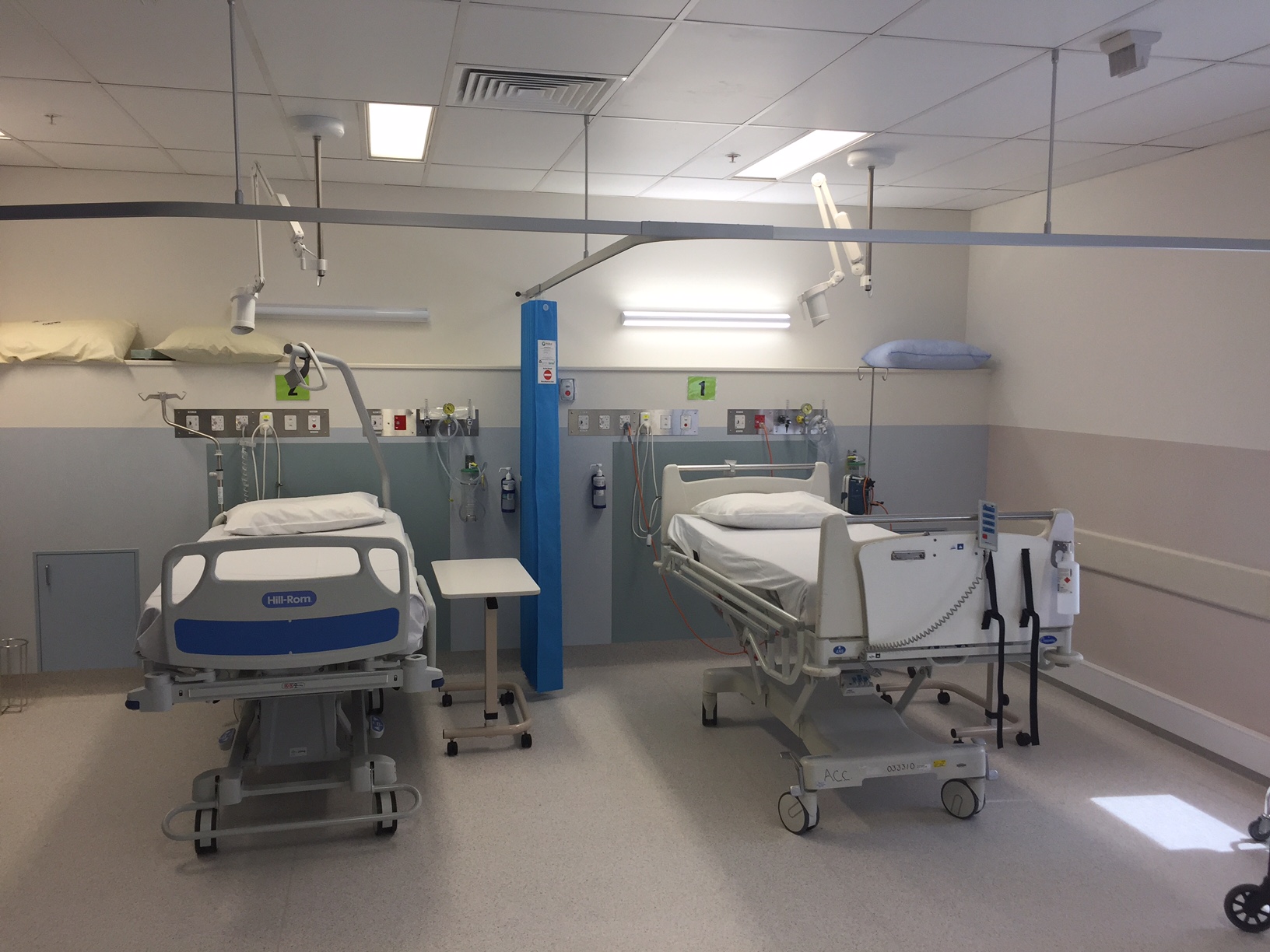

It is suitable for use in clinics, emergency rooms, intensive care units, recovery rooms, pre-operative rooms, and analysis laboratories.

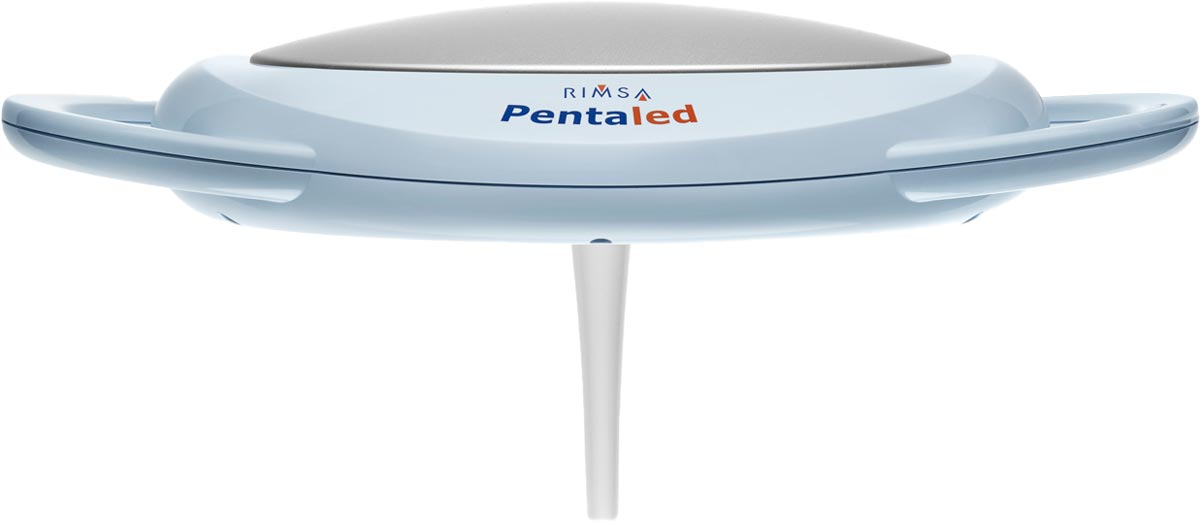

Easy Manoeuvrability
The PentaLED 12, equipped with two comfortable side handles that ensure easy manoeuvrability and reduce the encumbrance.
Max Illumination.
Shadow Elimination.

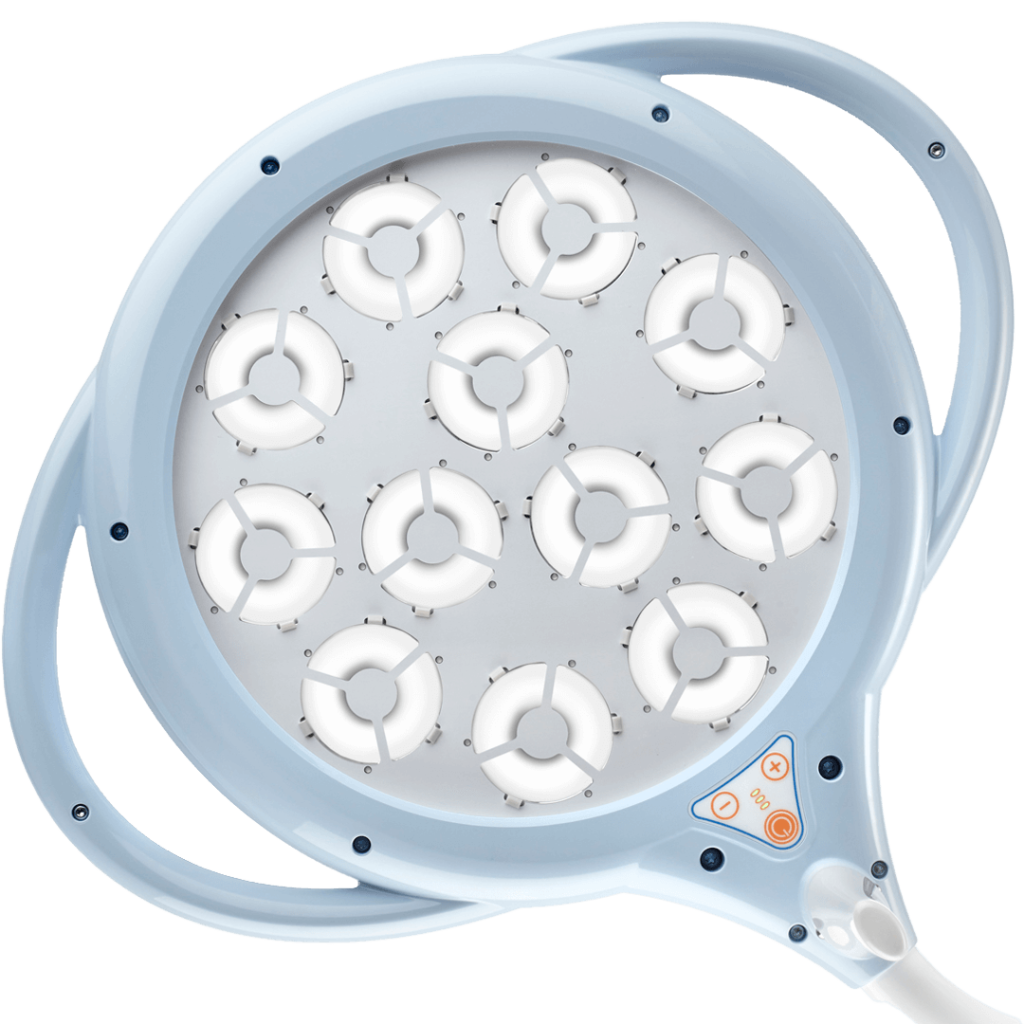

The revolutionary PentaLED 12 is a procedure surgery light with fixed-focus technology, featuring 12 elliptical parabolas, which uniformly reflect the lights of the LEDs to eliminate any shadow formation from the operating field.
Ergonomically designed with no glare for the surgeons. The Pentaled 12 has a low-temperature operation and 360-degree rotation, ensuring that it is suitable for a broad range of surgical procedures.

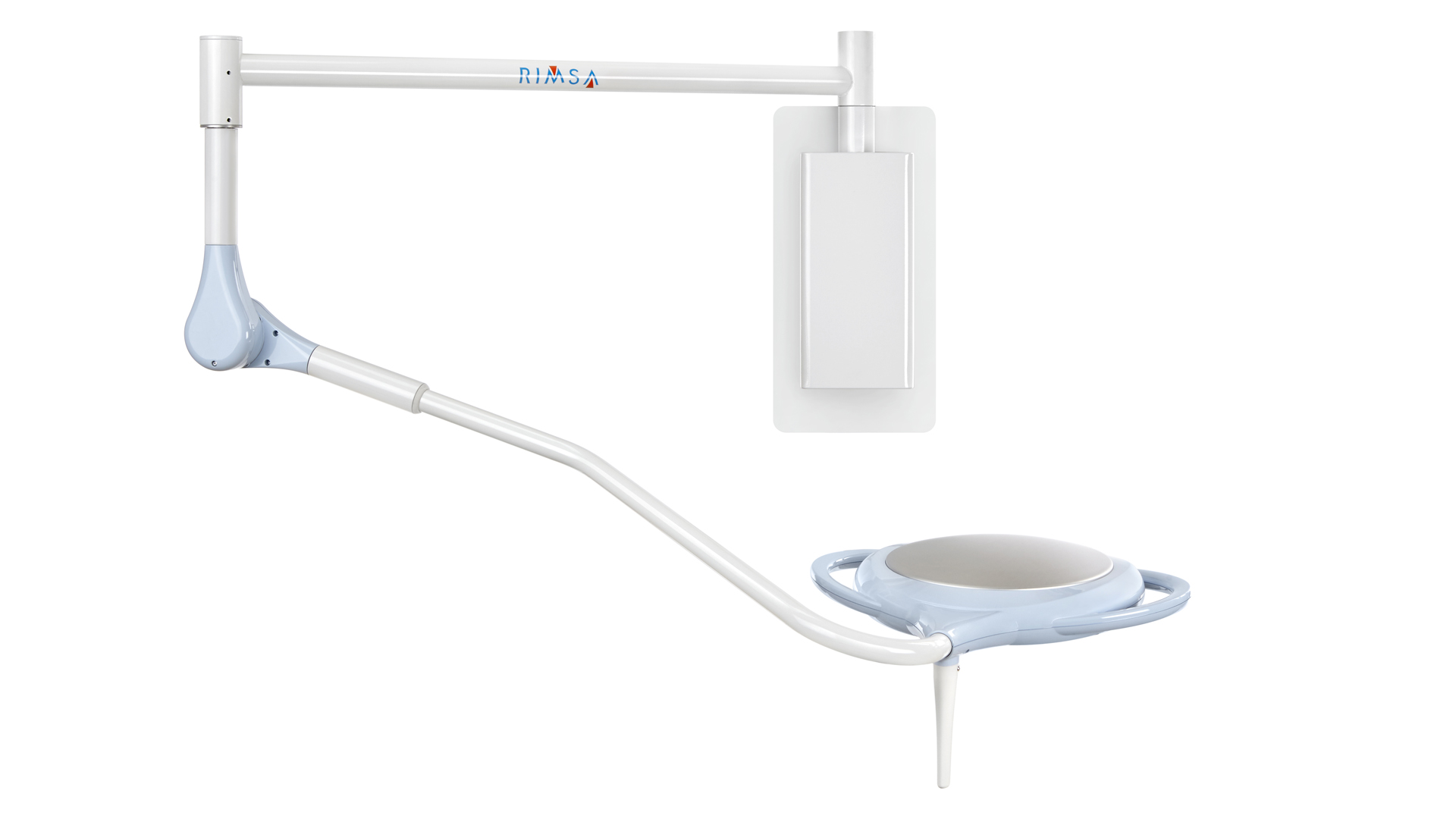

Versatile Mounting and Extension Options
Every hospital and practice is different. We offer a complete range of mounting options, extensions and supports for multiple structural types.
Rest assured we’ve got your requirements covered. Get in touch to find out more.
Technical Specifications
Illuminance at 1 Meter (Ec) _______________________________________________________________________ 100.000 Lux
Lamp Head Diameter _______________________________________________________________________________ 40 cm
Color Temperature ________________________________________________________________________________ 4.500K
Light Field Diameter _______________________________________________________________________________ 160 mm
LED Lifespan ______________________________________________________________________________ > 60.000 hours
Light Intensity Control ____________________________________________________________________________ 20-100%
