MegaPuck Lens
Overview
The MegaPuck Lens integrates the powerful LED engine and various optical and accessory options from our Air series with the easy snap-in installation of our popular Planet LED Puck Snap. The result is a lighting designer’s dream: a compact, high-power light source that offers endless creative possibilities.
Specifications
TECHNICAL
8W/700mA Max (in metallic substrate)
6W/500mA Max (in non-metallic substrate)
3 Step MacAdam Ellipse
L90 B10 >100,000 hours
CRI 80+ (CRI 90+ option)
PERFORMANCE
Up to 800lm (in metallic substrate)
Up to 600lm (in non-metallic substrate)
OPTICS
Polycarbonate / PMMA
DISTRIBUTION
Available in a range of distributions:
circular / oval / decorative / asymmetric
EMITTER OPTIONS
BINNING: 3-step bins, 2700 K—4000 K CCT
Tunable White, RGBW and 17 colour options
MATERIAL
Anodised Aluminium
FINISHES
Anodised Black
Anodised Bright
Powdercoat (RAL colour) optional
AMBIENT OPERATING CONDITIONS
min. -40° / max. +55°
PROTECTION CLASS
IP67 / IK10
ELECTRICAL
• Series: Can be wired in series:
Up to 8 MegaPucks in series from a TCI MAXI JOLLY HV constant current LED driver set to 500mA; or, Up to 6 MegaPucks in series from a TCI MAXI JOLLY HV constant current LED driver set to 700mA
• Parallel: Can be wired in parallel using 24VDC (with 1 x inline DC-DC driver per
MegaPuck)
INSTALLATION
Integrated lighting into flat surfaces 2mm thickness or greater.
• Flush Finish: Ø30mm hole with Ø32mm x 1mm rebate
• Proud Finish (1mm): Ø30mm hole
Please note the rebated finish requires minimum 3mm thickness
CONTROL
1-10 v | DALI | DMX | ZigBee | Casambi | Blue Light Link | basicDim wireless

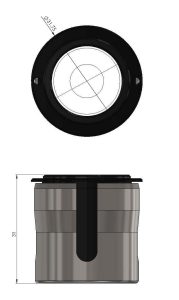

HOLE SIZE
Ø30mm & Ø32mm
Lighting Options
Available in 17 colours and a range of white options. Also available in Tunable White and RGBW
2700K / 3000K / 3500K / 4000K colour temperature
Photo Red / Violet / Royal Blue / Blue / Cyan / Green / Amber / Red-Orange / Red / Phosphor Blue / Phosphor Cyan / Phosphor Lime / Phosphor Amber / Phosphor Red-Orange / Phosphor Red / Phosphor Mint / Phosphor Yellow saturated colours
*For more detailed information, download the product Datasheet
Ideal For
- Handrail Lighting
- Interior Lighting
- Retail
- Display Cases
- Galleries & Museums
