LED Puck Air Catenary
Overview

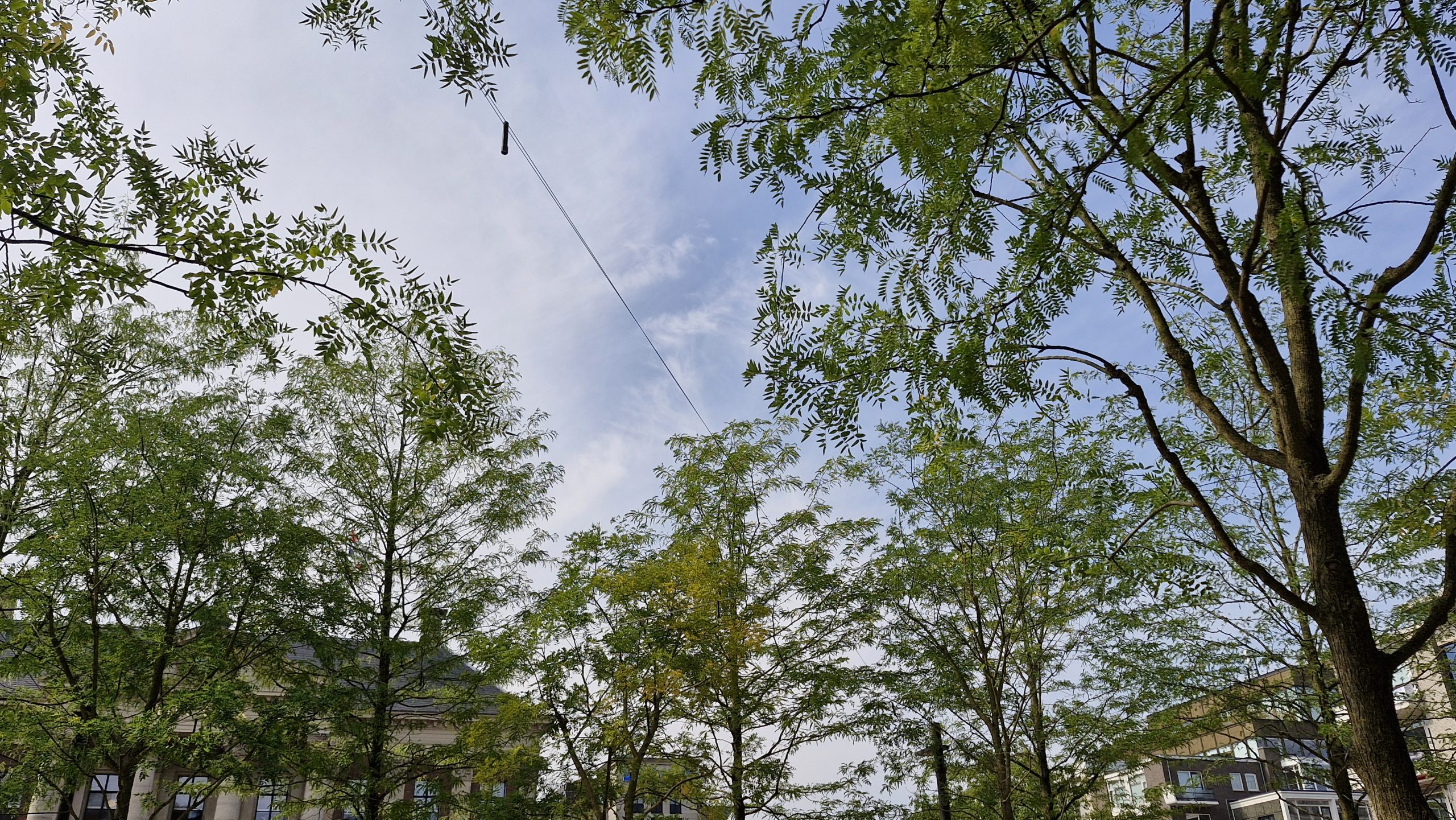

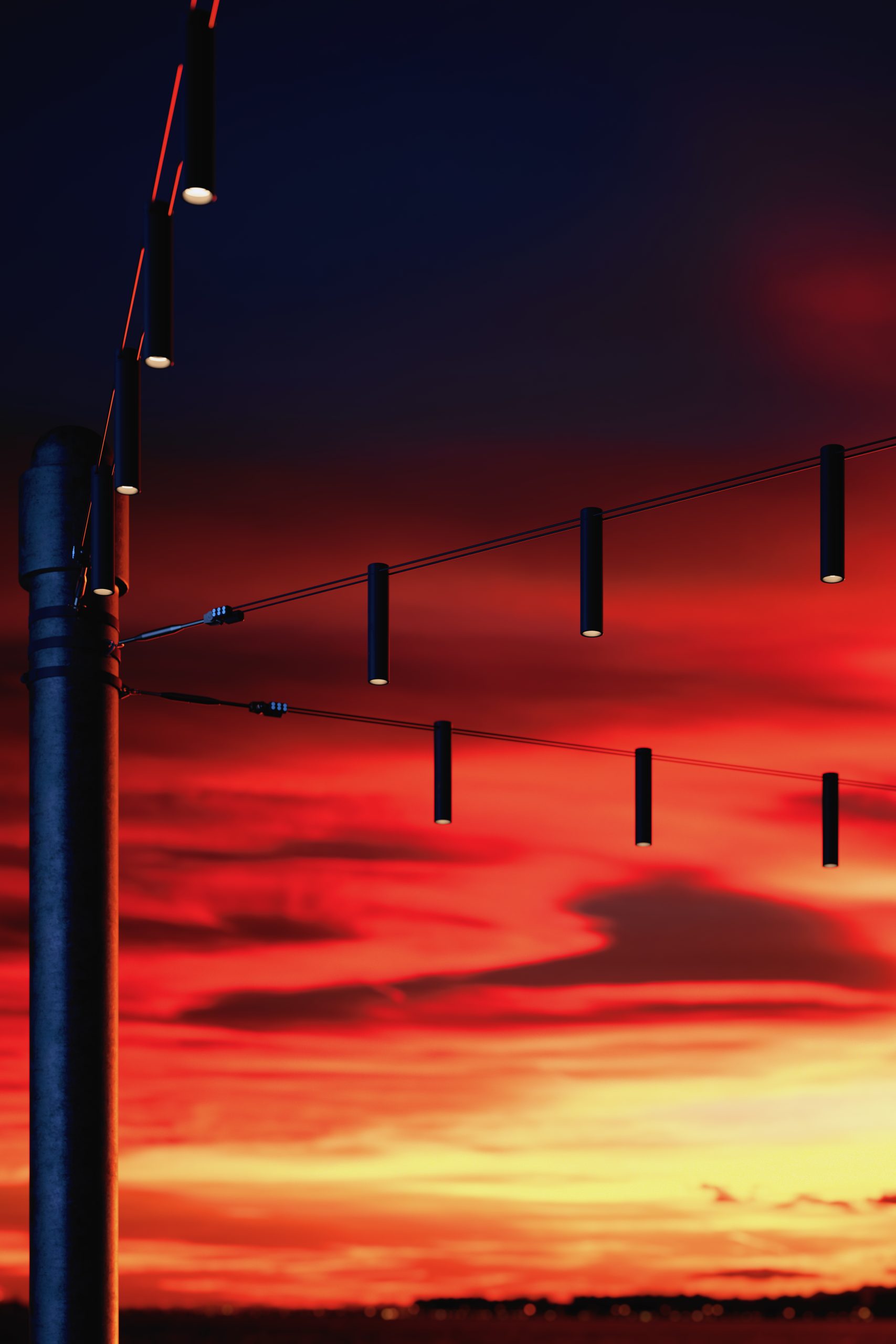

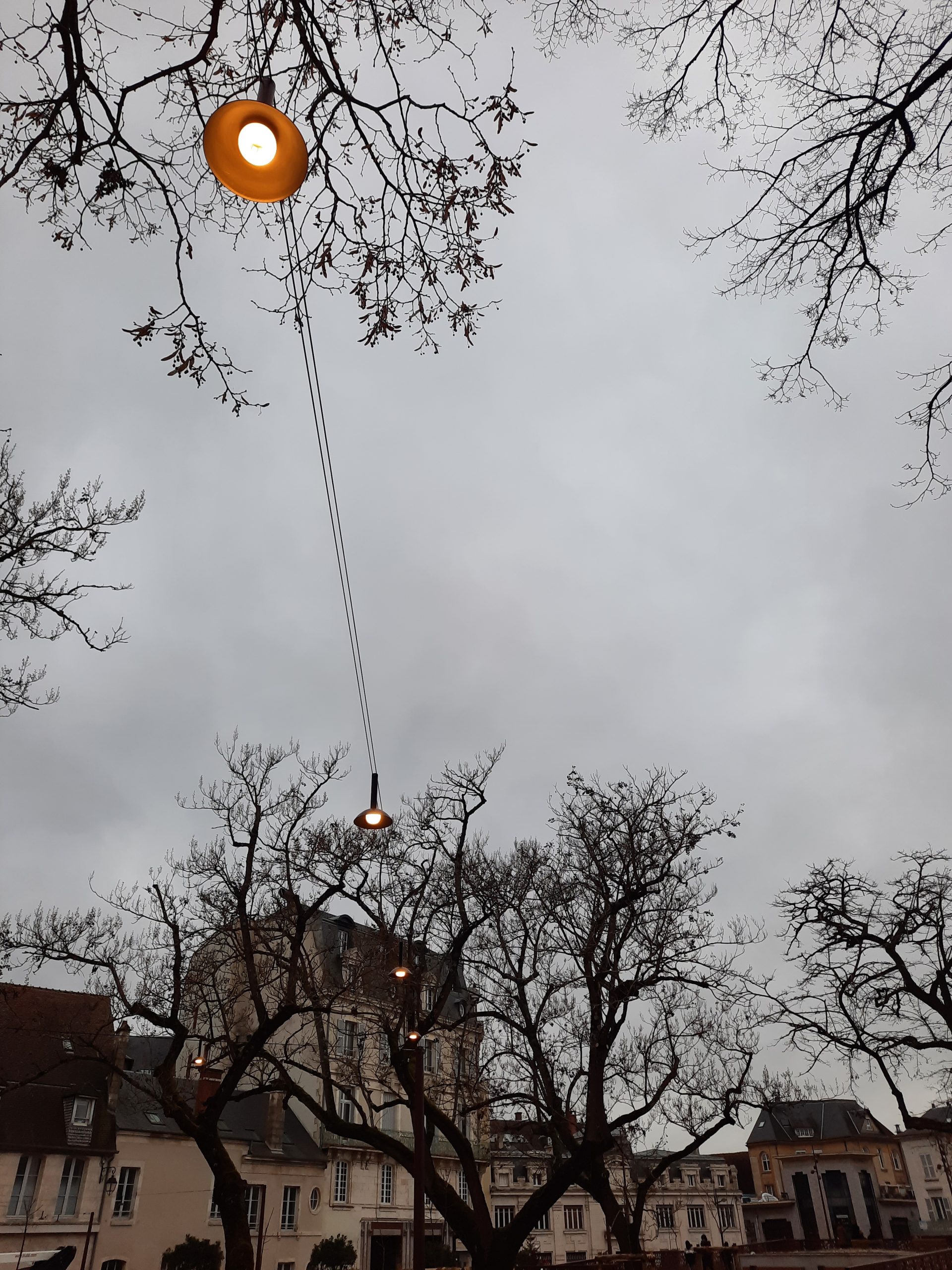

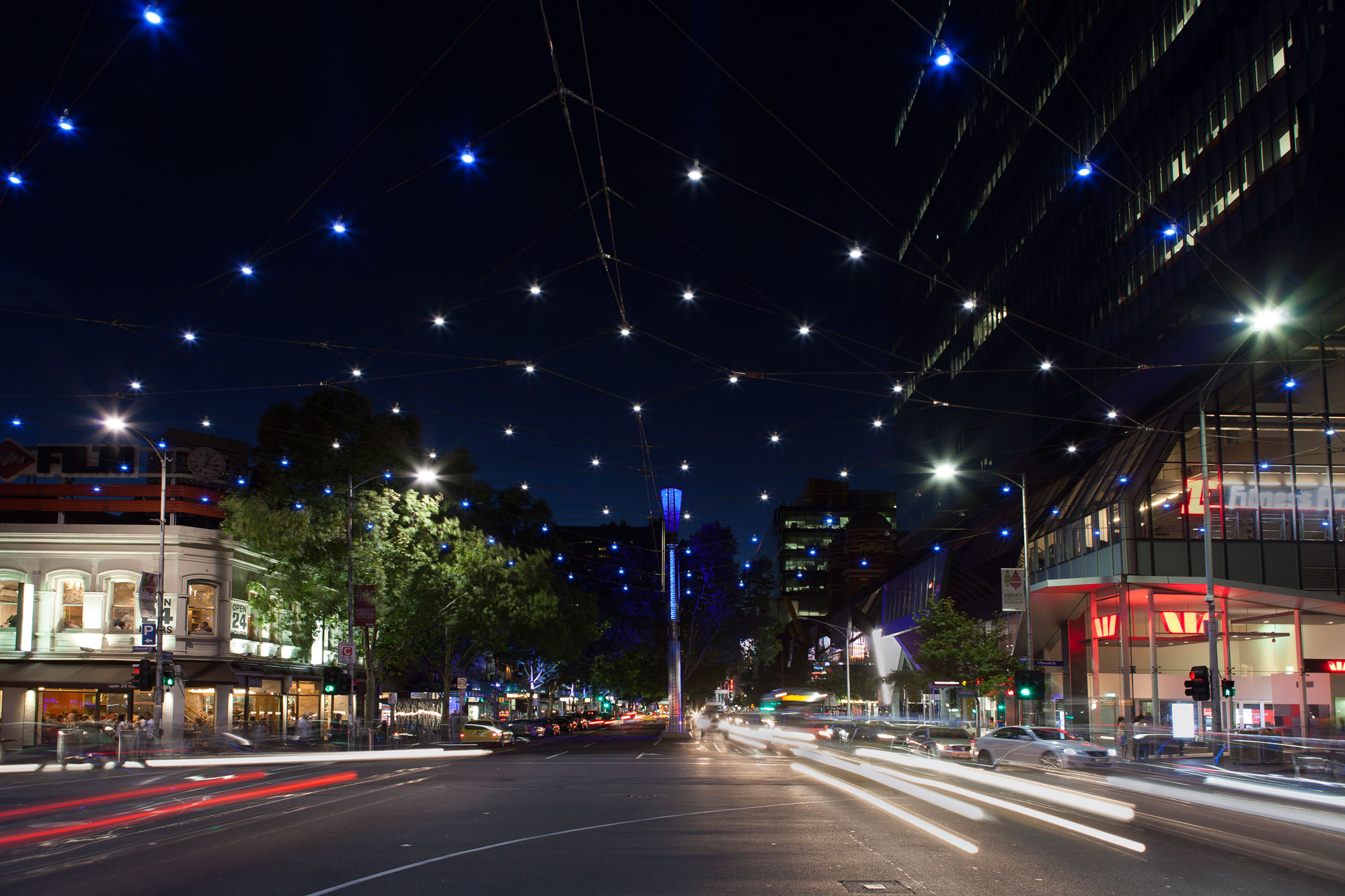

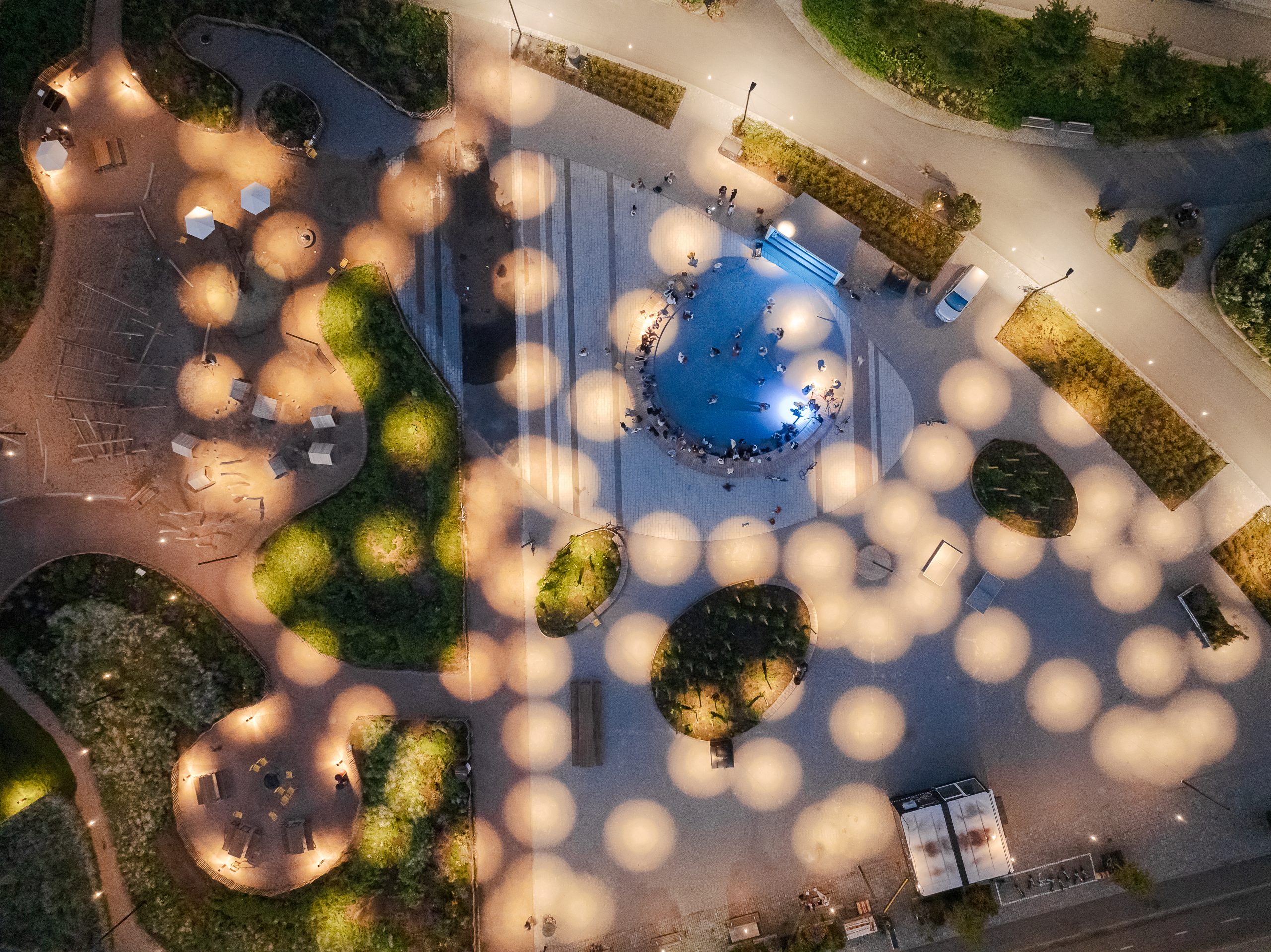

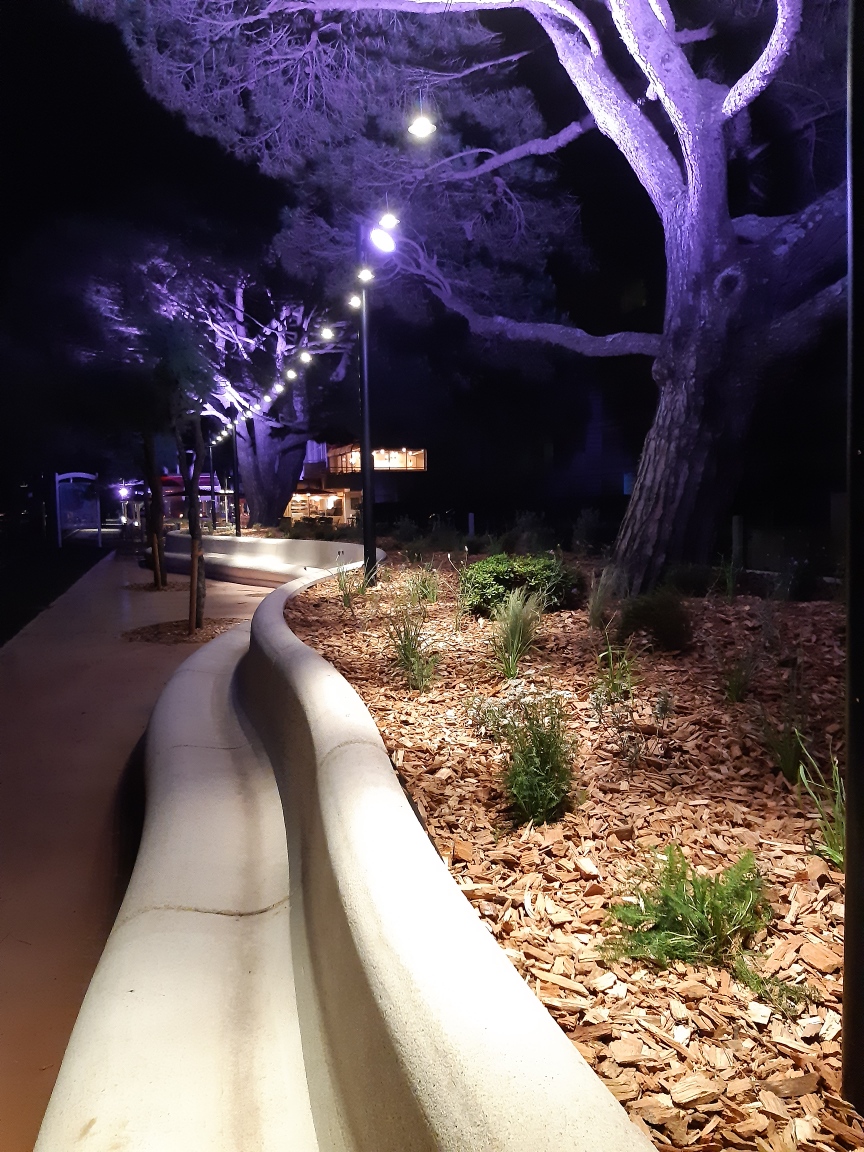

The LED Puck Air is an exceptionally lightweight and versatile catenary lighting system designed for the modern world. Despite its compact size and minimal weight, it delivers high performance, ensuring safe, reliable, and clutter-free installation. The Air system opens up endless design possibilities for outdoor gathering spaces or indoor accent lighting.
Specifications
TECHNICAL
8W
3 Step MacAdam Ellipse
L90 B10 >100,000h
CRI 80+ (CRI 90+ option)
PERFORMANCE
Up to 850lm (8W @ 4000k over 100lm/w)
OPTICS
Polycarbonate / PMMA
DISTRIBUTION
Available in a range of distributions:
Circular, Oval, Decorative, etc.
EMITTER OPTIONS
BINNING: 3-step bins, 2200K-5700K CCT Tunable White, RGBW and 17 colour options
MATERIAL
Marine Grade Aluminium
FINISHES
Anodised Black Matte (Standard)
Lens Ring Colour Options Available
AMBIENT OPERATING CONDITIONS
min. -40° / max. +55°
PROTECTION CLASS
IP67 / IK10
ELECTRICAL
24VDC
INSTALLATION
Ø3mm twin cable suspension (supplied by
manufacturer)
CONTROL
GLOBAL: O-10, DMX, RDM, DALI, Phase,
Casambi;
INDIVIDUAL: DMX, RDM, DALI, Casambi

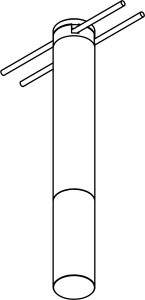

DIMENSIONS & WEIGHT
Ø25mm x Ø150mm (standard body)
~100g per luminaire (standard body)
CABLE SPECIFICATIONS
Single core 1.00mm2 tinned copper with
Kevlar braid
Lighting Options
Available in a range of white options (2200K-5700K CCT), Tunable White, or RGBW. Also available in 17 colours.
2200K / 2700K / 3000K / 3500K / 4000K / 5000 / 5700K /colour temperature
Photo Red / Violet / Royal Blue / Blue / Cyan / Green / Amber / Red-Orange / Red / Phosphor Blue / Phosphor Cyan / Phosphor Lime / Phosphor Amber / Phosphor Red-Orange / Phosphor Red / Phosphor Mint / Phosphor Yellow saturated colours
*For more detailed information, download the product Datasheet

Ideal For
- Outdoor Lighting
- Interior Lighting
- Retail
- Display Cases
- Galleries & Museums
