Product Overview

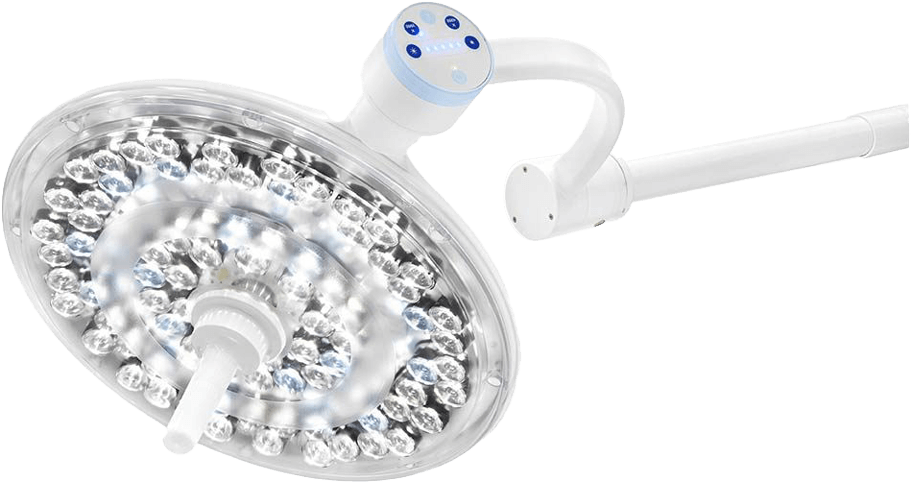

The Setter is a professional surgical light, conceived, designed and manufactured entirely for vet needs.
The Setter’s smooth, easy-to-move arm and extended large operating area minimise the need for light repositioning. Ideal for vets working alone, in small teams, or on larger animals. Furthermore, the Setter’s “always on focus” technology means it’s possible to maintain focus at any distance. This allows the veterinary surgeon to freely move the light within the working range distance whilst automatically maintaining accurate focusing.
Ideal For
- Veterinary Practices
- Zoological Operations
Downloads
Features
- powerful 160,000 lux @ 1 metre
- power consumption 65W
- “Always On” focus technology
- colour temperature 4000-4600K
- large operating zone allows vets to work alone
- adjustable lighting field can be set at any size from 110mm up to 350mm
- on-handle adjustment for easy light field adjustment
- finely balanced, easy-to-move arm with multiple mount options
- complies with IEC60601-2-41 ( Medical electrical equipment – Particular requirements for safety – Surgical luminaires and luminaires for diagnosis)
- prompt supply of spare parts, technical service and support
- 3-year warranty
- Powerful and cool-to-touch LED light
- High visibility: CRI 95+; and 4000K
- Cyanosis Compliant
- 40.000-50.000 lux @ 1m available
- Low power consumption at only 14 Watts Total
- Low-profile, easy-clean head with
- ON/OFF and dimming control, plus twist to release for easy removal and maintenance
- Affordable, retrofit kit option* for easy change to LED
- Durable all metal construction
Adapted for Zoological Use
Setter is the first surgical lamp developed specifically for veterinary use. Usually, traditional surgical lamps are adapted for zoological use, but in this case, Setter is the result of analysis and feedback from the veterinary sector.
Aware of the significant differences from the human sector regarding both design and use, the Rimsa R&D department has developed this innovative light. The Setter model is the only light studied, designed and produced for the veterinary needs.
Easy to Move,
Less Repositioning
Setter’s smooth, easy-to-move arm and extended large operating area minimise the need for light repositioning, allowing the vet to focus on the operation.
The larger light diameter gives the surgeon a wider light field, allowing vets to work alone, in small teams, or on larger animals. This diameter is adjusted by a capacitive sensor placed on the sterilizable handle, in order to guarantee the surgeon full control of the light.
Always on Focus
The Setter’s “always on focus” technology means it’s possible to have a focused light at any distance. This allows the veterinary surgeon to freely move the light within the working range distance whilst automatically maintaining accurate focusing.

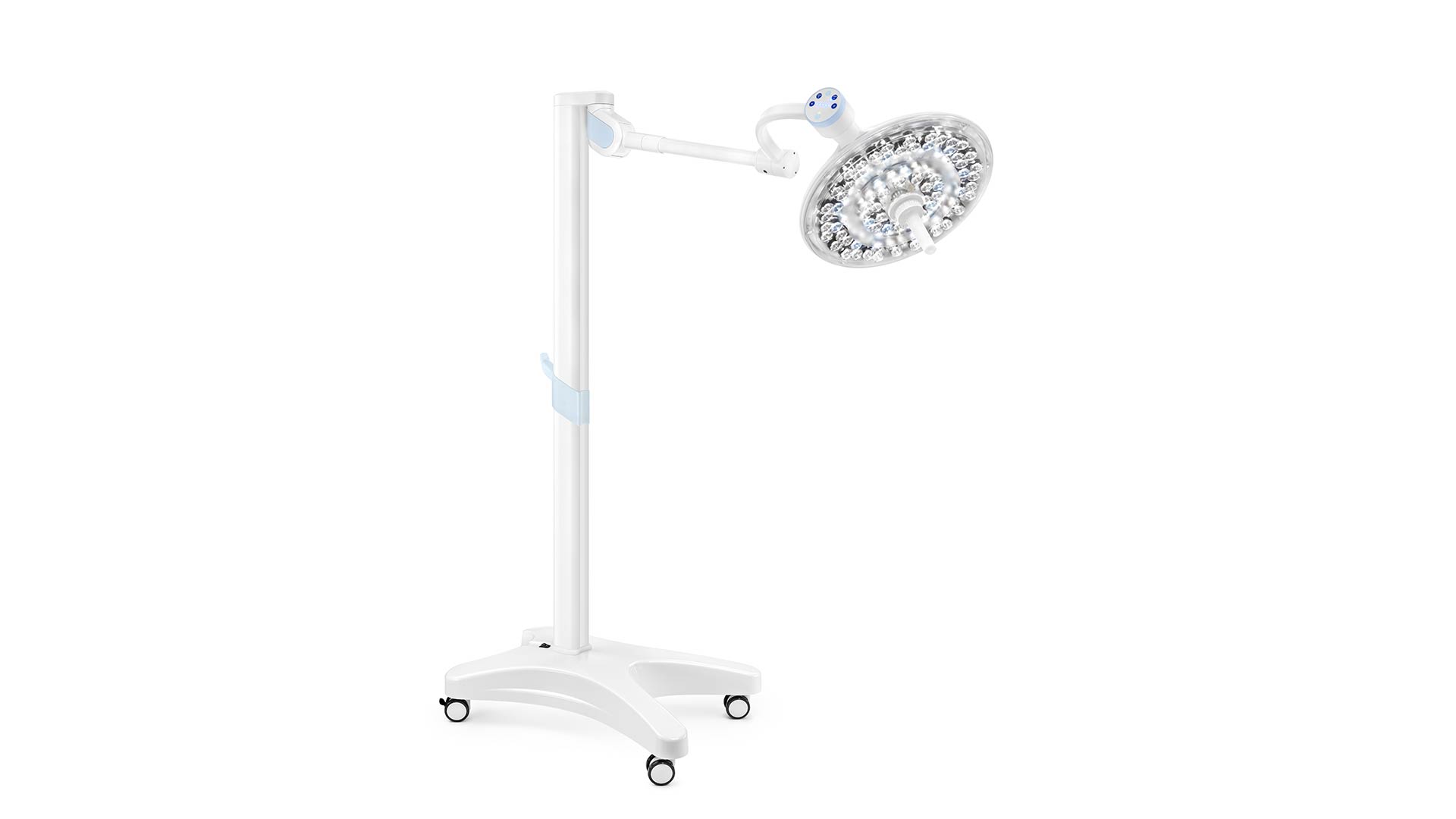

Versatile Mounting and Extension Options
Every hospital and practice is different. We offer a complete range of mounting options, extensions and supports for multiple structural types.
Rest assured, we’ve got your requirements covered. Get in touch to find out more.
Technical Specifications
Illuminance at 1 Meter (Ec) _______________________________________________________________________ 160.000 Lux
Lamp Head Diameter _______________________________________________________________________________ 52 cm
Color Temperature ___________________________________________________________________________ 4.500-5.000K
Light Field Diameter ___________________________________________________________________________ 140-230 mm
LED Lifespan ______________________________________________________________________________ > 60.000 hours
Light Intensity Control ____________________________________________________________________________ 5-100%
